zStack adapters (Texas Instruments)
Configuration
serial:
adapter: zstack
Other supported settings are: disable_led, adapter_concurrent and transmit_power (docs).
Firmware flashing (CC2652/CC1352)
Adapters based on CC1352 or CC2652 chips can be flashed by putting them in the BSL (bootloader) mode. See the "Vendor flashing instructions" of your adapter below on how to do this. Once you've successfully put your adapter into BSL mode, use any of the tools below to flash it.
UI tools
- SMLIGHT firmware updater (recommended)
- Allows for flashing your adapter from the browser, eliminating the need for any software installation.
- Texas Instruments FLASH PROGRAMMER 2 (Windows only) (can't find your device? read below!)
- ZigStar GW Multi tool (multi platform GUI tool)
- SMLIGHT firmware updater (recommended)
CLI tools (multi platform Python based command line tools)
- CC2538-BSL (instructions)
- llama-bsl (fork of cc2538-bsl with added features)
Home Assistant addon
- TubesZB TI CC2652 FW Flasher
- ZigStar TI CC2652 FW Flasher (fork of TubesZB with added features)
Some Ethernet adapters support flashing Zigbee firmware over their own web-interface. In this case you do not need any external software and hardware. Just go to the webinterface and press "Update Zigbee firmware". Please refer to the manual of your particular Zigbee adapter for this functionality. For example the universal XZG Firmware that fits any CC1352/CC2652 based gateway (video)
Recommended (CC2652/CC1352)
USB
Electrolama zig-a-zig-ah! (zzh!)
USB connected adapter with external antenna based on CC2652R chip
Slaesh's CC2652RB stick
USB connected adapter with external antenna based on CC2652RB chip
Tube's CC2652P2 USB Coordinator
Open source hardware CC2652P based USB connected adapter with external antenna and USB extension cable
Egony Stick V4
Powerful CC2652P Zigbee USB dongle and Raspberry Pi GPIO module. Available in Ebyte (left picture) and RFSTAR (right picture) version.
- Coordinator firmware: Ebyte RFSTAR
- Router firmware: Ebyte RFSTAR
- Vendor flashing instructions
- Description: Ebyte RFSTAR
- Contact

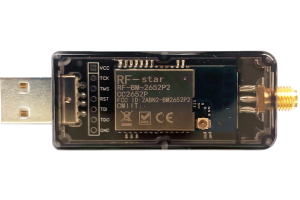

ZigStar Stick v4
Powerful Open source dongle with external antenna based on CC2652P
CircuitSetup's CC2652P2 USB Coordinator
CC2652P based USB connected adapter pre-programmed with Z-Stack
SMLIGHT CC2652P Zigbee USB Adapter SLZB-02
CC2652P factory-made Zigbee USB coordinator with external 6dB antenna and worldwide delivery
- Coordinator firmware
- Router firmware
- Description
- Vendor flashing instructions
- Buy: Official store, Tindie
SONOFF Zigbee 3.0 USB Dongle Plus ZBDongle-P
CC2652P based USB connected adapter pre-programmed and with enclosure.
Note before buying that ITead slightly confusingly now sells both the Dongle Plus "ZBDongle-P" (based on CC2652P), and the Dongle Plus V2 "ZBDongle-E" (based on EFR32MG21). This section is about the "ZBDongle-P", for "ZBDongle-E" see below.
- Coordinator firmware
- Router firmware
- Vendor flashing instructions (PDF version and required python script)
- Buy
Vision CC2652 dongle
Adapter or small development board based on CC2652R (VS201) or CC2652P (VS202)
Coordinator firmware: VS201 VS202
Router firmware: VS201 VS202
JetHome JetStick Z2/ZB6UX CC2652P1
Powerful CC2652P1 factory-made Zigbee USB dongle with external antenna.
SMLIGHT SLZB-07p7 Zigbee USB CC2652P7 adapter
Powerful, tiny modern design, developed for Zigbee2MQTT, pre-flashed and ready to use Zigbee adapter. Autodiscovery in Home Assistant. AutoBSL (remote update) enabled.
Rich packing that includes:
| Package includes | SLZB-07p7 adapter | +3dB antenna 360° | QR-manual |
|---|---|---|---|
| Quantity: | 1 pcs | 1 pcs | 1 pcs |
| Image |  |  |  |
Remote Zigbee update, autodiscovery, LEDs, and flashing pins. It fits home and business use.
- Zigbee firmware:
--Coordinator firmware. - Product page.
- Buy: Official Store - Worldwide, Aliexpress - Worldwide.
Local fast delivery: Australia, France, Poland.
| Product picture 1 | Product picture 2 | Product picture 3 |
|---|---|---|
 |  |  |
Network (TCP)
Tube's Zigbee Gateways (CC2652P2 variant)
Open source hardware CC2652P and ESP32 based Zigbee to Ethernet Coordinator (left picture), POE variant is also available (right picture)
cyijun OpenZ3Gateway
An open source Zstack3 gateway powered by ESP8266 and CC2652P modules. One costs less than 60 CNY in China.
XGG 52PZ2MGateway
An open source Zstack3 gateway powered by ESP8266 and CC2652P modules. One costs less than 60 CNY in China.
SMLIGHT Zigbee LAN Adapter CC2652P Model SLZB-05
Pre-flashed ready-to-use Zigbee LAN CC2652P Adapter, factory made, metal case, 6dB antenna, worldwide delivery, Zigbee firmware can be manually updated via USB in 5 easy steps, customer/tech support, fast order processing.
Hybrid (USB + Network)
Gio-dot Z-Bee Duo with CC2652P
4 in 1 zigbee adapter: USB Stick, WiFi, LAN, PI Zero Hat, with external antenna and 3D printed case.

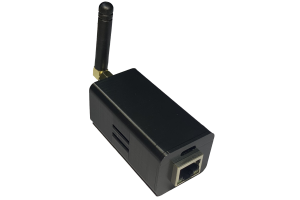

ZigStar LAN Coordinator
Powerful Open source LAN Coordinator with external antenna on CC2652P

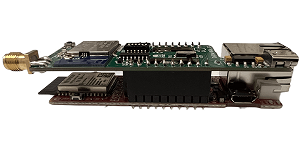

ZigStar PoE Coordinator
Open source PoE af Coordinator with external antenna on CC2652P
SMLIGHT SLZB-06 Zigbee+Matter/Thread+Bluetooth Ethernet USB POE WiFi LAN adapter
Powerful, tiny modern design, developed for Zigbee2MQTT, PoE supported, pre-flashed and ready to use Zigbee adapter.
It supports Zigbee 3.0, experimental Matter-over-Thread and Bluetooth. Connections: Ethernet (+PoE), LAN, USB, and WiFi. Rich packing that includes:
| Package includes | SLZB-06 adapter | +5dB antenna 360° | Adhesive tape | Screws | Screwdriver | MicroUSB-Type-C | Screw-fix helper |
|---|---|---|---|---|---|---|---|
| Quantity: | 1 pcs | 1 pcs | 2 pcs | 2 pcs | 1 pcs | 1 pcs | 1 pcs |
| Image |  |  |  |  |  |  |  |
Remote update (Zigbee and Core), modern UI firmware. Optoelectronic isolation for Ethernet, LEDs and physical button for interacting with users. It fits home and business use.
- Zigbee firmware:

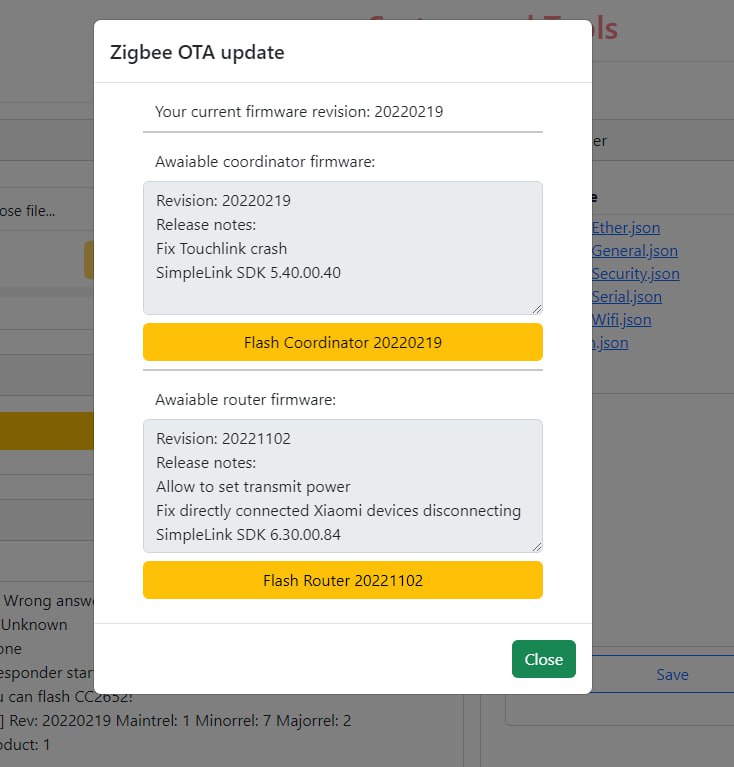

-- Zigbee chip update process OTA for automatic updates. -- Coordinator firmware - Core firmware:
-- Functionality and screenshots
-- Video review 1, Video review 2 - Manual
- Product page
- Buy: Official Store - Worldwide, Aliexpress - Worldwide, Tindie - Worldwide.
Local fast delivery: AU, AT, BE, CH, EE, FR, DE, LT, LV, PL, TH, UK, US official, US Amazon.
| Product picture | Interface screenshot | Youtube review |
|---|---|---|
 |  |  |
ZigStar UZG-01 - Universal ZigBee Gateway
Open source PoE af Coordinator with external antenna on CC2652P
- ESP32 Firmware Repository with latest firmware
- Coordinator firmware
- Router firmware
- Official site with documentation
- Vendor flashing instructions
- Buy: Official Store,Tindie,Elecrow

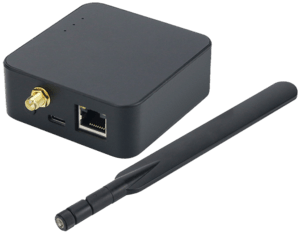

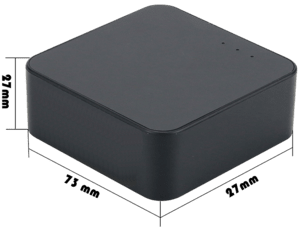

| ZigStar UZG-01 | Dimensions |
|---|---|
 |  |
SMLIGHT SLZB-06p7 Zigbee Ethernet USB POE WiFi LAN adapter
Powerful, tiny modern design, developed for Zigbee2MQTT, PoE supported, pre-flashed and ready to use Zigbee adapter.
It supports Zigbee 3.0, Ethernet, LAN, USB, and WiFi connections. Rich packing that includes:
| Package includes | SLZB-06p7 adapter | +5dB antenna 360° | Adhesive tape | Screws | Screwdriver | MicroUSB-Type-C | Screw-fix helper |
|---|---|---|---|---|---|---|---|
| Quantity: | 1 pcs | 1 pcs | 2 pcs | 2 pcs | 1 pcs | 1 pcs | 1 pcs |
| Image |  | | | | | | |
Remote update (Zigbee and Core), modern UI firmware. Optoelectronic isolation for Ethernet, LEDs and physical button for interacting with users. It fits home and business use.
- Zigbee firmware:
-- Zigbee chip update process OTA for automatic updates.
-- Coordinator firmware - Core firmware:
-- Functionality and screenshots
-- Video review - Manual
- Product page
- Buy: Official Store - Worldwide, Aliexpress - Worldwide.
Local fast delivery: AU, AT, BE, DE, PL.
| Product picture | Interface screenshot | Youtube videoreview |
|---|---|---|
 |  | |

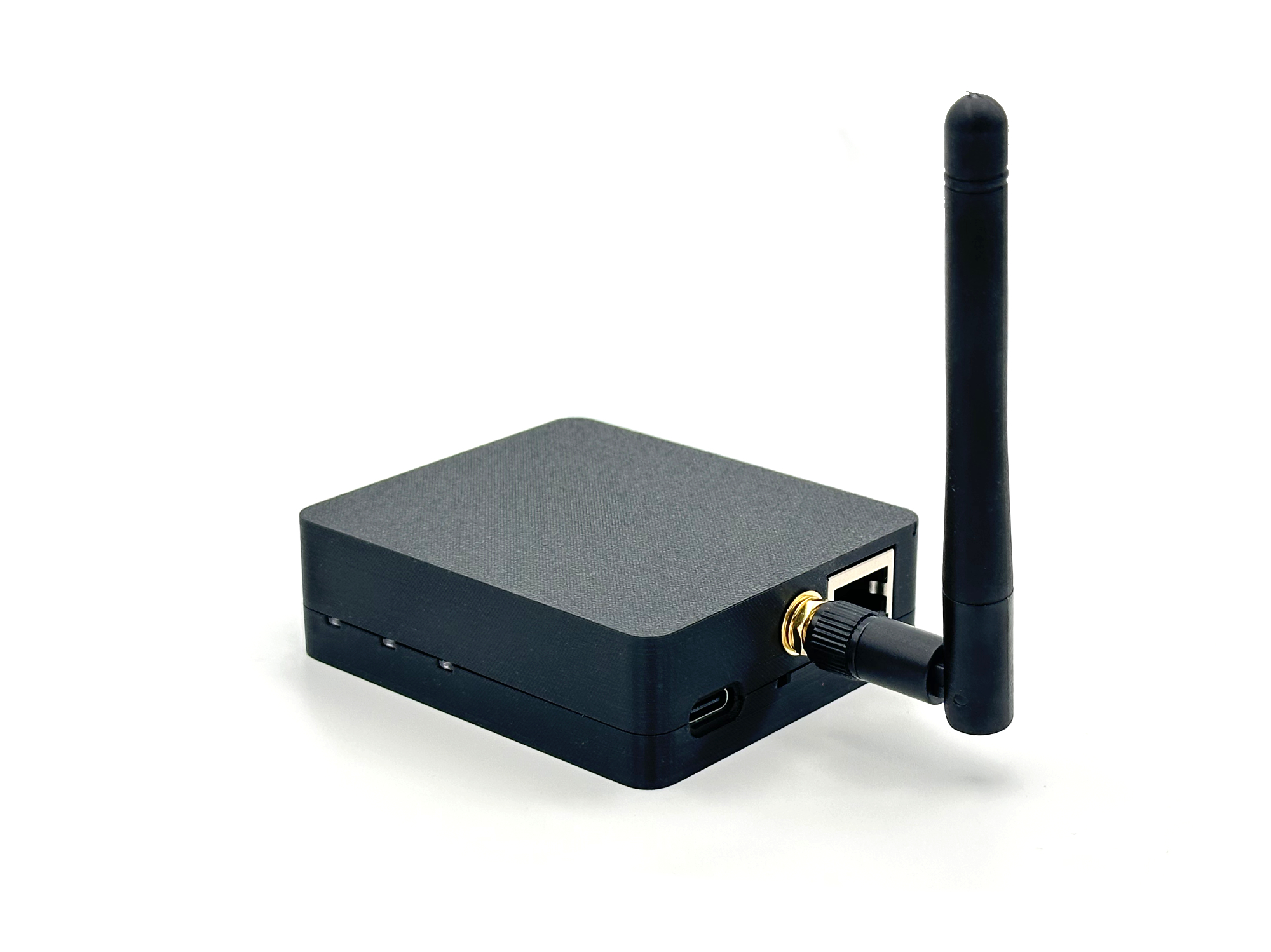

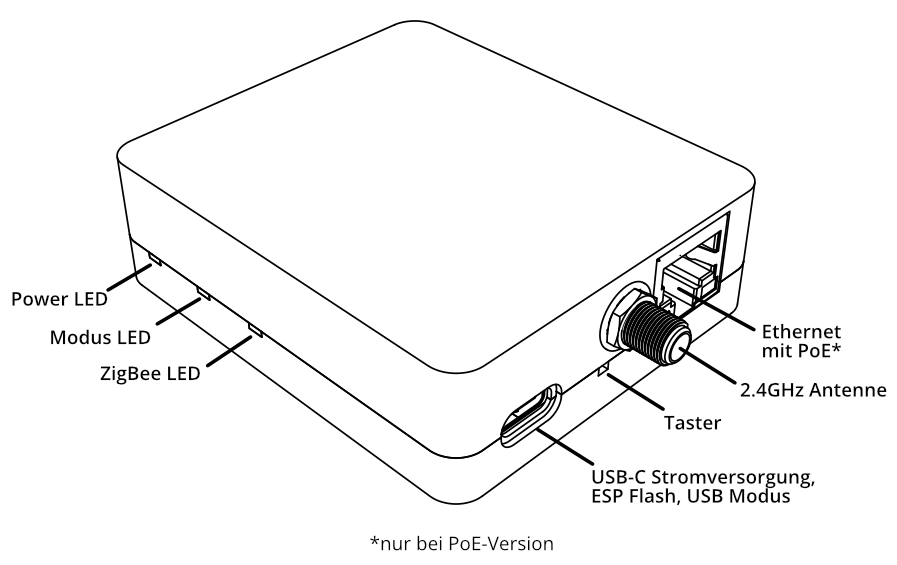

cod.m Zigbee Coordinator CC2652P7 (CZC-1.0)
cod.m ZigBee Coordinator (CZC) - Network (LAN/Wi-Fi) with Power over Ethernet (optional) or USB-C.
Features:
- CC2652P7 Texas Instruments multiprotocol 2.4GHz radio module
- ZigBee 3.x, Z-Stack firmware (Koenkk)
- LAN, WLAN or USB mode PoE (802.3af) or USB-C power, <1W power consumption
- ESP32 open source firmware (cod.m UZG Fork)
- ZigBee firmware update via network and in future via web interface
- ESP32 firmware update via web interface or USB-C (Auto-BSL)
- 3D-printed housing (CC-BY-NC-SA)
- Made in Germany, CE, RoHS, WEEE
Links:
Hub
JetHome JetHub D1+
Controller with ZigBee module onboard with external antenna.
JetHub D1+ is DIN-rail home automation controller with Ubuntu/Debian OS and a lot of peripherals.
Based on TI CC2652P1.
Custom
cod.m Zigbee CC2652P RPi Module
Raspberry Pi GPIO module with CC2652P and integrated power amplifier (+20dBm)

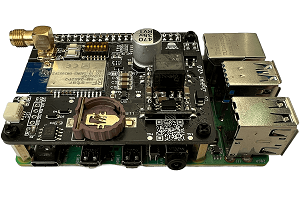

ZigStar ZigiHAT PoE
Powerful Open source Pi HAT based on CC2652P with PoE,RTC onboard
Texas Instruments LAUNCHXL-CC1352P-2
USB connected development kit, based on CC1352P chip
These devices have two serial devices built in. Make sure you put the right serial device in the configuration or use auto detect (completely remove the serial section from configuration.yaml) if you only have one Texas Instruments CC device connected to your system.
An external antenna can be connected which could increase range: requires resoldering a tiny capacitor (moving C14 to C24)
Texas Instruments LAUNCHXL-CC26X2R1
USB connected development kit, based on CC2652R chip
These devices have two serial devices built in. Make sure you put the right serial device in the configuration or use auto detect (completely remove the serial section from configuration.yaml) if you only have one Texas Instruments CC device connected to your system.
An external antenna can be connected which could increase range: requires resoldering a tiny capacitor
Texas Instruments LP-CC2652R7
USB connected development kit, based on CC2652R7 chip
These devices have two serial devices built in. Make sure you put the right serial device in the configuration or use auto detect (completely remove the serial section from configuration.yaml) if you only have one Texas Instruments CC device connected to your system.
Texas Instruments LP-CC1352P7
USB connected development kit, based on CC1352P7 chip
These devices have two serial devices built in. Make sure you put the right serial device in the configuration or use auto detect (completely remove the serial section from configuration.yaml) if you only have one Texas Instruments CC device connected to your system.
Not recommended (CC2530/CC2531/CC2538)
USB
Texas Instruments CC2531
USB connected Zigbee adapter with PCB antenna
Warning 1: requires additional hardware to flash (CC debugger + download cable)
Warning 2: might not be powerful enough to handle networks of 20+ devices
Warning 3: this adapter has bad range
Serial
Vision CC2538+CC2592 Dongle(VS203)
Adapter or small development board based on CC2538 and CC2592 chip
Texas Instruments CC2530
Serial connected adapter with external antenna optionally with CC2591 or CC2592 RF frontend
Warning 1: requires additional hardware to flash (CC debugger + download cable)
Warning 2: might not be powerful enough to handle networks of 20+ devices
Texas Instruments CC2538
Serial connected adapter with CC2592 RF Amplifier
Network
XGG gateway
An open source zigbee gateway powered by ESP8266 and CC2538+CC2592PA (XGG 38PZ2MGateway) or CC2530 (XGG 30Z2MGateway)
Coordinator firmware: XGG 38PZ2MGateway XGG 30Z2MGateway
Custom
Texas Instruments CC2538 HAT
Raspberry pinout compatible HAT with CC2538 and optional external antenna
