Xiaomi LLKZMK11LM #

Model	LLKZMK11LM
Vendor	Xiaomi

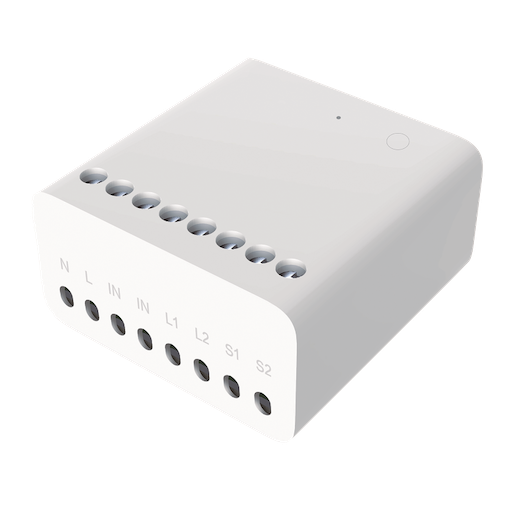

Description	Aqara wireless relay controller
Exposes	power, energy, temperature, voltage, switch (state), interlock, linkquality

Notes #

Interlock #

This option allows to inter connect the relays which will make sure that only one relay is on at a time. To do this publish to zigbee2mqtt/FRIENDLY_NAME/set payload {"interlock": true} or {"interlock": false}. By default this option is false.

Device type specific configuration #

How to use device type specific configuration

• temperature_precision: Controls the precision of temperature values, e.g. 0, 1 or 2; default 2. To control the precision based on the temperature value set it to e.g. {30: 0, 10: 1}, when temperature >= 30 precision will be 0, when temperature >= 10 precision will be 1. Precision will take into affect with next report of device.
• temperature_calibration: Allows to manually calibrate temperature values, e.g. 1 would add 1 degree to the temperature reported by the device; default 0. Calibration will take into affect with next report of device.

Exposes #

Power (numeric) #

Instantaneous measured power. Value can be found in the published state on the power property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power": ""}. It’s not possible to write (/set) this value. The unit of this value is W.

Energy (numeric) #

Sum of consumed energy. Value can be found in the published state on the energy property. It’s not possible to read (/get) or write (/set) this value. The unit of this value is kWh.

Temperature (numeric) #

Measured temperature value. Value can be found in the published state on the temperature property. It’s not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Voltage (numeric) #

Measured electrical potential value. Value can be found in the published state on the voltage property. It’s not possible to read (/get) or write (/set) this value. The unit of this value is V.

Switch (l1 endpoint) #

The current state of this switch is in the published state under the state_l1 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l1": "ON"}, {"state_l1": "OFF"} or {"state_l1": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_l1": ""}.

Switch (l2 endpoint) #

The current state of this switch is in the published state under the state_l2 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l2": "ON"}, {"state_l2": "OFF"} or {"state_l2": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_l2": ""}.

Interlock (binary) #

Enabling prevents both relais being on at the same time. Value can be found in the published state on the interlock property. It’s not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"interlock": NEW_VALUE}. If value equals true interlock is ON, if false OFF.

Linkquality (numeric) #

Link quality (signal strength). Value can be found in the published state on the linkquality property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.

Manual Home Assistant configuration #

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possible with the following configuration:

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.power }}"
    unit_of_measurement: "W"
    device_class: "power"
    state_class: "measurement"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.energy }}"
    unit_of_measurement: "kWh"
    device_class: "energy"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.temperature }}"
    unit_of_measurement: "°C"
    device_class: "temperature"
    state_class: "measurement"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.voltage }}"
    unit_of_measurement: "V"
    device_class: "voltage"
    enabled_by_default: false
    state_class: "measurement"

switch:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    payload_off: "OFF"
    payload_on: "ON"
    value_template: "{{ value_json.state_l1 }}"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/l1/set"

switch:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    payload_off: "OFF"
    payload_on: "ON"
    value_template: "{{ value_json.state_l2 }}"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/l2/set"

switch:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{% if value_json.interlock %} true {% else %} false {% endif %}"
    payload_on: "true"
    payload_off: "false"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/set"
    command_topic_postfix: "interlock"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.linkquality }}"
    unit_of_measurement: "lqi"
    enabled_by_default: false
    icon: "mdi:signal"
    state_class: "measurement"
