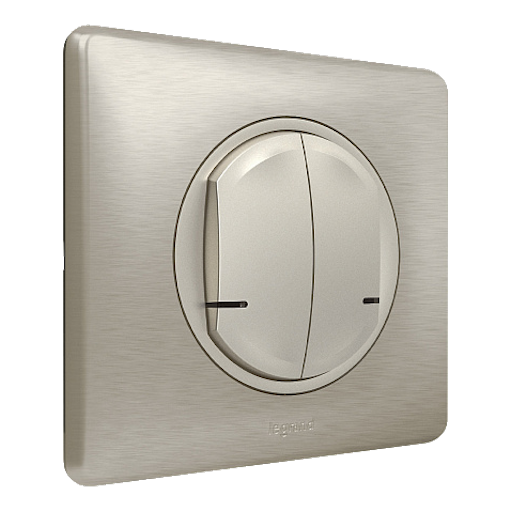

Legrand 067774 #

Model	067774
Vendor	Legrand
Description	Wireless double remote switch
Exposes	battery, action, linkquality

Notes #

Device type specific configuration #

How to use device type specific configuration

• simulated_brightness: Set to true to simulate a brightness value (default: false). If this device provides a brightness_move_up or brightness_move_down action it is possible to specify the update interval and delta. This can be done by instead of specifying true:

simulated_brightness:
  delta: 20 # delta per interval, default = 20
  interval: 200 # interval in milliseconds, default = 200

Model numbers #

Model number depends on the country and the colour of the devices. For example:

• French models are branded as Céliane with Netatmo, and models for this device depends on the colour, with the following numbers: “0 677 24”, “0 677 74”, and “0 677 94”.
• Spanish models are branded as Legrand Valena Next, and models for this device depends on the colour, with the following numbers: “7 418 12”, “7 418 42” and “7 418 72”.

Binding #

The remote supports binding on each endpoint, so you can bind each button to a different device/group.

Exposes #

Battery (numeric) #

Remaining battery in %. Value can be found in the published state on the battery property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Action (enum) #

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It’s not possible to read (/get) or write (/set) this value. The possible values are: identify, on, off, brightness_stop, brightness_move_up, brightness_move_down.

Linkquality (numeric) #

Link quality (signal strength). Value can be found in the published state on the linkquality property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.

Manual Home Assistant configuration #

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possible with the following configuration:

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.battery }}"
    unit_of_measurement: "%"
    device_class: "battery"
    state_class: "measurement"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.action }}"
    icon: "mdi:gesture-double-tap"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.linkquality }}"
    unit_of_measurement: "lqi"
    enabled_by_default: false
    icon: "mdi:signal"
    state_class: "measurement"
