Legrand 067773 #

Model 067773
Vendor Legrand
Description Wireless remote switch
Exposes battery, action, linkquality

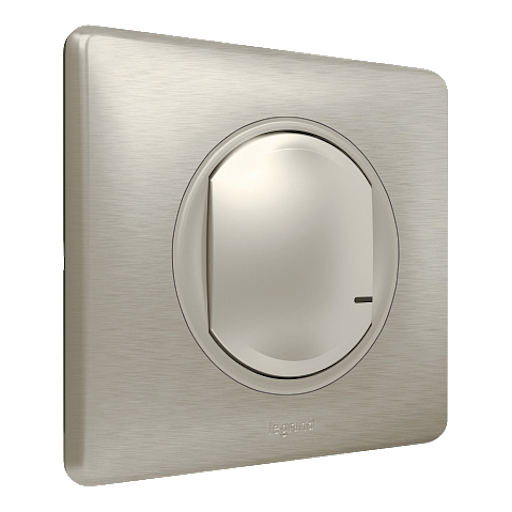

Picture Legrand 067773

Notes #

Legacy integration #

By default (for backwards compatibility purposes) the legacy integration is enabled. For new users it is recommended to disable this as it has several fundamental problems. To disable the legacy integration add the following to your configuration.yaml:

'0xabc457fffe679xyz':
    friendly_name: my_remote
    legacy: false

Device type specific configuration #

How to use device type specific configuration

Model numbers #

Model number depends on the country and the colour of the devices. French models are branded as Céliane with Netatmo, and models for this device depends on the colour, with the following numbers: “0 677 23”, “0 677 73”, and “0 648 93”. Spanish models are branded as Legrand Valena Next, and models for this device depends on the colour, with the following numbers: “7 418 13”, “7 418 43” and “7 418 73”.

Binding #

The remote supports binding.

Exposes #

Battery (numeric) #

Remaining battery in %. Value can be found in the published state on the battery property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Action (enum) #

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It’s not possible to read (/get) or write (/set) this value. The possible values are: identify, on, off, brightness_move_up, brightness_move_down, brightness_stop.

Linkquality (numeric) #

Link quality (signal strength). Value can be found in the published state on the linkquality property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.

Manual Home Assistant configuration #

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possible with the following configuration:

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.battery }}"
    unit_of_measurement: "%"
    device_class: "battery"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.action }}"
    icon: "mdi:gesture-double-tap"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.linkquality }}"
    unit_of_measurement: "lqi"
    icon: "mdi:signal"
