xyzroe ZigDC

ModelZigDC
Vendorxyzroe
DescriptionZigDC
Exposescurrent, voltage, power, temperature, humidity, action, cpu_temperature, switch_type, switch_actions, bind_command, uptime, interval

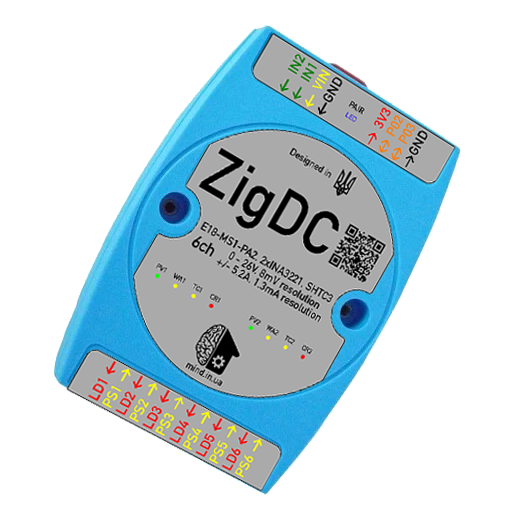

Picturexyzroe ZigDC

Notes

xyzroe ZigDC

Options

How to use device type specific configuration

  • current_calibration: Calibrates the current value (percentual offset), takes into effect on next report of device. The value must be a number.

  • current_precision: Number of digits after decimal point for current, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

  • voltage_calibration: Calibrates the voltage value (percentual offset), takes into effect on next report of device. The value must be a number.

  • voltage_precision: Number of digits after decimal point for voltage, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

  • power_calibration: Calibrates the power value (percentual offset), takes into effect on next report of device. The value must be a number.

  • power_precision: Number of digits after decimal point for power, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

  • temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.

  • temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

  • humidity_calibration: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.

  • humidity_precision: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

Exposes

Current (numeric, ch1 endpoint)

Instantaneous measured electrical current. Value can be found in the published state on the current_ch1 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is A.

Voltage (numeric, ch1 endpoint)

Measured electrical potential value. Value can be found in the published state on the voltage_ch1 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is V.

Power (numeric, ch1 endpoint)

Instantaneous measured power. Value can be found in the published state on the power_ch1 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

Current (numeric, ch2 endpoint)

Instantaneous measured electrical current. Value can be found in the published state on the current_ch2 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is A.

Voltage (numeric, ch2 endpoint)

Measured electrical potential value. Value can be found in the published state on the voltage_ch2 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is V.

Power (numeric, ch2 endpoint)

Instantaneous measured power. Value can be found in the published state on the power_ch2 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

Current (numeric, ch3 endpoint)

Instantaneous measured electrical current. Value can be found in the published state on the current_ch3 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is A.

Voltage (numeric, ch3 endpoint)

Measured electrical potential value. Value can be found in the published state on the voltage_ch3 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is V.

Power (numeric, ch3 endpoint)

Instantaneous measured power. Value can be found in the published state on the power_ch3 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

Current (numeric, ch4 endpoint)

Instantaneous measured electrical current. Value can be found in the published state on the current_ch4 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is A.

Voltage (numeric, ch4 endpoint)

Measured electrical potential value. Value can be found in the published state on the voltage_ch4 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is V.

Power (numeric, ch4 endpoint)

Instantaneous measured power. Value can be found in the published state on the power_ch4 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

Current (numeric, ch5 endpoint)

Instantaneous measured electrical current. Value can be found in the published state on the current_ch5 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is A.

Voltage (numeric, ch5 endpoint)

Measured electrical potential value. Value can be found in the published state on the voltage_ch5 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is V.

Power (numeric, ch5 endpoint)

Instantaneous measured power. Value can be found in the published state on the power_ch5 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

Current (numeric, ch6 endpoint)

Instantaneous measured electrical current. Value can be found in the published state on the current_ch6 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is A.

Voltage (numeric, ch6 endpoint)

Measured electrical potential value. Value can be found in the published state on the voltage_ch6 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is V.

Power (numeric, ch6 endpoint)

Instantaneous measured power. Value can be found in the published state on the power_ch6 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

Temperature (numeric, l6 endpoint)

Measured temperature value. Value can be found in the published state on the temperature_l6 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Humidity (numeric, l6 endpoint)

Measured relative humidity. Value can be found in the published state on the humidity_l6 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is %.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: single, double, triple, hold, release.

CPU temperature (numeric, l2 endpoint)

Temperature of the CPU. Value can be found in the published state on the temperature_l2 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Switch type (enum, l7 endpoint)

IN1. Value can be found in the published state on the switch_type_l7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"switch_type_l7": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_type_l7": NEW_VALUE}. The possible values are: switch, single_click, multi_click, reset_to_defaults.

Switch actions (enum, l7 endpoint)

Value can be found in the published state on the switch_actions_l7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"switch_actions_l7": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_actions_l7": NEW_VALUE}. The possible values are: on, off, toggle.

Bind command (enum, l7 endpoint)

Value can be found in the published state on the bind_command_l7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"bind_command_l7": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"bind_command_l7": NEW_VALUE}. The possible values are: on/off, toggle, change_level_up, change_level_down, change_level_up_with_off, change_level_down_with_off, recall_scene_0, recall_scene_1, recall_scene_2, recall_scene_3, recall_scene_4, recall_scene_5.

Switch type (enum, l8 endpoint)

IN2. Value can be found in the published state on the switch_type_l8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"switch_type_l8": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_type_l8": NEW_VALUE}. The possible values are: switch, single_click, multi_click, reset_to_defaults.

Switch actions (enum, l8 endpoint)

Value can be found in the published state on the switch_actions_l8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"switch_actions_l8": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_actions_l8": NEW_VALUE}. The possible values are: on, off, toggle.

Bind command (enum, l8 endpoint)

Value can be found in the published state on the bind_command_l8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"bind_command_l8": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"bind_command_l8": NEW_VALUE}. The possible values are: on/off, toggle, change_level_up, change_level_down, change_level_up_with_off, change_level_down_with_off, recall_scene_0, recall_scene_1, recall_scene_2, recall_scene_3, recall_scene_4, recall_scene_5.

Switch type (enum, l1 endpoint)

BTN. Value can be found in the published state on the switch_type_l1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"switch_type_l1": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_type_l1": NEW_VALUE}. The possible values are: switch, single_click, multi_click, reset_to_defaults.

Switch actions (enum, l1 endpoint)

Value can be found in the published state on the switch_actions_l1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"switch_actions_l1": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_actions_l1": NEW_VALUE}. The possible values are: on, off, toggle.

Bind command (enum, l1 endpoint)

Value can be found in the published state on the bind_command_l1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"bind_command_l1": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"bind_command_l1": NEW_VALUE}. The possible values are: on/off, toggle, change_level_up, change_level_down, change_level_up_with_off, change_level_down_with_off, recall_scene_0, recall_scene_1, recall_scene_2, recall_scene_3, recall_scene_4, recall_scene_5.

Uptime (numeric)

Uptime. Value can be found in the published state on the uptime property. It's not possible to read (/get) or write (/set) this value. The unit of this value is sec.

Interval (numeric)

Reporting interval. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"interval": NEW_VALUE}. The minimal value is 5 and the maximum value is 600. The unit of this value is sec.

Help to make the docu better and edit this page on Github ✌
