Arteco ZS-301Z
Model | ZS-301Z |
Vendor | Arteco |
Description | Soil moisture sensor |
Exposes | battery_state, temperature, humidity, illuminance, humidity_calibration, report_interval |

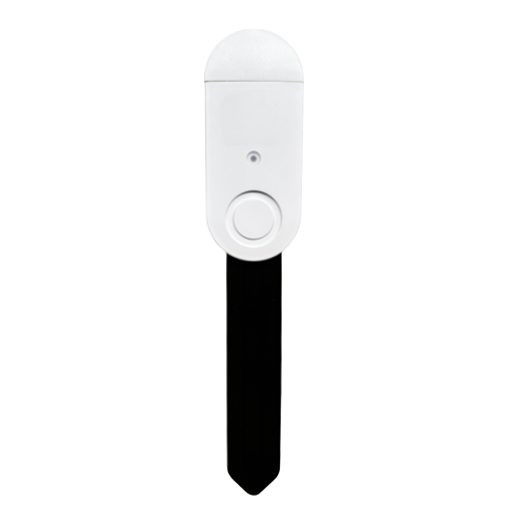

Picture | ![]() |
Options
How to use device type specific configuration
temperature_calibration
: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.temperature_precision
: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of0
and with a with a maximum value of3
humidity_calibration
: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.humidity_precision
: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of0
and with a with a maximum value of3
illuminance_calibration
: Calibrates the illuminance value (percentual offset), takes into effect on next report of device. The value must be a number.
Exposes
Battery state (enum)
low: 1-25%, middle: 26-50%, high: 51-100%. Value can be found in the published state on the battery_state
property. It's not possible to read (/get
) or write (/set
) this value. The possible values are: low
, middle
, high
.
Temperature (numeric)
Measured temperature value. Value can be found in the published state on the temperature
property. It's not possible to read (/get
) or write (/set
) this value. The unit of this value is °C
.
Humidity (numeric)
Measured relative humidity. Value can be found in the published state on the humidity
property. It's not possible to read (/get
) or write (/set
) this value. The unit of this value is %
.
Illuminance (numeric)
Measured illuminance. Value can be found in the published state on the illuminance
property. It's not possible to read (/get
) or write (/set
) this value. The unit of this value is lx
.
Humidity calibration (numeric)
Adjust humidity. Value can be found in the published state on the humidity_calibration
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"humidity_calibration": NEW_VALUE}
. The minimal value is -30
and the maximum value is 30
. The unit of this value is %
.
Report interval (numeric)
Report interval. Value can be found in the published state on the report_interval
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"report_interval": NEW_VALUE}
. The minimal value is 30
and the maximum value is 1200
. The unit of this value is s
.
