Aqara ZNGZDJ11LM

ModelZNGZDJ11LM
VendorAqara
DescriptionRoller shade controller
Exposescover (state, position), running, linkquality

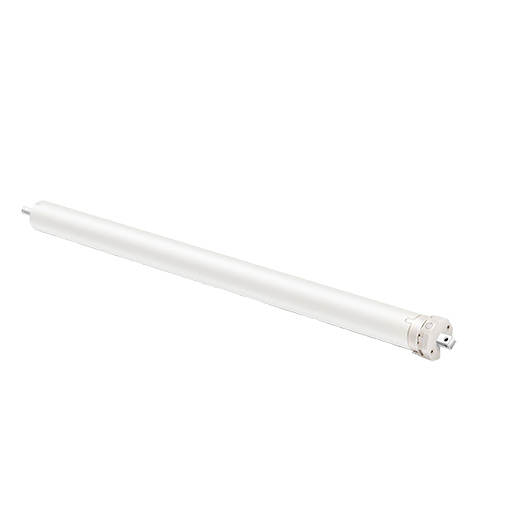

PictureAqara ZNGZDJ11LM
White-labelAqara SRSC-M01

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

  • invert_cover: Inverts the cover position, false: open=100,close=0, true: open=0,close=100 (default false). The value must be true or false

Exposes

Cover

The current state of this cover is in the published state under the state property (value is OPEN or CLOSE). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "OPEN"}, {"state": "CLOSE"}, {"state": "STOP"}. To read the current state of this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position": VALUE} where VALUE is a number between 0 and 100.

Running (binary)

Whether the motor is moving or not. Value can be found in the published state on the running property. It's not possible to read (/get) or write (/set) this value. If value equals true running is ON, if false OFF.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
