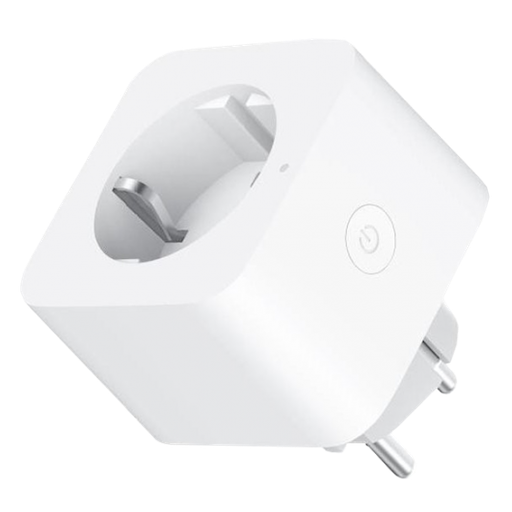

Xiaomi ZNCZ04LM #

Model	ZNCZ04LM
Vendor	Xiaomi
Description	Mi power plug ZigBee EU
Exposes	switch (state), power, energy, temperature, voltage, current, consumer_connected, consumer_overload, led_disabled_night, power_outage_memory, auto_off, linkquality

Notes #

Pairing #

Press and hold the button on the device until the blue light starts blinking, release it and and the device will automatically join.

Device type specific configuration #

How to use device type specific configuration

temperature_precision: Controls the precision of temperature values, e.g. 0, 1 or 2; default 2. To control the precision based on the temperature value set it to e.g. {30: 0, 10: 1}, when temperature >= 30 precision will be 0, when temperature >= 10 precision will be 1. Precision will take into affect with next report of device.
temperature_calibration: Allows to manually calibrate temperature values, e.g. 1 would add 1 degree to the temperature reported by the device; default 0. Calibration will take into affect with next report of device.

Power outage memory #

This option allows the device to restore the last on/off state when it’s reconnected to power. To set this option publish to zigbee2mqtt/FRIENDLY_NAME/set payload {"power_outage_memory": true} (or false). Now toggle the plug/switch once with the button on it, from now on it will restore its state when reconnecting to power.

OTA updates #

This device supports OTA updates, for more information see OTA updates.

Exposes #

Switch #

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.

Power (numeric) #

Instantaneous measured power. Value can be found in the published state on the power property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power": ""}. It’s not possible to write (/set) this value. The unit of this value is W.

Energy (numeric) #

Sum of consumed energy. Value can be found in the published state on the energy property. It’s not possible to read (/get) or write (/set) this value. The unit of this value is kWh.

Temperature (numeric) #

Measured temperature value. Value can be found in the published state on the temperature property. It’s not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Voltage (numeric) #

Measured electrical potential value. Value can be found in the published state on the voltage property. It’s not possible to read (/get) or write (/set) this value. The unit of this value is V.

Current (numeric) #

Instantaneous measured electrical current. Value can be found in the published state on the current property. It’s not possible to read (/get) or write (/set) this value. The unit of this value is A.

Consumer_connected (binary) #

Indicates whether device is physically attached. Device does not have to pull power or even be connected electrically (switch can be ON even if switch is OFF).. Value can be found in the published state on the consumer_connected property. It’s not possible to read (/get) or write (/set) this value. If value equals true consumer_connected is ON, if false OFF.

Consumer_overload (numeric) #

Indicates with how many Watts the maximum possible power consumption is exceeded. Value can be found in the published state on the consumer_overload property. It’s not possible to read (/get) or write (/set) this value. The unit of this value is W.

Led_disabled_night (binary) #

Enable/disable the LED at night. Value can be found in the published state on the led_disabled_night property. It’s not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"led_disabled_night": NEW_VALUE}. If value equals true led_disabled_night is ON, if false OFF.

Power_outage_memory (binary) #

Enable/disable the power outage memory, this recovers the on/off mode after power failure. Value can be found in the published state on the power_outage_memory property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_outage_memory": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_outage_memory": NEW_VALUE}. If value equals true power_outage_memory is ON, if false OFF.

Auto_off (binary) #

Turn the device automatically off when attached device consumes less than 2W for 20 minutes. Value can be found in the published state on the auto_off property. It’s not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"auto_off": NEW_VALUE}. If value equals true auto_off is ON, if false OFF.

Linkquality (numeric) #

Link quality (signal strength). Value can be found in the published state on the linkquality property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.

Manual Home Assistant configuration #

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possible with the following configuration:

switch:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    payload_off: "OFF"
    payload_on: "ON"
    value_template: "{{ value_json.state }}"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/set"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.power }}"
    unit_of_measurement: "W"
    device_class: "power"
    state_class: "measurement"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.energy }}"
    unit_of_measurement: "kWh"
    device_class: "energy"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.temperature }}"
    unit_of_measurement: "°C"
    device_class: "temperature"
    state_class: "measurement"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.voltage }}"
    unit_of_measurement: "V"
    device_class: "voltage"
    enabled_by_default: false
    state_class: "measurement"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.current }}"
    unit_of_measurement: "A"
    device_class: "current"
    state_class: "measurement"

binary_sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.consumer_connected }}"
    payload_on: true
    payload_off: false

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.consumer_overload }}"
    unit_of_measurement: "W"

switch:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{% if value_json.led_disabled_night %} true {% else %} false {% endif %}"
    payload_on: "true"
    payload_off: "false"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/set"
    command_topic_postfix: "led_disabled_night"

switch:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{% if value_json.power_outage_memory %} true {% else %} false {% endif %}"
    payload_on: "true"
    payload_off: "false"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/set"
    command_topic_postfix: "power_outage_memory"

switch:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{% if value_json.auto_off %} true {% else %} false {% endif %}"
    payload_on: "true"
    payload_off: "false"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/set"
    command_topic_postfix: "auto_off"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.linkquality }}"
    unit_of_measurement: "lqi"
    enabled_by_default: false
    icon: "mdi:signal"
    state_class: "measurement"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    icon: "mdi:update"
    value_template: "{{ value_json['update']['state'] }}"
    enabled_by_default: false

binary_sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    payload_on: true
    payload_off: false
    value_template: "{{ value_json.update_available}}"
    enabled_by_default: false
