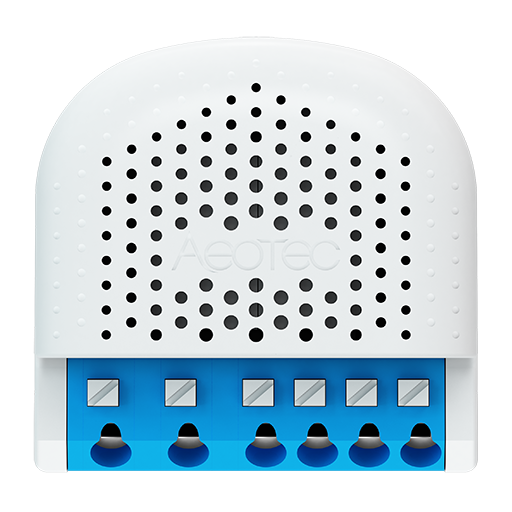

AEOTEC ZGA004

Model	ZGA004
Vendor	AEOTEC
Description	Pico shutter
Exposes	device_temperature, identify, cover (state, position, tilt), action, linkquality

Options

How to use device type specific configuration

• device_temperature_calibration: Calibrates the device_temperature value (absolute offset), takes into effect on next report of device. The value must be a number.

• identify_timeout: Sets the duration of the identification procedure in seconds (i.e., how long the device would flash).The value ranges from 1 to 30 seconds (default: 3). The value must be a number with a minimum value of 1 and with a with a maximum value of 30

• invert_cover: Inverts the cover position, false: open=100,close=0, true: open=0,close=100 (default false). The value must be true or false

• cover_position_tilt_disable_report: Do not publish set cover target position as a normal 'position' value (default false). The value must be true or false

• simulated_brightness: Simulate a brightness value. If this device provides a brightness_move_up or brightness_move_down action it is possible to specify the update interval and delta. The action_brightness_delta indicates the delta for each interval. Example:

simulated_brightness:
  delta: 20 # delta per interval, default = 20
  interval: 200 # interval in milliseconds, default = 200

Exposes

Device temperature (numeric)

Temperature of the device. Value can be found in the published state on the device_temperature property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"device_temperature": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Identify (enum)

Initiate device identification. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"identify": NEW_VALUE}. The possible values are: identify.

Cover

The current state of this cover is in the published state under the state property (value is OPEN or CLOSE). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "OPEN"}, {"state": "CLOSE"}, {"state": "STOP"}. It's not possible to read (/get) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position": VALUE} where VALUE is a number between 0 and 100. To change the tilt publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"tilt": VALUE} where VALUE is a number between 0 and 100.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: open_3, close_3, stop_3, on_4, on_5, off_4, off_5, toggle_4, toggle_5, brightness_move_to_level_4, brightness_move_to_level_5, brightness_move_up_4, brightness_move_up_5, brightness_move_down_4, brightness_move_down_5, brightness_step_up_4, brightness_step_up_5, brightness_step_down_4, brightness_step_down_5, brightness_stop_4, brightness_stop_5.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
