Sunricher ZG2819S-RGBW

ModelZG2819S-RGBW
VendorSunricher
DescriptionZigbee handheld remote RGBW 4 channels
Exposesbattery, voltage, action

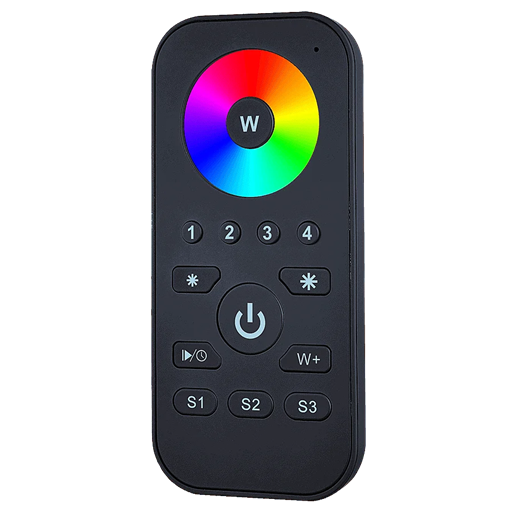

PictureSunricher ZG2819S-RGBW
White-labelIluminize 511.344

Notes

Using the remote to reset other Zigbee devices

Many devices can be factory reset / re-paired with a help of ZG2819-RGBW remote:

  1. Make sure your device is powered on and set to start Touchlink commissionning.
  2. Bring the remote within 10cm of the lighting device.
  3. Take the remote, press and hold down the ON/OFF button until the LED indictaor turns on.
  4. Immediately short press 5 times S2 to start touch reset of the remote. LED indicator flashes fast for 3s then flashes 3 times slowly to indicate sucessful reset.

Options

How to use device type specific configuration

  • simulated_brightness: Simulate a brightness value. If this device provides a brightness_move_up or brightness_move_down action it is possible to specify the update interval and delta. The action_brightness_delta indicates the delta for each interval. Example:
simulated_brightness:
  delta: 20 # delta per interval, default = 20
  interval: 200 # interval in milliseconds, default = 200

Exposes

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Voltage (numeric)

Voltage of the battery in millivolts. Value can be found in the published state on the voltage property. It's not possible to read (/get) or write (/set) this value. The unit of this value is mV.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: on, off, brightness_step_up, brightness_step_down, brightness_move_up, brightness_move_down, brightness_stop, recall_*, hue_move, hue_stop, color_move, color_temperature_move.
