TuYa ZG-205ZL

ModelZG-205ZL
VendorTuYa
Description24Ghz/5.8GHz human presence sensor
Exposespresence, motion_state, illuminance_lux, fading_time, large_motion_detection_distance, large_motion_detection_sensitivity, small_motion_detection_distance, small_motion_detection_sensitivity, static_detection_distance, static_detection_sensitivity, mode, alarm_volume, alarm_time, light_mode, linkquality

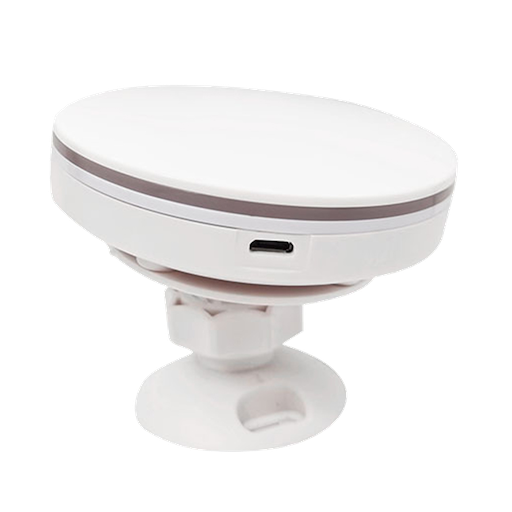

PictureTuYa ZG-205ZL

Notes

Pairing

To start pairing, press the button (pinhole on the side of the device) using a pin/paperclip for approx. 5 seconds. The led will turn on, then start blinking while the pairing process is in progress.

Options

How to use device type specific configuration

  • illuminance_lux_calibration: Calibrates the illuminance_lux value (percentual offset), takes into effect on next report of device. The value must be a number.

Exposes

Presence (binary)

Indicates whether the device detected presence. Value can be found in the published state on the presence property. It's not possible to read (/get) or write (/set) this value. If value equals true presence is ON, if false OFF.

Motion state (enum)

Motion state. Value can be found in the published state on the motion_state property. It's not possible to read (/get) or write (/set) this value. The possible values are: none, large, small, static.

Illuminance (lux) (numeric)

Measured illuminance in lux. Value can be found in the published state on the illuminance_lux property. It's not possible to read (/get) or write (/set) this value. The unit of this value is lx.

Fading time (numeric)

Presence keep time. Value can be found in the published state on the fading_time property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"fading_time": NEW_VALUE}. The minimal value is 0 and the maximum value is 3600. The unit of this value is s.

Large motion detection distance (numeric)

Large motion detection distance. Value can be found in the published state on the large_motion_detection_distance property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"large_motion_detection_distance": NEW_VALUE}. The minimal value is 0 and the maximum value is 10. The unit of this value is m.

Large motion detection sensitivity (numeric)

Large motion detection sensitivity. Value can be found in the published state on the large_motion_detection_sensitivity property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"large_motion_detection_sensitivity": NEW_VALUE}. The minimal value is 0 and the maximum value is 10. The unit of this value is x.

Small motion detection distance (numeric)

Small motion detection distance. Value can be found in the published state on the small_motion_detection_distance property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"small_motion_detection_distance": NEW_VALUE}. The minimal value is 0 and the maximum value is 6. The unit of this value is m.

Small motion detection sensitivity (numeric)

Small motion detection sensitivity. Value can be found in the published state on the small_motion_detection_sensitivity property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"small_motion_detection_sensitivity": NEW_VALUE}. The minimal value is 0 and the maximum value is 10. The unit of this value is x.

Static detection distance (numeric)

Static detection distance. Value can be found in the published state on the static_detection_distance property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"static_detection_distance": NEW_VALUE}. The minimal value is 0 and the maximum value is 6. The unit of this value is m.

Static detection sensitivity (numeric)

Static detection sensitivity. Value can be found in the published state on the static_detection_sensitivity property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"static_detection_sensitivity": NEW_VALUE}. The minimal value is 0 and the maximum value is 10. The unit of this value is x.

Mode (enum)

Working mode. Value can be found in the published state on the mode property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"mode": NEW_VALUE}. The possible values are: off, arm, alarm, doorbell.

Alarm volume (enum)

Alarm volume. Value can be found in the published state on the alarm_volume property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm_volume": NEW_VALUE}. The possible values are: mute, low, medium, high.

Alarm time (numeric)

Alarm time. Value can be found in the published state on the alarm_time property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm_time": NEW_VALUE}. The minimal value is 1 and the maximum value is 60. The unit of this value is m.

Light mode (binary)

LED indicator mode. Value can be found in the published state on the light_mode property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"light_mode": NEW_VALUE}. If value equals ON light mode is ON, if OFF OFF.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
