HOBEIAN ZG-204ZH
Model | ZG-204ZH |
Vendor | HOBEIAN |
Description | PIR 24Ghz human presence sensor |
Exposes | presence, illuminance, temperature, humidity, temperature_unit, temperature_calibration, humidity_calibration, battery, fading_time, indicator, illuminance_interval, static_detection_distance, static_detection_sensitivity |

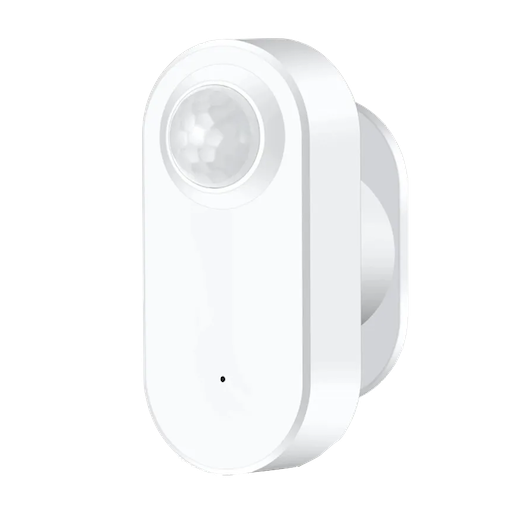

Picture | ![]() |
Options
How to use device type specific configuration
illuminance_calibration
: Calibrates the illuminance value (percentual offset), takes into effect on next report of device. The value must be a number.temperature_calibration
: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.temperature_precision
: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of0
and with a with a maximum value of3
humidity_calibration
: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.humidity_precision
: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of0
and with a with a maximum value of3
Exposes
Presence (binary)
Indicates whether the device detected presence. Value can be found in the published state on the presence
property. It's not possible to read (/get
) or write (/set
) this value. If value equals true
presence is ON, if false
OFF.
Illuminance (numeric)
Measured illuminance. Value can be found in the published state on the illuminance
property. It's not possible to read (/get
) or write (/set
) this value. The unit of this value is lx
.
Temperature (numeric)
Measured temperature value. Value can be found in the published state on the temperature
property. It's not possible to read (/get
) or write (/set
) this value. The unit of this value is °C
.
Humidity (numeric)
Measured relative humidity. Value can be found in the published state on the humidity
property. It's not possible to read (/get
) or write (/set
) this value. The unit of this value is %
.
Temperature unit (enum)
Temperature unit. Value can be found in the published state on the temperature_unit
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"temperature_unit": NEW_VALUE}
. The possible values are: celsius
, fahrenheit
.
Temperature calibration (numeric)
Temperature calibration. Value can be found in the published state on the temperature_calibration
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"temperature_calibration": NEW_VALUE}
. The minimal value is -2
and the maximum value is 2
. The unit of this value is °C
.
Humidity calibration (numeric)
Humidity calibration. Value can be found in the published state on the humidity_calibration
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"humidity_calibration": NEW_VALUE}
. The minimal value is -30
and the maximum value is 30
. The unit of this value is %
.
Battery (numeric)
Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery
property. It's not possible to read (/get
) or write (/set
) this value. The minimal value is 0
and the maximum value is 100
. The unit of this value is %
.
Fading time (numeric)
Motion keep time. Value can be found in the published state on the fading_time
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"fading_time": NEW_VALUE}
. The minimal value is 0
and the maximum value is 28800
. The unit of this value is s
.
Indicator (binary)
LED indicator mode. Value can be found in the published state on the indicator
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"indicator": NEW_VALUE}
. If value equals ON
indicator is ON, if OFF
OFF.
Illuminance interval (numeric)
Light sensing sampling(refresh and update only while active). Value can be found in the published state on the illuminance_interval
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"illuminance_interval": NEW_VALUE}
. The minimal value is 1
and the maximum value is 720
. The unit of this value is minutes
.
Static detection distance (numeric)
Static detection distance. Value can be found in the published state on the static_detection_distance
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"static_detection_distance": NEW_VALUE}
. The minimal value is 0
and the maximum value is 5
. The unit of this value is m
.
Static detection sensitivity (numeric)
Static detection sensitivity. Value can be found in the published state on the static_detection_sensitivity
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"static_detection_sensitivity": NEW_VALUE}
. The minimal value is 0
and the maximum value is 10
. The unit of this value is x
.
