Loginovo ZG-101ZL

ModelZG-101ZL
VendorLoginovo
DescriptionSmart button
Exposesaction, battery, operation_mode

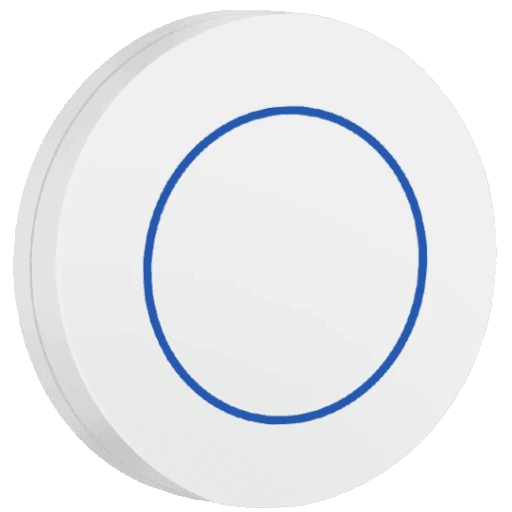

PictureLoginovo ZG-101ZL

Operation mode

You can switch between the "command" and "event" operation mode with a triple click

Command mode enables on/off mode : single click : on double click : off long press (>5s) and release : brightness_move_to_level

You can then use OnOff and LevelCtrl binding in this mode

Event mode enables click : single/double/hold

Options

How to use device type specific configuration

  • simulated_brightness: Simulate a brightness value. If this device provides a brightness_move_up or brightness_move_down action it is possible to specify the update interval and delta. The action_brightness_delta indicates the delta for each interval. Example:
simulated_brightness:
  delta: 20 # delta per interval, default = 20
  interval: 200 # interval in milliseconds, default = 200

Exposes

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: single, double, hold, brightness_move_to_level, color_temperature_move, brightness_step_up, brightness_step_down, on, off.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Operation mode (enum)

Operation mode: "command" - for group control, "event" - for clicks. Value can be found in the published state on the operation_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"operation_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"operation_mode": NEW_VALUE}. The possible values are: command, event.
