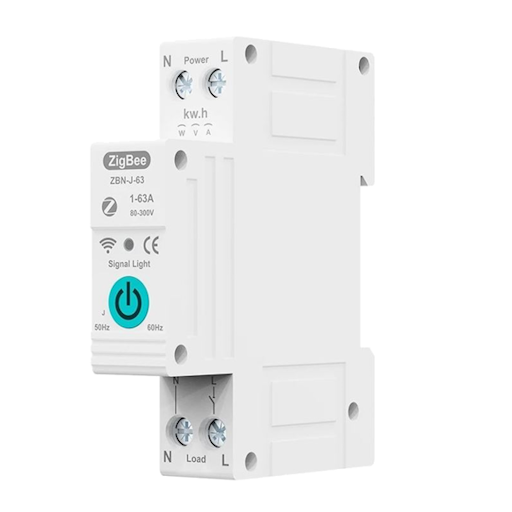

Tuya ZBN-JT-63


Model	ZBN-JT-63
Vendor	Tuya
Description	Din rail switch with power monitoring
Exposes	switch (state), power, current, voltage, energy, power_outage_memory, fault, meter_id

Notes

RMshebei zigbee circuit breaker tuya power meter 220v

Re-pair / starting pairing mode again

Long press 15 seconds.

Functions

Remote Control ON/OFF
Reclosing
Energy Monitor
Current Litmit(1-63A adjustable)
Over current (abjustable)

Options

How to use device type specific configuration

power_calibration: Calibrates the power value (percentual offset), takes into effect on next report of device. The value must be a number.
power_precision: Number of digits after decimal point for power, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
current_calibration: Calibrates the current value (percentual offset), takes into effect on next report of device. The value must be a number.
current_precision: Number of digits after decimal point for current, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
voltage_calibration: Calibrates the voltage value (percentual offset), takes into effect on next report of device. The value must be a number.
voltage_precision: Number of digits after decimal point for voltage, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
energy_calibration: Calibrates the energy value (percentual offset), takes into effect on next report of device. The value must be a number.
energy_precision: Number of digits after decimal point for energy, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. It's not possible to read (/get) this value.

Power (numeric)

Instantaneous measured power. Value can be found in the published state on the power property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

Current (numeric)

Instantaneous measured electrical current. Value can be found in the published state on the current property. It's not possible to read (/get) or write (/set) this value. The unit of this value is A.

Voltage (numeric)

Measured electrical potential value. Value can be found in the published state on the voltage property. It's not possible to read (/get) or write (/set) this value. The unit of this value is V.

Energy (numeric)

Consumed energy. Value can be found in the published state on the energy property. It's not possible to read (/get) or write (/set) this value. The unit of this value is kWh.

Power outage memory (enum)

Recover state after power outage. Value can be found in the published state on the power_outage_memory property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_outage_memory": NEW_VALUE}. The possible values are: on, off, restore.

Fault (enum)

Fault status of the device (clear = nothing). Value can be found in the published state on the fault property. It's not possible to read (/get) or write (/set) this value. The possible values are: clear, short_circuit_alarm, surge_alarm, overload_alarm, leakagecurr_alarm, temp_dif_fault, fire_alarm, high_power_alarm, self_test_alarm, ov_cr, unbalance_alarm, ov_vol, undervoltage_alarm, miss_phase_alarm, outage_alarm, magnetism_alarm, credit_alarm, no_balance_alarm.

Meter id (text)

Meter ID (ID of device). Value can be found in the published state on the meter_id property. It's not possible to read (/get) or write (/set) this value.
