Zigbee2MQTT

SONOFF ZBMicro

ModelZBMicro
VendorSONOFF
DescriptionZigbee USB repeater plug
Exposesswitch (state), power_on_behavior, rf_turbo_mode, inching_control_set, linkquality

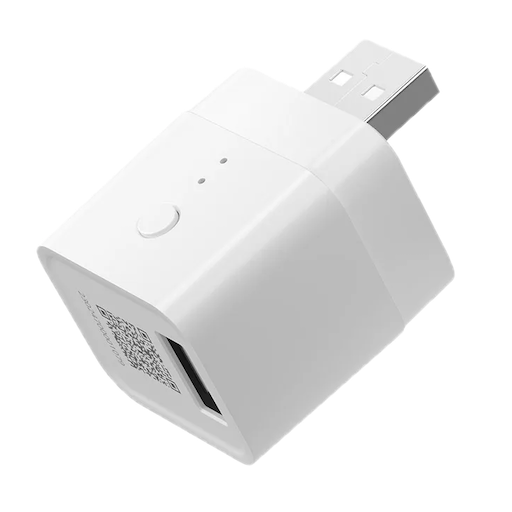

PictureSONOFF ZBMicro

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

  • state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

Exposes

Switch

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionnaly an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depend on the switch firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Power-on behavior (enum)

Controls the behavior when the device is powered on after power loss. If you get an UNSUPPORTED_ATTRIBUTE error, the device does not support it.. Value can be found in the published state on the power_on_behavior property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_on_behavior": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_on_behavior": NEW_VALUE}. The possible values are: off, on, toggle, previous.

Rf turbo mode (binary)

Enable/disable Radio power turbo mode. Value can be found in the published state on the rf_turbo_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"rf_turbo_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"rf_turbo_mode": NEW_VALUE}. If value equals true rf turbo mode is ON, if false OFF.

Inching control set (composite)

Device Inching function Settings. The device will automatically turn off (turn on) after each turn on (turn off) for a specified period of time.. Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"inching_control_set": {"inching_control": VALUE, "inching_time": VALUE, "inching_mode": VALUE}}

  • inching_control (binary): Enable/disable inching function. allowed values: ENABLE or DISABLE
  • inching_time (numeric): Delay time for executing a inching action. min value is 0.5, max value is 3599.5, unit is seconds
  • inching_mode (binary): Set inching off or inching on mode. allowed values: ON or OFF

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
