SONOFF ZBMINI

ModelZBMINI
VendorSONOFF
DescriptionZigbee two way smart switch
Exposesswitch (state), linkquality

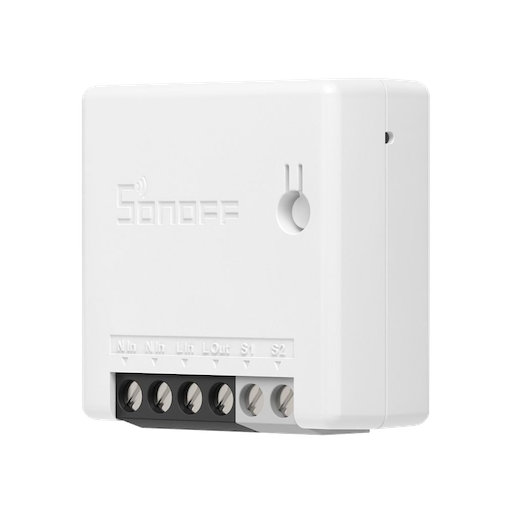

PictureSONOFF ZBMINI

Notes

Re-pairing

ZBMINI can be factory reset / re-paired with a help of a Hue dimmer switch. This is extremely helpful when your device isn't easily reachable to use the reset pin (i.e. when already hidden in a back box). See instructions on Hue dimmer switch pageopen in new window.

Device stuck

In case of switching the coordinators a device may stuck in error state which is indicated by slowly blinking light (about 1 flash per second). To switch a device to a pairing mode power it off for 10 sec. After power on it enters pairing mode automatically.

Options

How to use device type specific configuration

  • state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

Exposes

Switch

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionnaly an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depend on the switch firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
