Xiaomi WS-USC04

ModelWS-USC04
VendorXiaomi
DescriptionAqara smart wall switch (neutral, double rocker)
Exposesswitch (state), linkquality

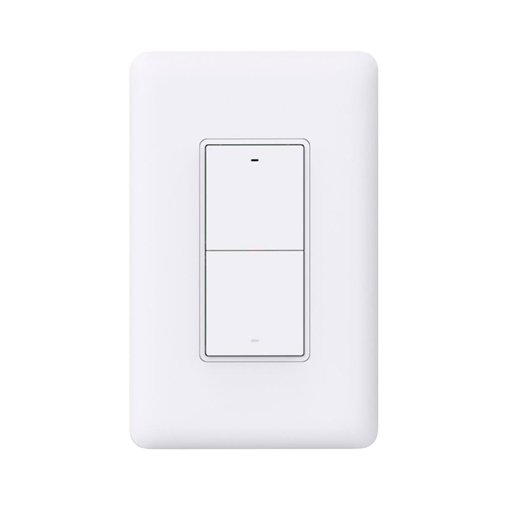

PictureXiaomi WS-USC04

OTA updates

This device supports OTA updates, for more information see OTA updates.

Exposes

Switch (top endpoint)

The current state of this switch is in the published state under the state_top property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_top": "ON"}, {"state_top": "OFF"} or {"state_top": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_top": ""}.

Switch (bottom endpoint)

The current state of this switch is in the published state under the state_bottom property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_bottom": "ON"}, {"state_bottom": "OFF"} or {"state_bottom": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_bottom": ""}.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
