Danalock V3-BTZB/V3-BTZBE

ModelV3-BTZB/V3-BTZBE
VendorDanalock
DescriptionBT/ZB smartlock
Exposeslock (state, lock_state), battery, pin_code, action, action_source_name, action_user, linkquality

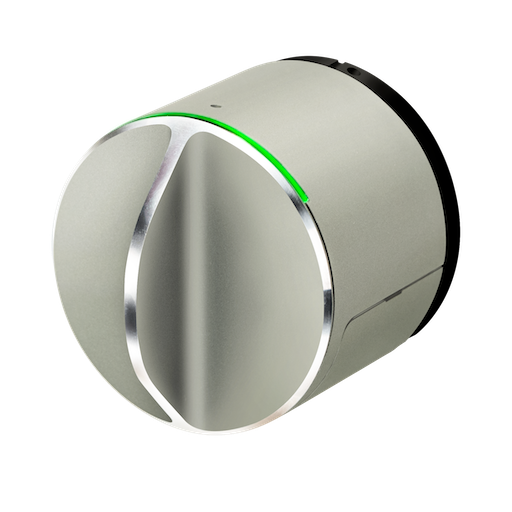

PictureDanalock V3-BTZB/V3-BTZBE

Notes

Pairing

If pairing failed, try the followings:

  • Pairing it closer to the coordinator
  • Connecting the CC2531 via an USB extension cable (to avoid interference)
  • Replacing the batteries of the danalock.

App

This device also come with an iOS/Android app. It is recommended to do the setups first via the app for better control of the lock.

If you have a Danapad, you can create/update/remove 20 pin code. To create or update code, you have to send MQTT /set request : {"pin_code":{"user":0,"pin_code":123456,"user_type":"unrestricted","user_enabled":true},"user_status":{"user":0,"status":"enabled"}} Apparently "user_type":"unrestricted","user_enabled":true is not used by the Danalock. The user value can take 0 to 19 (pin 0 to pin 19) For the pin code to work, you must also send user_status and set it to enabled. To remove a pin code, just send MQTT /set request : {"pin_code":{"user":0}} (user take value 0 to 19)

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

  • expose_pin: Expose pin of this lock in the published payload (default false). The value must be true or false

Exposes

Lock

The current state of this lock is in the published state under the state property (value is LOCK or UNLOCK). To control this lock publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "LOCK"} or {"state": "UNLOCK"}. To read the current state of this lock publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}. This lock exposes a lock state which can be found in the published state under the lock_state property. It's not possible to read (/get) or write (/set) this value. The possible values are: not_fully_locked, locked, unlocked.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Pin code (composite)

Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"pin_code": {"user": VALUE, "user_type": VALUE, "user_enabled": VALUE, "pin_code": VALUE}} To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"pin_code": ""}.

  • user (numeric): User ID to set or clear the pincode for
  • user_type (enum): Type of user, unrestricted: owner (default), (year|week)_day_schedule: user has ability to open lock based on specific time period, master: user has ability to both program and operate the door lock, non_access: user is recognized by the lock but does not have the ability to open the lock allowed values: unrestricted, year_day_schedule, week_day_schedule, master, non_access
  • user_enabled (binary): Whether the user is enabled/disabled allowed values: true or false
  • pin_code (numeric): Pincode to set, set pincode to null to clear

Action (enum)

Triggered action on the lock. Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: unknown, lock, unlock, lock_failure_invalid_pin_or_id, lock_failure_invalid_schedule, unlock_failure_invalid_pin_or_id, unlock_failure_invalid_schedule, one_touch_lock, key_lock, key_unlock, auto_lock, schedule_lock, schedule_unlock, manual_lock, manual_unlock, non_access_user_operational_event.

Action source name (enum)

Source of the triggered action on the lock. Value can be found in the published state on the action_source_name property. It's not possible to read (/get) or write (/set) this value. The possible values are: keypad, rfid, manual, rf.

Action user (numeric)

ID of user that triggered the action on the lock. Value can be found in the published state on the action_user property. It's not possible to read (/get) or write (/set) this value.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
