Aqara UT-A01E


Model	UT-A01E
Vendor	Aqara

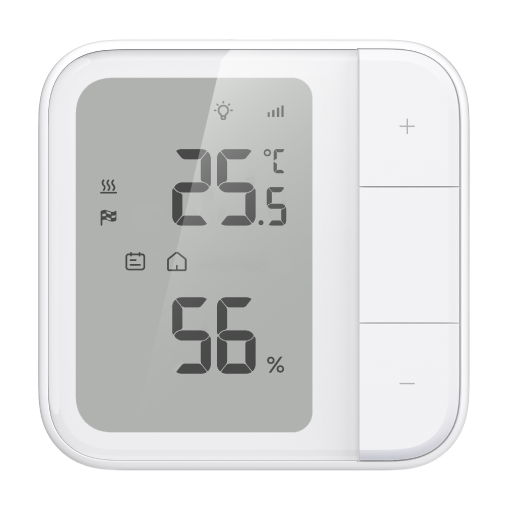

Description	Floor heating thermostat W500
Exposes	climate (local_temperature, local_temperature_calibration, occupied_heating_setpoint, system_mode, running_state), temperature_setpoint_hold, temperature_setpoint_hold_duration, max_heat_setpoint_limit, min_heat_setpoint_limit, preset, state, humidity, sensor_source, ntc_sensor_type, window_detection, power_outage_memory, child_lock, hysteresis, identify

Options

How to use device type specific configuration

humidity_calibration: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.
humidity_precision: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
thermostat_unit: Controls the temperature unit of the thermostat (default celsius). The value must be one of celsius, fahrenheit
identify_timeout: Sets the duration of the identification procedure in seconds (i.e., how long the device would flash).The value ranges from 1 to 30 seconds (default: 3). The value must be a number with a minimum value of 1 and with a with a maximum value of 30

Exposes

Climate

This climate device supports the following features: local_temperature, local_temperature_calibration, occupied_heating_setpoint, system_mode, running_state.

occupied_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupied_heating_setpoint": VALUE} where VALUE is the °C between 5 and 40. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupied_heating_setpoint": ""}.
local_temperature: Current temperature measured on the device (in °C). To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature": ""}.
system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode": VALUE} where VALUE is one of: off, heat. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode": ""}.
running_state: The current running state. Possible values are: idle, heat, cool, fan_only. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"running_state": ""}.
local_temperature_calibration: Offset to add/subtract to the local temperature. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"local_temperature_calibration": VALUE}.To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature": ""}.The minimal value is -12.8 and the maximum value is 12.8 with a step size of 0.1.

Temperature setpoint hold (binary)

Prevent changes. false = run normally. true = prevent from making changes.. Value can be found in the published state on the temperature_setpoint_hold property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_setpoint_hold": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_setpoint_hold": NEW_VALUE}. If value equals true temperature setpoint hold is ON, if false OFF.

Temperature setpoint hold duration (numeric)

Period in minutes for which the setpoint hold will be active (65535 - forever). Value can be found in the published state on the temperature_setpoint_hold_duration property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_setpoint_hold_duration": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_setpoint_hold_duration": NEW_VALUE}. The minimal value is 0 and the maximum value is 65535.

Max heat setpoint limit (numeric)

Maximum Heating set point limit. Value can be found in the published state on the max_heat_setpoint_limit property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_heat_setpoint_limit": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_heat_setpoint_limit": NEW_VALUE}. The minimal value is 5 and the maximum value is 30. The unit of this value is °C.

Min heat setpoint limit (numeric)

Minimum Heating set point limit. Value can be found in the published state on the min_heat_setpoint_limit property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_heat_setpoint_limit": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_heat_setpoint_limit": NEW_VALUE}. The minimal value is 5 and the maximum value is 30. The unit of this value is °C.

Preset (enum)

Preset. Value can be found in the published state on the preset property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"preset": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"preset": NEW_VALUE}. The possible values are: home, away, sleep, vacation, evening, manual.

State (enum)

State. Value can be found in the published state on the state property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}. It's not possible to write (/set) this value. The possible values are: working, idle.

Humidity (numeric)

Measured relative humidity. Value can be found in the published state on the humidity property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Sensor source (enum)

Temperature sensor source. Value can be found in the published state on the sensor_source property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"sensor_source": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"sensor_source": NEW_VALUE}. The possible values are: internal, ntc.

Ntc sensor type (enum)

NTC sensor type (k - KOhm). Value can be found in the published state on the ntc_sensor_type property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"ntc_sensor_type": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"ntc_sensor_type": NEW_VALUE}. The possible values are: ntc_10k, ntc_50k, ntc_100k, unknown.

Window detection (binary)

Enables/disables window detection on the device. Value can be found in the published state on the window_detection property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"window_detection": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"window_detection": NEW_VALUE}. If value equals ON window detection is ON, if OFF OFF.

Power outage memory (binary)

Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_outage_memory property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_outage_memory": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_outage_memory": NEW_VALUE}. If value equals true power outage memory is ON, if false OFF.

Child lock (binary)

Enables/disables physical input on the device. Value can be found in the published state on the child_lock property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"child_lock": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"child_lock": NEW_VALUE}. If value equals LOCK child lock is ON, if UNLOCK OFF.

Hysteresis (numeric)

Hysteresis. Value can be found in the published state on the hysteresis property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"hysteresis": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"hysteresis": NEW_VALUE}. The minimal value is 0 and the maximum value is 3. The unit of this value is °C.

Identify (enum)

Initiate device identification. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"identify": NEW_VALUE}. The possible values are: identify.
