Tuya TS0726_4_gang_scene_switch
Model | TS0726_4_gang_scene_switch |
Vendor | Tuya |
Description | 4 gang switch with scene and backlight |
Exposes | switch (state), countdown, power_on_behavior, backlight_mode, indicator_mode, switch_mode |

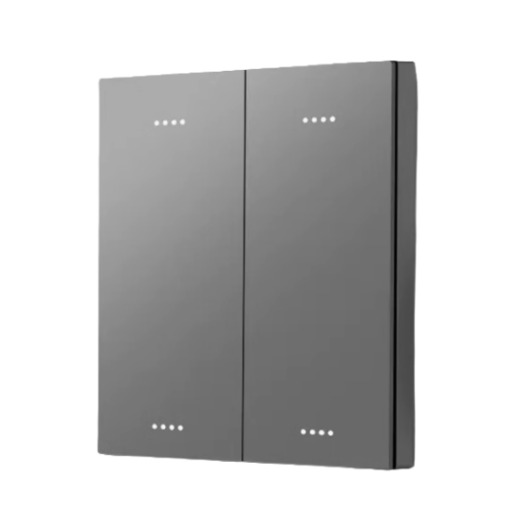

Picture | ![]() |
Options
How to use device type specific configuration
state_action
: State actions will also be published as 'action' when true (default false). The value must betrue
orfalse
Exposes
Switch (l1 endpoint)
The current state of this switch is in the published state under the state_l1
property (value is ON
or OFF
). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"state_l1": "ON"}
, {"state_l1": "OFF"}
or {"state_l1": "TOGGLE"}
. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"state_l1": ""}
.
Switch (l2 endpoint)
The current state of this switch is in the published state under the state_l2
property (value is ON
or OFF
). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"state_l2": "ON"}
, {"state_l2": "OFF"}
or {"state_l2": "TOGGLE"}
. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"state_l2": ""}
.
Switch (l3 endpoint)
The current state of this switch is in the published state under the state_l3
property (value is ON
or OFF
). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"state_l3": "ON"}
, {"state_l3": "OFF"}
or {"state_l3": "TOGGLE"}
. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"state_l3": ""}
.
Switch (l4 endpoint)
The current state of this switch is in the published state under the state_l4
property (value is ON
or OFF
). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"state_l4": "ON"}
, {"state_l4": "OFF"}
or {"state_l4": "TOGGLE"}
. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"state_l4": ""}
.
Countdown (numeric, l1 endpoint)
Countdown to turn device off after a certain time. Value can be found in the published state on the countdown_l1
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"countdown_l1": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"countdown_l1": NEW_VALUE}
. The minimal value is 0
and the maximum value is 43200
. The unit of this value is s
.
Countdown (numeric, l2 endpoint)
Countdown to turn device off after a certain time. Value can be found in the published state on the countdown_l2
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"countdown_l2": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"countdown_l2": NEW_VALUE}
. The minimal value is 0
and the maximum value is 43200
. The unit of this value is s
.
Countdown (numeric, l3 endpoint)
Countdown to turn device off after a certain time. Value can be found in the published state on the countdown_l3
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"countdown_l3": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"countdown_l3": NEW_VALUE}
. The minimal value is 0
and the maximum value is 43200
. The unit of this value is s
.
Countdown (numeric, l4 endpoint)
Countdown to turn device off after a certain time. Value can be found in the published state on the countdown_l4
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"countdown_l4": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"countdown_l4": NEW_VALUE}
. The minimal value is 0
and the maximum value is 43200
. The unit of this value is s
.
Power-on behavior (enum, l1 endpoint)
Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_on_behavior_l1
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"power_on_behavior_l1": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"power_on_behavior_l1": NEW_VALUE}
. The possible values are: off
, previous
, on
.
Power-on behavior (enum, l2 endpoint)
Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_on_behavior_l2
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"power_on_behavior_l2": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"power_on_behavior_l2": NEW_VALUE}
. The possible values are: off
, previous
, on
.
Power-on behavior (enum, l3 endpoint)
Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_on_behavior_l3
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"power_on_behavior_l3": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"power_on_behavior_l3": NEW_VALUE}
. The possible values are: off
, previous
, on
.
Power-on behavior (enum, l4 endpoint)
Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_on_behavior_l4
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"power_on_behavior_l4": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"power_on_behavior_l4": NEW_VALUE}
. The possible values are: off
, previous
, on
.
Backlight mode (binary)
Mode of the backlight. Value can be found in the published state on the backlight_mode
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"backlight_mode": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"backlight_mode": NEW_VALUE}
. If value equals ON
backlight mode is ON, if OFF
OFF.
Indicator mode (enum)
Mode of the indicator light. Value can be found in the published state on the indicator_mode
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"indicator_mode": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"indicator_mode": NEW_VALUE}
. The possible values are: none
, relay
, pos
.
Switch mode (enum, l1 endpoint)
Switch mode l1. Value can be found in the published state on the switch_mode_l1
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"switch_mode_l1": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"switch_mode_l1": NEW_VALUE}
. The possible values are: switch
, scene
.
Switch mode (enum, l2 endpoint)
Switch mode l2. Value can be found in the published state on the switch_mode_l2
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"switch_mode_l2": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"switch_mode_l2": NEW_VALUE}
. The possible values are: switch
, scene
.
Switch mode (enum, l3 endpoint)
Switch mode l3. Value can be found in the published state on the switch_mode_l3
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"switch_mode_l3": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"switch_mode_l3": NEW_VALUE}
. The possible values are: switch
, scene
.
Switch mode (enum, l4 endpoint)
Switch mode l4. Value can be found in the published state on the switch_mode_l4
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"switch_mode_l4": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"switch_mode_l4": NEW_VALUE}
. The possible values are: switch
, scene
.
