Zigbee2MQTT

TuYa TS0601_temperature_humidity_sensor_2

ModelTS0601_temperature_humidity_sensor_2
VendorTuYa
DescriptionTemperature and humidity sensor
Exposestemperature, humidity, battery_state, temperature_unit, linkquality

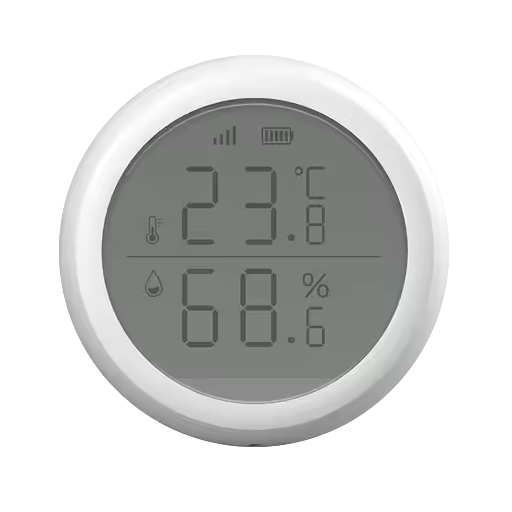

PictureTuYa TS0601_temperature_humidity_sensor_2

Notes

Pairing

Press and hold the pairing button on top for 5 seconds. When the signal icon flashes fast, release the button. It will search 20 seconds for network. The signal icon will stay once connected to indicate successful connection

Pressing more than 10 secons cancels the pairing.

Options

How to use device type specific configuration

  • temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

  • temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.

  • humidity_precision: Number of digits after decimal point for humidity, takes into effect on next report of device. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

  • humidity_calibration: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.

Exposes

Temperature (numeric)

Measured temperature value. Value can be found in the published state on the temperature property. It's not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Humidity (numeric)

Measured relative humidity. Value can be found in the published state on the humidity property. It's not possible to read (/get) or write (/set) this value. The unit of this value is %.

Battery state (enum)

State of the battery. Value can be found in the published state on the battery_state property. It's not possible to read (/get) or write (/set) this value. The possible values are: low, medium, high.

Temperature unit (enum)

Temperature unit. Value can be found in the published state on the temperature_unit property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_unit": NEW_VALUE}. The possible values are: celsius, fahrenheit.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
