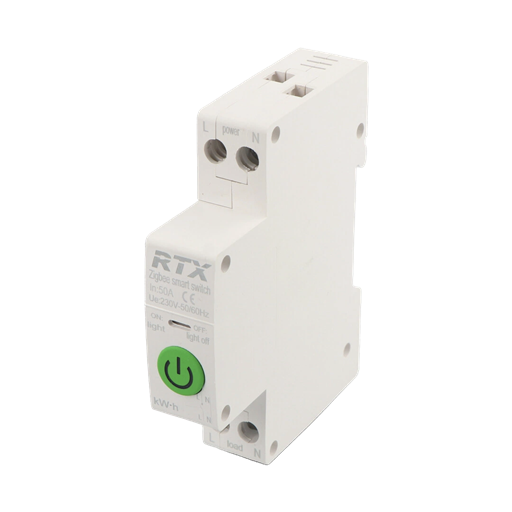

RTX TS0601_RTX_DIN


Model	TS0601_RTX_DIN
Vendor	RTX
Description	Din rail switch
Exposes	switch (state), power, current, voltage, energy, power_on_behavior, temperature, leakage, faults, reclosing_allowed_times, reclosing_enable, timer, clear_energy, status

Options

How to use device type specific configuration

power_calibration: Calibrates the power value (percentual offset), takes into effect on next report of device. The value must be a number.
power_precision: Number of digits after decimal point for power, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3
current_calibration: Calibrates the current value (percentual offset), takes into effect on next report of device. The value must be a number.
current_precision: Number of digits after decimal point for current, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3
voltage_calibration: Calibrates the voltage value (percentual offset), takes into effect on next report of device. The value must be a number.
voltage_precision: Number of digits after decimal point for voltage, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3
energy_calibration: Calibrates the energy value (percentual offset), takes into effect on next report of device. The value must be a number.
energy_precision: Number of digits after decimal point for energy, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3
temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.
temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. It's not possible to read (/get) this value.

Power (numeric)

Instantaneous measured power. Value can be found in the published state on the power property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

Current (numeric)

Instantaneous measured electrical current. Value can be found in the published state on the current property. It's not possible to read (/get) or write (/set) this value. The unit of this value is A.

Voltage (numeric)

Measured electrical potential value. Value can be found in the published state on the voltage property. It's not possible to read (/get) or write (/set) this value. The unit of this value is V.

Energy (numeric)

Sum of consumed energy. Value can be found in the published state on the energy property. It's not possible to read (/get) or write (/set) this value. The unit of this value is kWh.

Power-on behavior (enum)

Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_on_behavior property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_on_behavior": NEW_VALUE}. The possible values are: off, previous, on.

Temperature (numeric)

Current temperature. Value can be found in the published state on the temperature property. It's not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Leakage (numeric)

Current leakage. Value can be found in the published state on the leakage property. It's not possible to read (/get) or write (/set) this value. The unit of this value is mA.

Faults (list)

List of current faults. Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"faults": ["short_circuit", "surge", "overload", "leakage_current", "temperature", "fire", "high_power", "self_test", "over_current", "unbalance", "over_voltage", "under_voltage", "miss_phase", "outage", "magnetism", "credit", "no_balance"]}

Reclosing allowed times (numeric)

Reclosing tries. Value can be found in the published state on the reclosing_allowed_times property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"reclosing_allowed_times": NEW_VALUE}. The minimal value is 0 and the maximum value is 30.

Auto reclosing (binary)

Value can be found in the published state on the reclosing_enable property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"reclosing_enable": NEW_VALUE}. If value equals ON auto reclosing is ON, if OFF OFF.

Timer (numeric)

Value can be found in the published state on the timer property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"timer": NEW_VALUE}. The minimal value is 0 and the maximum value is 86400. The unit of this value is s.

Clear energy (binary)

Value can be found in the published state on the clear_energy property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"clear_energy": NEW_VALUE}. If value equals ON clear energy is ON, if OFF OFF.

Status (text)

Status. Value can be found in the published state on the status property. It's not possible to read (/get) or write (/set) this value.
