Tuya TS0001_fingerbot
Model | TS0001_fingerbot |
Vendor | Tuya |
Description | Zigbee fingerbot plus |
Exposes | switch (state), battery, mode, lower, upper, delay, reverse, touch, linkquality |

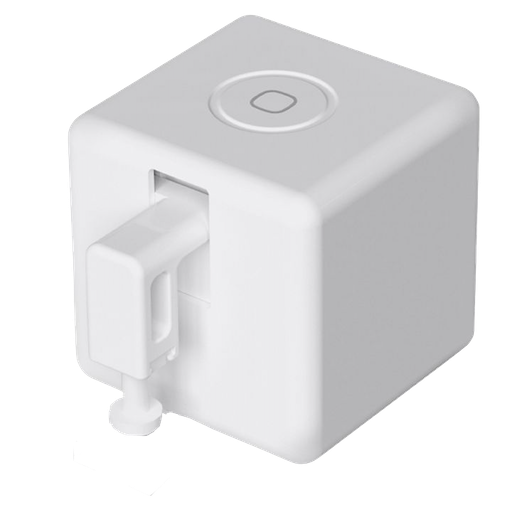

Picture |
Options
How to use device type specific configuration
state_action
: State actions will also be published as 'action' when true (default false). The value must betrue
orfalse
Exposes
Switch
The current state of this switch is in the published state under the state
property (value is ON
or OFF
). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"state": "ON"}
, {"state": "OFF"}
or {"state": "TOGGLE"}
. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"state": ""}
.
On with timed off
When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time
to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time
property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depends on the switch firmware. Some devices might require both on_time
and off_wait_time
to work Examples : {"state" : "ON", "on_time": 300}
, {"state" : "ON", "on_time": 300, "off_wait_time": 120}
.
Battery (numeric)
Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery
property. It's not possible to read (/get
) or write (/set
) this value. The minimal value is 0
and the maximum value is 100
. The unit of this value is %
.
Mode (enum)
Working mode. Value can be found in the published state on the mode
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"mode": NEW_VALUE}
. The possible values are: click
, switch
, program
.
Lower (numeric)
Down movement limit. Value can be found in the published state on the lower
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"lower": NEW_VALUE}
. The minimal value is 50
and the maximum value is 100
. The unit of this value is %
.
Upper (numeric)
Up movement limit. Value can be found in the published state on the upper
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"upper": NEW_VALUE}
. The minimal value is 0
and the maximum value is 50
. The unit of this value is %
.
Delay (numeric)
Sustain time. Value can be found in the published state on the delay
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"delay": NEW_VALUE}
. The minimal value is 0
and the maximum value is 10
. The unit of this value is s
.
Reverse (binary)
Reverse. Value can be found in the published state on the reverse
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"reverse": NEW_VALUE}
. If value equals ON
reverse is ON, if OFF
OFF.
Touch (binary)
Touch controll. Value can be found in the published state on the touch
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"touch": NEW_VALUE}
. If value equals ON
touch is ON, if OFF
OFF.
Linkquality (numeric)
Link quality (signal strength). Value can be found in the published state on the linkquality
property. It's not possible to read (/get
) or write (/set
) this value. The minimal value is 0
and the maximum value is 255
. The unit of this value is lqi
.
