Slacky-DIY THERM_SLACKY_DIY_R06
Model | THERM_SLACKY_DIY_R06 |
Vendor | Slacky-DIY |
Description | Tuya Thermostat for Floor Heating with custom Firmware |
Exposes | child_lock, sound, inversion, brightness_level, programming_operation_mode, sensor, histeresis_temperature, max_heat_setpoint_limit, frost_protect_on_off, heat_protect, climate (local_temperature, occupied_heating_setpoint, local_temperature_calibration, system_mode, running_state, schedule), schedule_monday, schedule_sunday, schedule_mode, settings_reset |

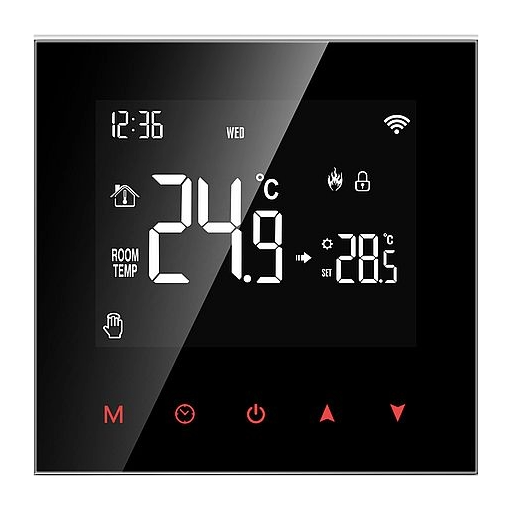

Picture | ![]() |
OTA updates
This device supports OTA updates, for more information see OTA updates.
Options
How to use device type specific configuration
thermostat_unit
: Controls the temperature unit of the thermostat (default celsius). The value must be one ofcelsius
,fahrenheit
transition
: Controls the transition time (in seconds) of on/off, brightness, color temperature (if applicable) and color (if applicable) changes. Defaults to0
(no transition). The value must be a number with a minimum value of0
Exposes
Child lock (binary)
Enables/disables physical input on the device. Value can be found in the published state on the child_lock
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"child_lock": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"child_lock": NEW_VALUE}
. If value equals LOCK
child lock is ON, if UNLOCK
OFF.
Sound (binary)
Sound On/Off. Value can be found in the published state on the sound
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"sound": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"sound": NEW_VALUE}
. If value equals On
sound is ON, if Off
OFF.
Inversion (binary)
Inversion of the output. Value can be found in the published state on the inversion
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"inversion": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"inversion": NEW_VALUE}
. If value equals On
inversion is ON, if Off
OFF.
Brightness level (enum)
Screen brightness. Value can be found in the published state on the brightness_level
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"brightness_level": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"brightness_level": NEW_VALUE}
. The possible values are: Off
, Low
, Medium
, High
.
Programming operation mode (enum)
Setpoint or Schedule mode. Value can be found in the published state on the programming_operation_mode
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"programming_operation_mode": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"programming_operation_mode": NEW_VALUE}
. The possible values are: setpoint
, schedule
.
Sensor (enum)
Select temperature sensor to use. Value can be found in the published state on the sensor
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"sensor": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"sensor": NEW_VALUE}
. The possible values are: Inner (IN)
, All (AL)
, Outer (OU)
.
Histeresis temperature (numeric)
The delta between local_temperature and current_heating_setpoint to trigger activity. Value can be found in the published state on the histeresis_temperature
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"histeresis_temperature": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"histeresis_temperature": NEW_VALUE}
. The minimal value is 0.5
and the maximum value is 10
. The unit of this value is °C
.
Max heat setpoint limit (numeric)
Maximum Heating set point limit. Value can be found in the published state on the max_heat_setpoint_limit
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"max_heat_setpoint_limit": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"max_heat_setpoint_limit": NEW_VALUE}
. The minimal value is 15
and the maximum value is 95
. The unit of this value is °C
.
Frost protect on off (binary)
Frost protection. Value can be found in the published state on the frost_protect_on_off
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"frost_protect_on_off": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"frost_protect_on_off": NEW_VALUE}
. If value equals On
frost protect on off is ON, if Off
OFF.
Heat protect (numeric)
Protection against maximum heating temperature. Value can be found in the published state on the heat_protect
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"heat_protect": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"heat_protect": NEW_VALUE}
. The minimal value is 35
and the maximum value is 60
. The unit of this value is °C
.
Climate
This climate device supports the following features: local_temperature
, occupied_heating_setpoint
, local_temperature_calibration
, system_mode
, running_state
, schedule
.
occupied_heating_setpoint
: Temperature setpoint. To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"occupied_heating_setpoint": VALUE}
whereVALUE
is the °C between5
and45
. To read send a message tozigbee2mqtt/FRIENDLY_NAME/get
with payload{"occupied_heating_setpoint": ""}
.local_temperature
: Current temperature measured on the device (in °C). To read send a message tozigbee2mqtt/FRIENDLY_NAME/get
with payload{"local_temperature": ""}
.system_mode
: Mode of this device. To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"system_mode": VALUE}
whereVALUE
is one of:off
,heat
. To read send a message tozigbee2mqtt/FRIENDLY_NAME/get
with payload{"system_mode": ""}
.running_state
: The current running state. Possible values are:idle
,heat
. Reading (/get
) this attribute is not possible.local_temperature_calibration
: Offset to add/subtract to the local temperature. To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"local_temperature_calibration": VALUE}.
To read send a message tozigbee2mqtt/FRIENDLY_NAME/get
with payload{"local_temperature": ""}
.The minimal value is-9.9
and the maximum value is9.9
with a step size of0.1
.
Schedule monday (text)
Schedule for the working week. Value can be found in the published state on the schedule_monday
property. It's not possible to read (/get
) or write (/set
) this value.
Schedule sunday (text)
Weekend schedule. Value can be found in the published state on the schedule_sunday
property. It's not possible to read (/get
) or write (/set
) this value.
Schedule mode (enum)
Schedule mode. Value can be found in the published state on the schedule_mode
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"schedule_mode": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"schedule_mode": NEW_VALUE}
. The possible values are: Off
, 5+2
, 6+1
, 7
.
Settings reset (enum)
Default settings. Value will not be published in the state. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"settings_reset": NEW_VALUE}
. The possible values are: Default
.
