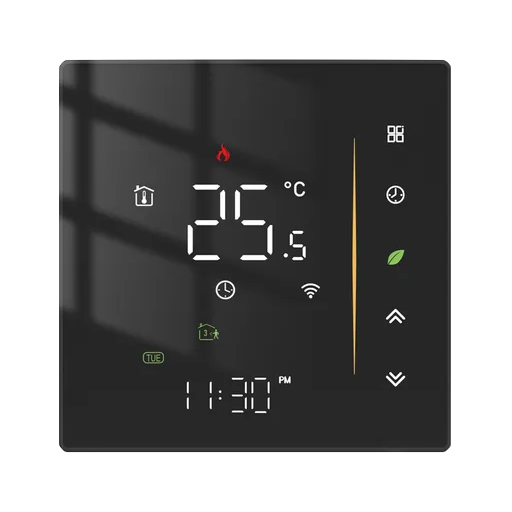

Slacky-DIY THERM_SLACKY_DIY_R02

Model	THERM_SLACKY_DIY_R02
Vendor	Slacky-DIY
Description	Tuya Thermostat for Floor Heating with custom Firmware
Exposes	child_lock, programming_operation_mode, sensor, deadzone_temperature, min_heat_setpoint_limit, max_heat_setpoint_limit, frost_protect, heat_protect, outdoor_temperature, climate (local_temperature, occupied_heating_setpoint, local_temperature_calibration, system_mode, running_state, schedule), schedule_monday, schedule_tuesday, schedule_wednesday, schedule_thursday, schedule_friday, schedule_saturday, schedule_sunday

Original project description

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

• thermostat_unit: Controls the temperature unit of the thermostat (default celsius). The value must be one of celsius, fahrenheit

• transition: Controls the transition time (in seconds) of on/off, brightness, color temperature (if applicable) and color (if applicable) changes. Defaults to 0 (no transition). The value must be a number with a minimum value of 0

Exposes

Child lock (binary)

Enables/disables physical input on the device. Value can be found in the published state on the child_lock property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"child_lock": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"child_lock": NEW_VALUE}. If value equals LOCK child lock is ON, if UNLOCK OFF.

Programming operation mode (enum)

Setpoint or Schedule mode. Value can be found in the published state on the programming_operation_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"programming_operation_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"programming_operation_mode": NEW_VALUE}. The possible values are: setpoint, schedule.

Sensor (enum)

Select temperature sensor to use. Value can be found in the published state on the sensor property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"sensor": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"sensor": NEW_VALUE}. The possible values are: Inner (IN), All (AL), Outer (OU).

Deadzone temperature (numeric)

The delta between local_temperature and current_heating_setpoint to trigger activity. Value can be found in the published state on the deadzone_temperature property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"deadzone_temperature": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"deadzone_temperature": NEW_VALUE}. The minimal value is 1 and the maximum value is 5. The unit of this value is °C.

Min heat setpoint limit (numeric)

Minimum Heating set point limit. Value can be found in the published state on the min_heat_setpoint_limit property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_heat_setpoint_limit": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_heat_setpoint_limit": NEW_VALUE}. The minimal value is 5 and the maximum value is 15. The unit of this value is °C.

Max heat setpoint limit (numeric)

Maximum Heating set point limit. Value can be found in the published state on the max_heat_setpoint_limit property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_heat_setpoint_limit": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_heat_setpoint_limit": NEW_VALUE}. The minimal value is 15 and the maximum value is 45. The unit of this value is °C.

Frost protect (numeric)

Protection against minimum freezing temperature. Value can be found in the published state on the frost_protect property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"frost_protect": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"frost_protect": NEW_VALUE}. The minimal value is 0 and the maximum value is 10. The unit of this value is °C.

Heat protect (numeric)

Protection against maximum heating temperature. Value can be found in the published state on the heat_protect property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"heat_protect": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"heat_protect": NEW_VALUE}. The minimal value is 25 and the maximum value is 70. The unit of this value is °C.

Outdoor temperature (numeric)

Current temperature measured from the floor outer sensor. Value can be found in the published state on the outdoor_temperature property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"outdoor_temperature": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Climate

This climate device supports the following features: local_temperature, occupied_heating_setpoint, local_temperature_calibration, system_mode, running_state, schedule.

• occupied_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupied_heating_setpoint": VALUE} where VALUE is the °C between 5 and 45. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupied_heating_setpoint": ""}.
• local_temperature: Current temperature measured on the device (in °C). To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature": ""}.
• system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode": VALUE} where VALUE is one of: off, heat. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode": ""}.
• running_state: The current running state. Possible values are: idle, heat. Reading (/get) this attribute is not possible.
• local_temperature_calibration: Offset to add/subtract to the local temperature. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"local_temperature_calibration": VALUE}.To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature": ""}.The minimal value is -9 and the maximum value is 9 with a step size of 1.

Schedule monday (text)

Monday's schedule. Value can be found in the published state on the schedule_monday property. It's not possible to read (/get) or write (/set) this value.

Schedule tuesday (text)

Tuesday's schedule. Value can be found in the published state on the schedule_tuesday property. It's not possible to read (/get) or write (/set) this value.

Schedule wednesday (text)

Wednesday's schedule. Value can be found in the published state on the schedule_wednesday property. It's not possible to read (/get) or write (/set) this value.

Schedule thursday (text)

Thursday's schedule. Value can be found in the published state on the schedule_thursday property. It's not possible to read (/get) or write (/set) this value.

Schedule friday (text)

Friday's schedule. Value can be found in the published state on the schedule_friday property. It's not possible to read (/get) or write (/set) this value.

Schedule saturday (text)

Saturday's schedule. Value can be found in the published state on the schedule_saturday property. It's not possible to read (/get) or write (/set) this value.

Schedule sunday (text)

Sunday's schedule. Value can be found in the published state on the schedule_sunday property. It's not possible to read (/get) or write (/set) this value.
