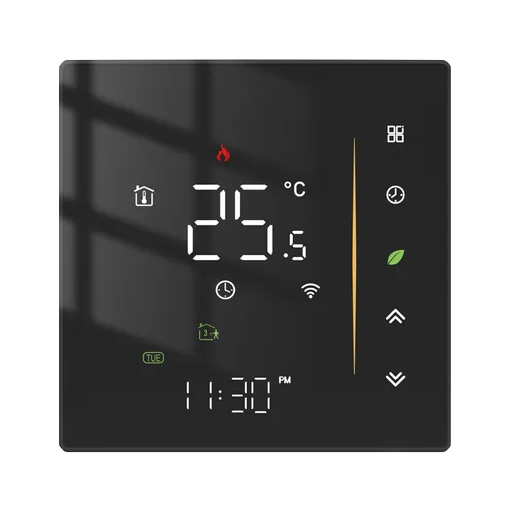

Slacky-DIY THERM_SLACKY_DIY_R01

Model	THERM_SLACKY_DIY_R01
Vendor	Slacky-DIY
Description	Tuya Thermostat for Floor Heating with custom Firmware
Exposes	child_lock, programming_operation_mode, sensor, deadzone_temperature, max_heat_setpoint_limit, climate (local_temperature, occupied_heating_setpoint, local_temperature_calibration, system_mode, running_state, schedule), schedule_monday, schedule_saturday, schedule_sunday

Original project description

Pairing Procedure

1. Press the green leaf button to power on the device.
2. Press the green leaf button again to switch the device to standby mode.
3. Press and hold the Down (double arrow) button for approximately 8 seconds, until the wireless icon begins flashing on the display.

The flashing wireless icon indicates that the device is now in pairing mode and ready to be connected to a network or controller.

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

• thermostat_unit: Controls the temperature unit of the thermostat (default celsius). The value must be one of celsius, fahrenheit

• transition: Controls the transition time (in seconds) of on/off, brightness, color temperature (if applicable) and color (if applicable) changes. Defaults to 0 (no transition). The value must be a number with a minimum value of 0

Exposes

Child lock (binary)

Enables/disables physical input on the device. Value can be found in the published state on the child_lock property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"child_lock": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"child_lock": NEW_VALUE}. If value equals LOCK child lock is ON, if UNLOCK OFF.

Programming operation mode (enum)

Setpoint or Schedule mode. Value can be found in the published state on the programming_operation_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"programming_operation_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"programming_operation_mode": NEW_VALUE}. The possible values are: setpoint, schedule.

Sensor (enum)

Select temperature sensor to use. Value can be found in the published state on the sensor property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"sensor": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"sensor": NEW_VALUE}. The possible values are: Inner (IN), All (AL), Outer (OU).

Deadzone temperature (numeric)

The delta between local_temperature and current_heating_setpoint to trigger activity. Value can be found in the published state on the deadzone_temperature property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"deadzone_temperature": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"deadzone_temperature": NEW_VALUE}. The minimal value is 1 and the maximum value is 5. The unit of this value is °C.

Max heat setpoint limit (numeric)

Maximum Heating set point limit. Value can be found in the published state on the max_heat_setpoint_limit property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_heat_setpoint_limit": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_heat_setpoint_limit": NEW_VALUE}. The minimal value is 15 and the maximum value is 45. The unit of this value is °C.

Climate

This climate device supports the following features: local_temperature, occupied_heating_setpoint, local_temperature_calibration, system_mode, running_state, schedule.

• occupied_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupied_heating_setpoint": VALUE} where VALUE is the °C between 5 and 45. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupied_heating_setpoint": ""}.
• local_temperature: Current temperature measured on the device (in °C). To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature": ""}.
• system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode": VALUE} where VALUE is one of: off, heat. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode": ""}.
• running_state: The current running state. Possible values are: idle, heat. Reading (/get) this attribute is not possible.
• local_temperature_calibration: Offset to add/subtract to the local temperature. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"local_temperature_calibration": VALUE}.To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature": ""}.The minimal value is -9 and the maximum value is 9 with a step size of 1.

Schedule monday (text)

Schedule for the working week. Value can be found in the published state on the schedule_monday property. It's not possible to read (/get) or write (/set) this value.

Schedule saturday (text)

Saturday's schedule. Value can be found in the published state on the schedule_saturday property. It's not possible to read (/get) or write (/set) this value.

Schedule sunday (text)

Sunday's schedule. Value can be found in the published state on the schedule_sunday property. It's not possible to read (/get) or write (/set) this value.
