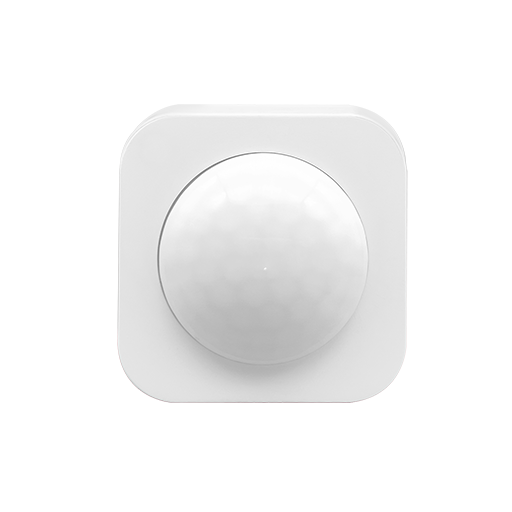

Lincukoo SZLM04U


Model	SZLM04U
Vendor	Lincukoo
Description	Motion and brightness sensor
Exposes	occupancy, illuminance, battery, usb_power, switch, fading_time

Options

How to use device type specific configuration

illuminance_calibration: Calibrates the illuminance value (percentual offset), takes into effect on next report of device. The value must be a number.

Indicates whether the device detected occupancy. Value can be found in the published state on the occupancy property. It's not possible to read (/get) or write (/set) this value. If value equals true occupancy is ON, if false OFF.

Illuminance (numeric)

Measured illuminance. Value can be found in the published state on the illuminance property. It's not possible to read (/get) or write (/set) this value. The unit of this value is lx.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Usb power (binary)

check usb power plug in or not. Value can be found in the published state on the usb_power property. It's not possible to read (/get) or write (/set) this value. If value equals ON usb power is ON, if OFF OFF.

Switch (binary)

enable or disable the sensor. Value can be found in the published state on the switch property. It's not possible to read (/get) or write (/set) this value. If value equals ON switch is ON, if OFF OFF.

Fading time (numeric)

Fading time. Value can be found in the published state on the fading_time property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"fading_time": NEW_VALUE}. The minimal value is 5 and the maximum value is 300. The unit of this value is s.
