Sunricher SR-ZG2819S-DIM

ModelSR-ZG2819S-DIM
VendorSunricher
DescriptionZigBee dim remote
Exposesidentify, battery, action

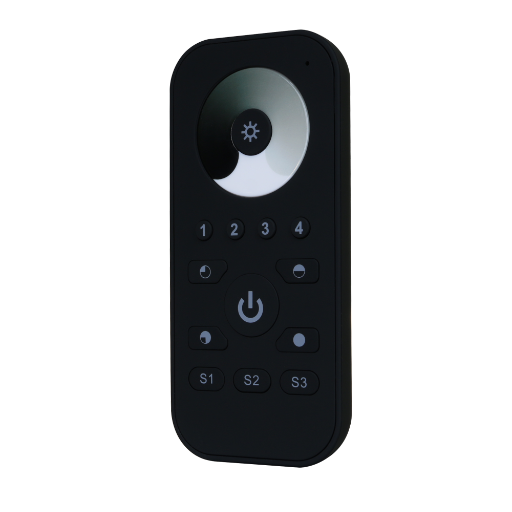

PictureSunricher SR-ZG2819S-DIM

Options

How to use device type specific configuration

  • identify_timeout: Sets the duration of the identification procedure in seconds (i.e., how long the device would flash).The value ranges from 1 to 30 seconds (default: 3). The value must be a number with a minimum value of 1 and with a with a maximum value of 30

  • simulated_brightness: Simulate a brightness value. If this device provides a brightness_move_up or brightness_move_down action it is possible to specify the update interval and delta. The action_brightness_delta indicates the delta for each interval. Example:

simulated_brightness:
  delta: 20 # delta per interval, default = 20
  interval: 200 # interval in milliseconds, default = 200

Exposes

Identify (enum)

Initiate device identification. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"identify": NEW_VALUE}. The possible values are: identify.

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: on_1, on_2, on_3, on_4, off_1, off_2, off_3, off_4, toggle_1, toggle_2, toggle_3, toggle_4, brightness_move_to_level_1, brightness_move_to_level_2, brightness_move_to_level_3, brightness_move_to_level_4, brightness_move_up_1, brightness_move_up_2, brightness_move_up_3, brightness_move_up_4, brightness_move_down_1, brightness_move_down_2, brightness_move_down_3, brightness_move_down_4, brightness_step_up_1, brightness_step_up_2, brightness_step_up_3, brightness_step_up_4, brightness_step_down_1, brightness_step_down_2, brightness_step_down_3, brightness_step_down_4, brightness_stop_1, brightness_stop_2, brightness_stop_3, brightness_stop_4, color_temperature_move_stop_1, color_temperature_move_stop_2, color_temperature_move_stop_3, color_temperature_move_stop_4, color_temperature_move_up_1, color_temperature_move_up_2, color_temperature_move_up_3, color_temperature_move_up_4, color_temperature_move_down_1, color_temperature_move_down_2, color_temperature_move_down_3, color_temperature_move_down_4, color_temperature_step_up_1, color_temperature_step_up_2, color_temperature_step_up_3, color_temperature_step_up_4, color_temperature_step_down_1, color_temperature_step_down_2, color_temperature_step_down_3, color_temperature_step_down_4, enhanced_move_to_hue_and_saturation_1, enhanced_move_to_hue_and_saturation_2, enhanced_move_to_hue_and_saturation_3, enhanced_move_to_hue_and_saturation_4, move_to_hue_and_saturation_1, move_to_hue_and_saturation_2, move_to_hue_and_saturation_3, move_to_hue_and_saturation_4, color_hue_step_up_1, color_hue_step_up_2, color_hue_step_up_3, color_hue_step_up_4, color_hue_step_down_1, color_hue_step_down_2, color_hue_step_down_3, color_hue_step_down_4, color_saturation_step_up_1, color_saturation_step_up_2, color_saturation_step_up_3, color_saturation_step_up_4, color_saturation_step_down_1, color_saturation_step_down_2, color_saturation_step_down_3, color_saturation_step_down_4, color_loop_set_1, color_loop_set_2, color_loop_set_3, color_loop_set_4, color_temperature_move_1, color_temperature_move_2, color_temperature_move_3, color_temperature_move_4, color_move_1, color_move_2, color_move_3, color_move_4, hue_move_1, hue_move_2, hue_move_3, hue_move_4, hue_stop_1, hue_stop_2, hue_stop_3, hue_stop_4, move_to_saturation_1, move_to_saturation_2, move_to_saturation_3, move_to_saturation_4, move_to_hue_1, move_to_hue_2, move_to_hue_3, move_to_hue_4, recall_1, recall_2, recall_3, recall_4, store_1, store_2, store_3, store_4, add_1, add_2, add_3, add_4, remove_1, remove_2, remove_3, remove_4, remove_all_1, remove_all_2, remove_all_3, remove_all_4.
