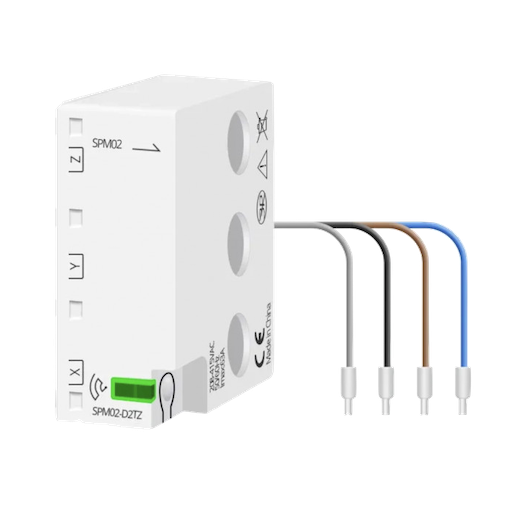

BITUO TECHNIK SPM02-U02

Model	SPM02-U02
Vendor	BITUO TECHNIK
Description	Smart energy monitor for 3P+N system
Exposes	power_reactive, power_reactive_phase_b, power_reactive_phase_c, power_apparent, power_apparent_phase_b, power_apparent_phase_c, power_factor_phase_b, power_factor_phase_c, total_power, total_power_reactive, total_power_apparent, power, voltage, ac_frequency, power_factor, current, energy, produced_energy, power_phase_b, power_phase_c, voltage_phase_b, voltage_phase_c, current_phase_b, current_phase_c, current_neutral

Options

How to use device type specific configuration

• power_calibration: Calibrates the power value (percentual offset), takes into effect on next report of device. The value must be a number.

• power_precision: Number of digits after decimal point for power, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

• voltage_calibration: Calibrates the voltage value (percentual offset), takes into effect on next report of device. The value must be a number.

• voltage_precision: Number of digits after decimal point for voltage, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

• ac_frequency_calibration: Calibrates the ac_frequency value (absolute offset), takes into effect on next report of device. The value must be a number.

• ac_frequency_precision: Number of digits after decimal point for ac_frequency, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

• current_calibration: Calibrates the current value (percentual offset), takes into effect on next report of device. The value must be a number.

• current_precision: Number of digits after decimal point for current, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

• energy_calibration: Calibrates the energy value (percentual offset), takes into effect on next report of device. The value must be a number.

• energy_precision: Number of digits after decimal point for energy, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

• power_phase_b_calibration: Calibrates the power_phase_b value (percentual offset), takes into effect on next report of device. The value must be a number.

• power_phase_b_precision: Number of digits after decimal point for power_phase_b, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

• power_phase_c_calibration: Calibrates the power_phase_c value (percentual offset), takes into effect on next report of device. The value must be a number.

• power_phase_c_precision: Number of digits after decimal point for power_phase_c, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

• voltage_phase_b_calibration: Calibrates the voltage_phase_b value (percentual offset), takes into effect on next report of device. The value must be a number.

• voltage_phase_b_precision: Number of digits after decimal point for voltage_phase_b, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

• voltage_phase_c_calibration: Calibrates the voltage_phase_c value (percentual offset), takes into effect on next report of device. The value must be a number.

• voltage_phase_c_precision: Number of digits after decimal point for voltage_phase_c, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

• current_phase_b_calibration: Calibrates the current_phase_b value (percentual offset), takes into effect on next report of device. The value must be a number.

• current_phase_b_precision: Number of digits after decimal point for current_phase_b, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

• current_phase_c_calibration: Calibrates the current_phase_c value (percentual offset), takes into effect on next report of device. The value must be a number.

• current_phase_c_precision: Number of digits after decimal point for current_phase_c, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

• current_neutral_calibration: Calibrates the current_neutral value (percentual offset), takes into effect on next report of device. The value must be a number.

• current_neutral_precision: Number of digits after decimal point for current_neutral, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

Exposes

Power reactive (numeric)

Instantaneous measured reactive power. Value can be found in the published state on the power_reactive property. It's not possible to read (/get) or write (/set) this value. The unit of this value is VAR.

Power reactive phase b (numeric)

Instantaneous measured reactive power on phase B. Value can be found in the published state on the power_reactive_phase_b property. It's not possible to read (/get) or write (/set) this value. The unit of this value is VAR.

Power reactive phase c (numeric)

Instantaneous measured reactive power on phase C. Value can be found in the published state on the power_reactive_phase_c property. It's not possible to read (/get) or write (/set) this value. The unit of this value is VAR.

Power apparent (numeric)

Instantaneous measured apparent power. Value can be found in the published state on the power_apparent property. It's not possible to read (/get) or write (/set) this value. The unit of this value is VA.

Power apparent phase b (numeric)

Instantaneous measured apparent power on phase B. Value can be found in the published state on the power_apparent_phase_b property. It's not possible to read (/get) or write (/set) this value. The unit of this value is VA.

Power apparent phase c (numeric)

Instantaneous measured apparent power on phase C. Value can be found in the published state on the power_apparent_phase_c property. It's not possible to read (/get) or write (/set) this value. The unit of this value is VA.

Power factor phase b (numeric)

Instantaneous measured power factor on phase B. Value can be found in the published state on the power_factor_phase_b property. It's not possible to read (/get) or write (/set) this value.

Power factor phase c (numeric)

Instantaneous measured power factor on phase C. Value can be found in the published state on the power_factor_phase_c property. It's not possible to read (/get) or write (/set) this value.

Total power (numeric)

Total Active Power. Value can be found in the published state on the total_power property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

Total power reactive (numeric)

Total Reactive Power. Value can be found in the published state on the total_power_reactive property. It's not possible to read (/get) or write (/set) this value. The unit of this value is VAR.

Total power apparent (numeric)

Total Apparent Power. Value can be found in the published state on the total_power_apparent property. It's not possible to read (/get) or write (/set) this value. The unit of this value is VA.

Power (numeric)

Instantaneous measured power. Value can be found in the published state on the power property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power": ""}. It's not possible to write (/set) this value. The unit of this value is W.

Voltage (numeric)

Measured electrical potential value. Value can be found in the published state on the voltage property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"voltage": ""}. It's not possible to write (/set) this value. The unit of this value is V.

AC frequency (numeric)

Measured electrical AC frequency. Value can be found in the published state on the ac_frequency property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"ac_frequency": ""}. It's not possible to write (/set) this value. The unit of this value is Hz.

Power factor (numeric)

Instantaneous measured power factor. Value can be found in the published state on the power_factor property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_factor": ""}. It's not possible to write (/set) this value.

Current (numeric)

Instantaneous measured electrical current. Value can be found in the published state on the current property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"current": ""}. It's not possible to write (/set) this value. The unit of this value is A.

Energy (numeric)

Sum of consumed energy. Value can be found in the published state on the energy property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"energy": ""}. It's not possible to write (/set) this value. The unit of this value is kWh.

Produced energy (numeric)

Sum of produced energy. Value can be found in the published state on the produced_energy property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"produced_energy": ""}. It's not possible to write (/set) this value. The unit of this value is kWh.

Power phase b (numeric)

Instantaneous measured power on phase B. Value can be found in the published state on the power_phase_b property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_phase_b": ""}. It's not possible to write (/set) this value. The unit of this value is W.

Power phase c (numeric)

Instantaneous measured power on phase C. Value can be found in the published state on the power_phase_c property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_phase_c": ""}. It's not possible to write (/set) this value. The unit of this value is W.

Voltage phase B (numeric)

Measured electrical potential value on phase B. Value can be found in the published state on the voltage_phase_b property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"voltage_phase_b": ""}. It's not possible to write (/set) this value. The unit of this value is V.

Voltage phase C (numeric)

Measured electrical potential value on phase C. Value can be found in the published state on the voltage_phase_c property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"voltage_phase_c": ""}. It's not possible to write (/set) this value. The unit of this value is V.

Current phase B (numeric)

Instantaneous measured electrical current on phase B. Value can be found in the published state on the current_phase_b property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"current_phase_b": ""}. It's not possible to write (/set) this value. The unit of this value is A.

Current phase C (numeric)

Instantaneous measured electrical current on phase C. Value can be found in the published state on the current_phase_c property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"current_phase_c": ""}. It's not possible to write (/set) this value. The unit of this value is A.

Current neutral (numeric)

Instantaneous measured electrical current on neutral. Value can be found in the published state on the current_neutral property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"current_neutral": ""}. It's not possible to write (/set) this value. The unit of this value is A.
