Zigbee2MQTT

SONOFF SNZB-03P

ModelSNZB-03P
VendorSONOFF
DescriptionZigbee PIR sensor
Exposesoccupancy, battery_low, battery, motion_timeout, illumination, linkquality

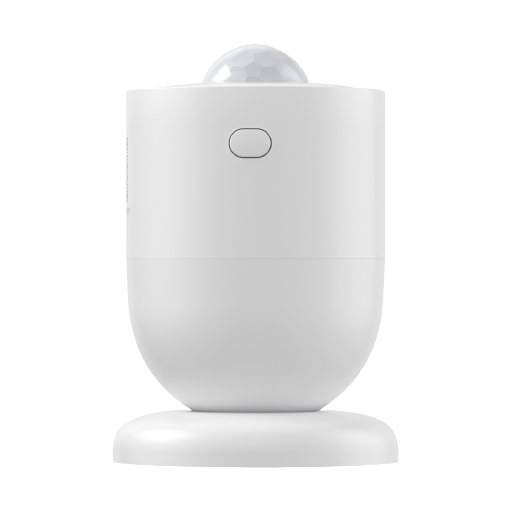

PictureSONOFF SNZB-03P

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

  • no_occupancy_since: Sends a message after the last time no occupancy (occupancy: false) was detected. When setting this for example to [10, 60] a {"no_occupancy_since": 10} will be send after 10 seconds and a {"no_occupancy_since": 60} after 60 seconds. The value must be a list of [object Object].

Exposes

Occupancy (binary)

Indicates whether the device detected occupancy. Value can be found in the published state on the occupancy property. It's not possible to read (/get) or write (/set) this value. If value equals true occupancy is ON, if false OFF.

Battery low (binary)

Indicates if the battery of this device is almost empty. Value can be found in the published state on the battery_low property. It's not possible to read (/get) or write (/set) this value. If value equals true battery low is ON, if false OFF.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Motion timeout (numeric)

Unoccupied to occupied delay. Value can be found in the published state on the motion_timeout property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"motion_timeout": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"motion_timeout": NEW_VALUE}. The minimal value is 5 and the maximum value is 60.

Illumination (enum)

Only updated when occupancy is detected. Value can be found in the published state on the illumination property. It's not possible to read (/get) or write (/set) this value. The possible values are: dim, bright.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
