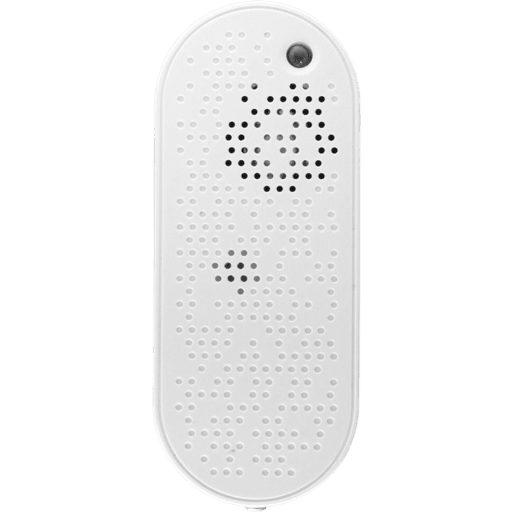

Frient SIRZB-112


Model	SIRZB-112
Vendor	Frient
Description	Customizable siren
Exposes	switch (state), battery, alarm_alarm_1, alarm_alarm_2, tamper, battery_low, warning

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depends on the switch firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Alarm alarm 1 (binary)

Indicates whether the alarm is triggered (alarm_1). Value can be found in the published state on the alarm_alarm_1 property. It's not possible to read (/get) or write (/set) this value. If value equals true alarm alarm 1 is ON, if false OFF.

Alarm alarm 2 (binary)

Indicates whether the alarm is triggered (alarm_2). Value can be found in the published state on the alarm_alarm_2 property. It's not possible to read (/get) or write (/set) this value. If value equals true alarm alarm 2 is ON, if false OFF.

Tamper (binary)

Indicates whether the device is tampered. Value can be found in the published state on the tamper property. It's not possible to read (/get) or write (/set) this value. If value equals true tamper is ON, if false OFF.

Battery low (binary)

Indicates whether the battery of the device is almost empty. Value can be found in the published state on the battery_low property. It's not possible to read (/get) or write (/set) this value. If value equals true battery low is ON, if false OFF.

Warning (composite)

Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"warning": {"mode": VALUE, "level": VALUE, "strobe_level": VALUE, "strobe": VALUE, "strobe_duty_cycle": VALUE, "duration": VALUE}}

mode (enum): Mode of the warning (sound effect) allowed values: stop, burglar, fire, emergency, police_panic, fire_panic, emergency_panic
level (enum): Sound level allowed values: low, medium, high, very_high
strobe_level (enum): Intensity of the strobe allowed values: low, medium, high, very_high
strobe (binary): Turn on/off the strobe (light) during warning allowed values: true or false
strobe_duty_cycle (numeric): Length of the flash cycle max value is 10
duration (numeric): Duration in seconds of the alarm unit is s
