NodOn SIN-4-RS-20_PRO

ModelSIN-4-RS-20_PRO
VendorNodOn
DescriptionRoller shutter relay switch
Exposescover (state, position, tilt), cover_mode, calibration_vertical_run_time_up, calibration_vertical_run_time_down, calibration_rotation_run_time_up, calibration_rotation_run_time_down, linkquality

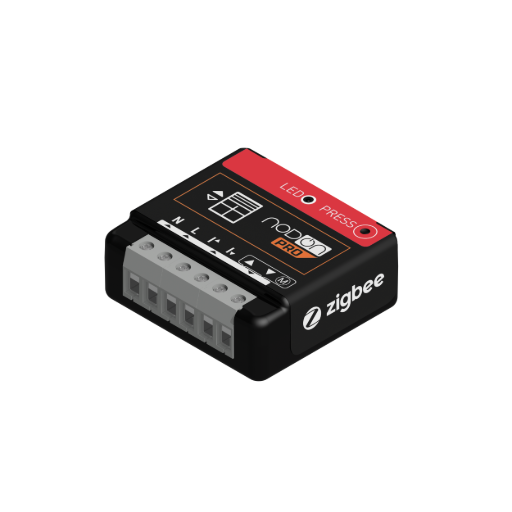

PictureNodOn SIN-4-RS-20_PRO

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

  • invert_cover: Inverts the cover position, false: open=100,close=0, true: open=0,close=100 (default false). The value must be true or false

  • cover_position_tilt_disable_report: Do not publish set cover target position as a normal 'position' value (default false). The value must be true or false

Exposes

Cover

The current state of this cover is in the published state under the state property (value is OPEN or CLOSE). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "OPEN"}, {"state": "CLOSE"}, {"state": "STOP"}. It's not possible to read (/get) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position": VALUE} where VALUE is a number between 0 and 100. To change the tilt publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"tilt": VALUE} where VALUE is a number between 0 and 100.

Cover mode (composite)

Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"cover_mode": {"reversed": VALUE, "calibration": VALUE, "maintenance": VALUE, "led": VALUE}} To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"cover_mode": ""}.

  • reversed (binary): Reversal of the motor rotating direction allowed values: true or false
  • calibration (binary): Set the cover calibration mode allowed values: true or false
  • maintenance (binary): Set the cover maintenance mode, enabling will disable the cover motor allowed values: true or false
  • led (binary): Set the LED allowed values: true or false

Calibration vertical run time up (numeric)

Manuel calibration: Set vertical run time up of the roller shutter. Do not change it if your roller shutter is already calibrated.. Value can be found in the published state on the calibration_vertical_run_time_up property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"calibration_vertical_run_time_up": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"calibration_vertical_run_time_up": NEW_VALUE}. The minimal value is 0 and the maximum value is 65535. The unit of this value is 10 ms.

Calibration vertical run time down (numeric)

Manuel calibration: Set vertical run time down of the roller shutter. Do not change it if your roller shutter is already calibrated.. Value can be found in the published state on the calibration_vertical_run_time_down property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"calibration_vertical_run_time_down": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"calibration_vertical_run_time_down": NEW_VALUE}. The minimal value is 0 and the maximum value is 65535. The unit of this value is 10 ms.

Calibration rotation run time up (numeric)

Manuel calibration: Set rotation run time up of the roller shutter. Do not change it if your roller shutter is already calibrated.. Value can be found in the published state on the calibration_rotation_run_time_up property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"calibration_rotation_run_time_up": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"calibration_rotation_run_time_up": NEW_VALUE}. The minimal value is 0 and the maximum value is 65535. The unit of this value is ms.

Calibration rotation run time down (numeric)

Manuel calibration: Set rotation run time down of the roller shutter. Do not change it if your roller shutter is already calibrated.. Value can be found in the published state on the calibration_rotation_run_time_down property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"calibration_rotation_run_time_down": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"calibration_rotation_run_time_down": NEW_VALUE}. The minimal value is 0 and the maximum value is 65535. The unit of this value is ms.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
