Tuya SDM02V1

ModelSDM02V1
VendorTuya
DescriptionSmart energy monitor for 2P+N system
Exposesvoltage_l1, voltage_l2, power_l1, power_l2, current_l1, current_l2, energy, produced_energy, power_factor, power, ac_frequency, energy_l1, energy_l2, energy_produced_l1, energy_produced_l2, power_factor_l1, power_factor_l2, update_frequency

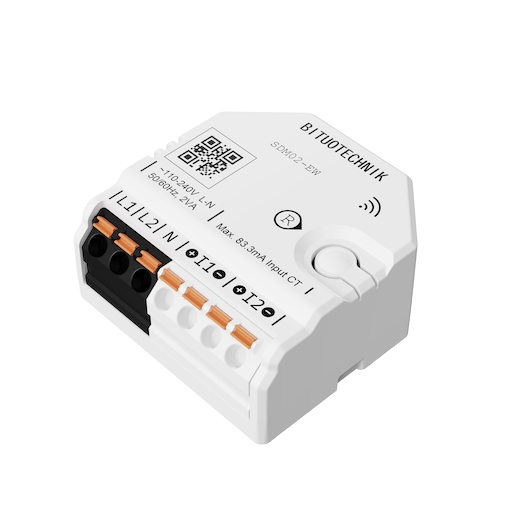

PictureTuya SDM02V1

Options

How to use device type specific configuration

  • energy_calibration: Calibrates the energy value (percentual offset), takes into effect on next report of device. The value must be a number.

  • energy_precision: Number of digits after decimal point for energy, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

  • power_calibration: Calibrates the power value (percentual offset), takes into effect on next report of device. The value must be a number.

  • power_precision: Number of digits after decimal point for power, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

  • ac_frequency_calibration: Calibrates the ac_frequency value (absolute offset), takes into effect on next report of device. The value must be a number.

  • ac_frequency_precision: Number of digits after decimal point for ac_frequency, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

Exposes

Voltage l1 (numeric)

Measured electrical potential value (phase L1). Value can be found in the published state on the voltage_l1 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is V.

Voltage l2 (numeric)

Measured electrical potential value (phase L2). Value can be found in the published state on the voltage_l2 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is V.

Power l1 (numeric)

Instantaneous measured power (phase L1). Value can be found in the published state on the power_l1 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

Power l2 (numeric)

Instantaneous measured power (phase L2). Value can be found in the published state on the power_l2 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

Current l1 (numeric)

Instantaneous measured electrical current (phase L1). Value can be found in the published state on the current_l1 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is A.

Current l2 (numeric)

Instantaneous measured electrical current (phase L2). Value can be found in the published state on the current_l2 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is A.

Energy (numeric)

Total forward active energy. Value can be found in the published state on the energy property. It's not possible to read (/get) or write (/set) this value. The unit of this value is kWh.

Produced energy (numeric)

Total reverse active energy. Value can be found in the published state on the produced_energy property. It's not possible to read (/get) or write (/set) this value. The unit of this value is kWh.

Power factor (numeric)

Total power factor. Value can be found in the published state on the power_factor property. It's not possible to read (/get) or write (/set) this value. The unit of this value is %.

Power (numeric)

Total active power. Value can be found in the published state on the power property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

AC frequency (numeric)

Measured electrical AC frequency. Value can be found in the published state on the ac_frequency property. It's not possible to read (/get) or write (/set) this value. The unit of this value is Hz.

Energy l1 (numeric)

Sum of consumed energy (phase L1). Value can be found in the published state on the energy_l1 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is kWh.

Energy l2 (numeric)

Sum of consumed energy (phase L2). Value can be found in the published state on the energy_l2 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is kWh.

Energy produced l1 (numeric)

Sum of produced energy (phase L1). Value can be found in the published state on the energy_produced_l1 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is kWh.

Energy produced l2 (numeric)

Sum of produced energy (phase L2). Value can be found in the published state on the energy_produced_l2 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is kWh.

Power factor l1 (numeric)

Instantaneous measured power factor (phase L1). Value can be found in the published state on the power_factor_l1 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is %.

Power factor l2 (numeric)

Instantaneous measured power factor (phase L2). Value can be found in the published state on the power_factor_l2 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is %.

Update frequency (numeric)

Update frequency. Value can be found in the published state on the update_frequency property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"update_frequency": NEW_VALUE}. The minimal value is 5 and the maximum value is 3600. The unit of this value is s. Besides the numeric values the following values are accepted: default.
