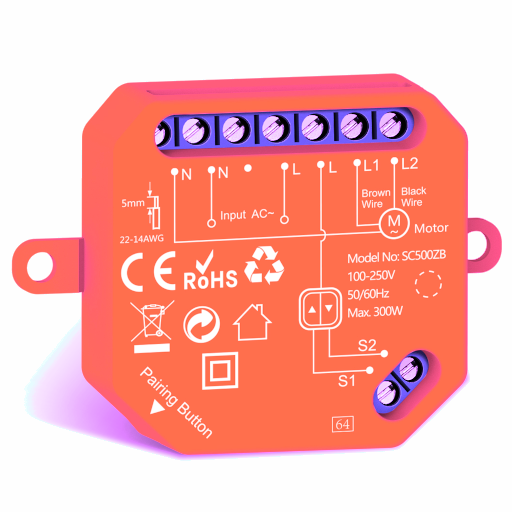

LoraTap SC500ZB-v4


Model	SC500ZB-v4
Vendor	LoraTap
Description	Smart curtain/shutter switch
Exposes	cover (state, position), moving, motor_reversal, calibration, calibration_time, indicator_mode, backlight_mode

Options

How to use device type specific configuration

invert_cover: Inverts the cover position, false: open=100,close=0, true: open=0,close=100 (default false). The value must be true or false
cover_position_tilt_disable_report: Do not publish set cover target position as a normal 'position' value (default false). The value must be true or false

The current state of this cover is in the published state under the state property (value is OPEN or CLOSE). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "OPEN"}, {"state": "CLOSE"}, {"state": "STOP"}. It's not possible to read (/get) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position": VALUE} where VALUE is a number between 0 and 100.

Moving (enum)

Value can be found in the published state on the moving property. It's not possible to read (/get) or write (/set) this value. The possible values are: UP, STOP, DOWN.

Motor reversal (binary)

Value can be found in the published state on the motor_reversal property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"motor_reversal": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"motor_reversal": NEW_VALUE}. If value equals ON motor reversal is ON, if OFF OFF.

Calibration to open (binary)

Value can be found in the published state on the calibration_to_open property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"calibration_to_open": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"calibration_to_open": NEW_VALUE}. If value equals ON calibration to open is ON, if OFF OFF.

Calibration to close (binary)

Value can be found in the published state on the calibration_to_close property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"calibration_to_close": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"calibration_to_close": NEW_VALUE}. If value equals ON calibration to close is ON, if OFF OFF.

Calibration time to open (numeric)

Value can be found in the published state on the calibration_time_to_open property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"calibration_time_to_open": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"calibration_time_to_open": NEW_VALUE}. The unit of this value is s.

Calibration time to close (numeric)

Value can be found in the published state on the calibration_time_to_close property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"calibration_time_to_close": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"calibration_time_to_close": NEW_VALUE}. The unit of this value is s.

Switch type curtain (enum)

External switch type. Value can be found in the published state on the switch_type_curtain property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"switch_type_curtain": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_type_curtain": NEW_VALUE}. The possible values are: flip-switch, sync-switch, button-switch, button2-switch.
