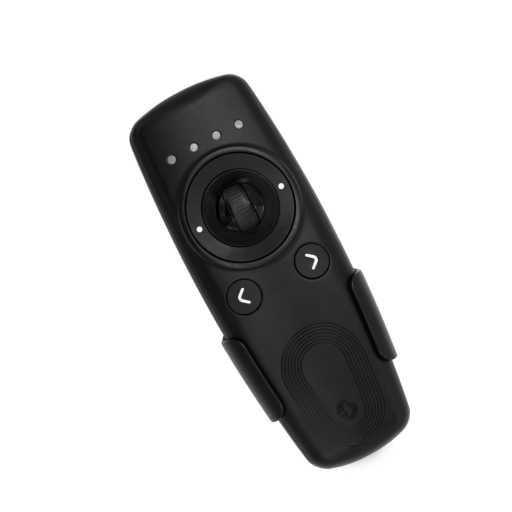

Shelly SBRC-005B-B

Model	SBRC-005B-B
Vendor	Shelly
Description	BLU Remote Control ZB
Exposes	action_group, action_step_size, action_transition_time, battery, identify, action

Notes

Warning

At least one batch of these remotes has been identified as using the same IEEE address. Multiple devices with the same IEEE address cannot be added to the same network.

Options

How to use device type specific configuration

• identify_timeout: Sets the duration of the identification procedure in seconds (i.e., how long the device would flash).The value ranges from 1 to 30 seconds (default: 3). The value must be a number with a minimum value of 1 and with a maximum value of 30

• simulated_brightness: Simulate a brightness value. If this device provides a brightness_move_up or brightness_move_down action it is possible to specify the update interval and delta. The action_brightness_delta indicates the delta for each interval. Example:

simulated_brightness:
  delta: 20 # delta per interval, default = 20
  interval: 200 # interval in milliseconds, default = 200

Exposes

Action group (numeric)

Group ID associated with the action command.. Value can be found in the published state on the action_group property. It's not possible to read (/get) or write (/set) this value.

Action step size (numeric)

Step size value used for brightness step actions.. Value can be found in the published state on the action_step_size property. It's not possible to read (/get) or write (/set) this value.

Action transition time (numeric)

Transition time in seconds for the action.. Value can be found in the published state on the action_transition_time property. It's not possible to read (/get) or write (/set) this value.

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Identify (enum)

Initiate device identification. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"identify": NEW_VALUE}. The possible values are: identify.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: on, off, brightness_step_up, brightness_step_down.
