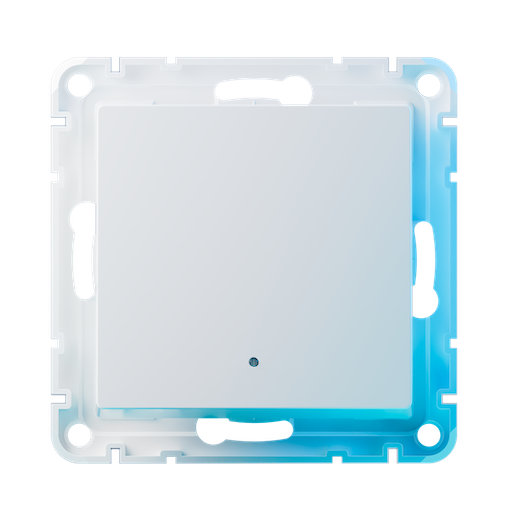

Sber SBDV-00196

Model	SBDV-00196
Vendor	Sber
Description	Smart Wall Switch (with neutral, single button)
Exposes	allow_double_click, led_indicator_on_enable, led_indicator_on_h, led_indicator_on_s, led_indicator_on_b, led_indicator_off_enable, led_indicator_off_h, led_indicator_off_s, led_indicator_off_b, identify, switch (state), power_on_behavior, relay_mode, child_lock, serial_number, resets_count, uptime, button_clicks_count_1, button_clicks_count_2, relay_switches_count_1, action

Notes

Pairing

To put the device in pairing mode, detach button cover and press pairing button for 5 seconds until LED starts breathing animation, then release pairing button. When pairing process is completed, LED animation will stop.

Factory reset

This device resets itself to factory settings when it is removed from the Zigbee network, and this removal is initiated by coordinator (i.e. via frontend or by sending command to zigbee2mqtt/bridge/request/device/remove topic). If device is removed by pressing the pairing button (manual pairing), then its settings will remain intact.

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

• identify_timeout: Sets the duration of the identification procedure in seconds (i.e., how long the device would flash).The value ranges from 1 to 30 seconds (default: 3). The value must be a number with a minimum value of 1 and with a maximum value of 30

• state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

Exposes

Allow double click (binary)

Allow detection of double clicks, may introduce delay in reaction when enabled. Value can be found in the published state on the allow_double_click property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"allow_double_click": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"allow_double_click": NEW_VALUE}. If value equals ON allow double click is ON, if OFF OFF.

LED indication (binary)

Is LED indicator enabled in ON state. Value can be found in the published state on the led_indicator_on_enable property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"led_indicator_on_enable": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"led_indicator_on_enable": NEW_VALUE}. If value equals ON lED indication is ON, if OFF OFF.

Hue (numeric)

Hue of LED in ON state. Value can be found in the published state on the led_indicator_on_h property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"led_indicator_on_h": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"led_indicator_on_h": NEW_VALUE}. The minimal value is 0 and the maximum value is 359. The unit of this value is °.

Saturation (numeric)

Saturation of LED in ON state. Value can be found in the published state on the led_indicator_on_s property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"led_indicator_on_s": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"led_indicator_on_s": NEW_VALUE}. The minimal value is 0 and the maximum value is 254.

Brightness (numeric)

Brightness of LED in ON state. Value can be found in the published state on the led_indicator_on_b property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"led_indicator_on_b": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"led_indicator_on_b": NEW_VALUE}. The minimal value is 1 and the maximum value is 254.

LED indication (binary)

Is LED indicator enabled in OFF state. Value can be found in the published state on the led_indicator_off_enable property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"led_indicator_off_enable": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"led_indicator_off_enable": NEW_VALUE}. If value equals ON lED indication is ON, if OFF OFF.

Hue (numeric)

Hue of LED in OFF state. Value can be found in the published state on the led_indicator_off_h property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"led_indicator_off_h": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"led_indicator_off_h": NEW_VALUE}. The minimal value is 0 and the maximum value is 359. The unit of this value is °.

Saturation (numeric)

Saturation of LED in OFF state. Value can be found in the published state on the led_indicator_off_s property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"led_indicator_off_s": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"led_indicator_off_s": NEW_VALUE}. The minimal value is 0 and the maximum value is 254.

Brightness (numeric)

Brightness of LED in OFF state. Value can be found in the published state on the led_indicator_off_b property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"led_indicator_off_b": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"led_indicator_off_b": NEW_VALUE}. The minimal value is 1 and the maximum value is 254.

Identify (enum)

Initiate device identification. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"identify": NEW_VALUE}. The possible values are: identify.

Switch

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depends on the switch firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Power-on behavior (enum)

Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_on_behavior property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_on_behavior": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_on_behavior": NEW_VALUE}. The possible values are: off, on, toggle, previous.

Relay mode (enum)

Decoupled mode for button. Value can be found in the published state on the relay_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"relay_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"relay_mode": NEW_VALUE}. The possible values are: control_relay, decoupled.

Child lock (binary)

Enable child lock to prevent manual button operation. Value can be found in the published state on the child_lock property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"child_lock": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"child_lock": NEW_VALUE}. If value equals ON child lock is ON, if OFF OFF.

Serial Number (text)

Value can be found in the published state on the serial_number property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"serial_number": ""}. It's not possible to write (/set) this value.

Resets count (numeric)

(telemetry) Number of resets. Value can be found in the published state on the resets_count property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"resets_count": ""}. It's not possible to write (/set) this value.

Uptime (numeric)

(telemetry) Device uptime, in seconds. Value can be found in the published state on the uptime property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"uptime": ""}. It's not possible to write (/set) this value. The unit of this value is s.

Button clicks count 1 (numeric)

(telemetry) Total clicks count of button 1. Value can be found in the published state on the button_clicks_count_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"button_clicks_count_1": ""}. It's not possible to write (/set) this value.

Button clicks count 2 (numeric)

(telemetry) Total clicks count of button 2. Value can be found in the published state on the button_clicks_count_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"button_clicks_count_2": ""}. It's not possible to write (/set) this value.

Relay switches count 1 (numeric)

(telemetry) Total toggle count of relay 1. Value can be found in the published state on the relay_switches_count_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"relay_switches_count_1": ""}. It's not possible to write (/set) this value.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: hold, single, double.
