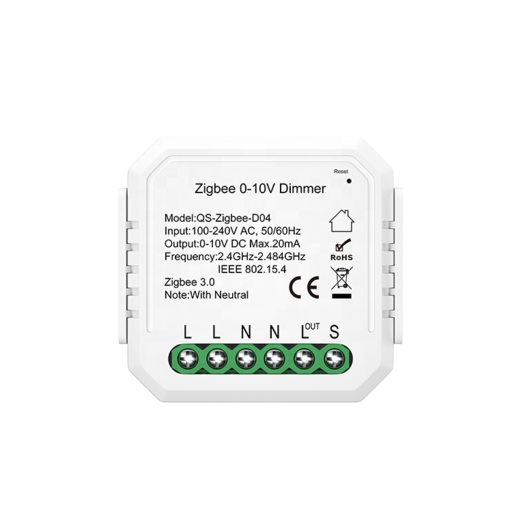

LEDRON QS-Zigbee-D04

Model	QS-Zigbee-D04
Vendor	LEDRON
Description	0-10v dimmer
Exposes	light (state, brightness, min_brightness, max_brightness)

Options

How to use device type specific configuration

• state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

Exposes

Light

This light supports the following features: state, brightness, min_brightness, max_brightness.

• state: To control the state publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the state send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.
• brightness: To control the brightness publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"brightness": VALUE} where VALUE is a number between 0 and 254. To read the brightness send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"brightness": ""}.
