Xiaomi QBKG39LM #

Model QBKG39LM
Vendor Xiaomi
Description Aqara E1 2 gang switch (without neutral)
Exposes switch (state), operation_mode, action, power_outage_memory, linkquality

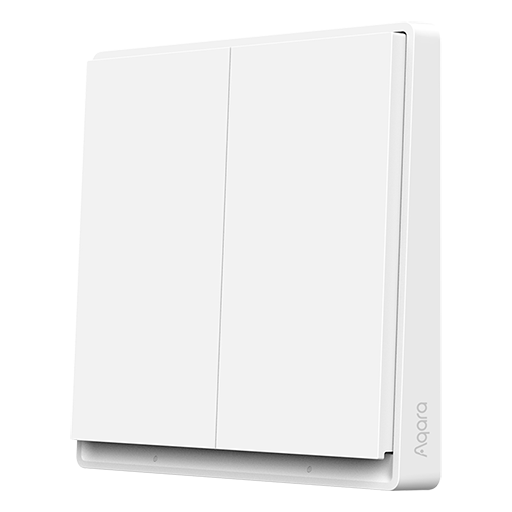

Picture Xiaomi QBKG39LM

Notes #

None

Exposes #

Switch (left endpoint) #

The current state of this switch is in the published state under the state_left property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_left": "ON"}, {"state_left": "OFF"} or {"state_left": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_left": ""}.

Switch (right endpoint) #

The current state of this switch is in the published state under the state_right property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_right": "ON"}, {"state_right": "OFF"} or {"state_right": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_right": ""}.

Operation_mode (enum, left endpoint) #

Decoupled mode for left button. Value can be found in the published state on the operation_mode_left property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"operation_mode_left": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"operation_mode_left": NEW_VALUE}. The possible values are: control_relay, decoupled.

Operation_mode (enum, right endpoint) #

Decoupled mode for right button. Value can be found in the published state on the operation_mode_right property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"operation_mode_right": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"operation_mode_right": NEW_VALUE}. The possible values are: control_relay, decoupled.

Action (enum) #

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It’s not possible to read (/get) or write (/set) this value. The possible values are: single_left, double_left, single_right, double_right, single_both, double_both.

Power_outage_memory (binary) #

Enable/disable the power outage memory, this recovers the on/off mode after power failure. Value can be found in the published state on the power_outage_memory property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_outage_memory": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_outage_memory": NEW_VALUE}. If value equals true power_outage_memory is ON, if false OFF.

Linkquality (numeric) #

Link quality (signal strength). Value can be found in the published state on the linkquality property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.

Manual Home Assistant configuration #

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possible with the following configuration:

switch:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    payload_off: "OFF"
    payload_on: "ON"
    value_template: "{{ value_json.state_left }}"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/left/set"

switch:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    payload_off: "OFF"
    payload_on: "ON"
    value_template: "{{ value_json.state_right }}"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/right/set"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.operation_mode_left }}"
    enabled_by_default: false
    icon: "mdi:tune"

select:
  - platform: "mqtt"
    state_topic: true
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.operation_mode_left }}"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/left/set"
    command_topic_postfix: "operation_mode_left"
    options:
      - "control_relay"
      - "decoupled"
    enabled_by_default: false
    icon: "mdi:tune"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.operation_mode_right }}"
    enabled_by_default: false
    icon: "mdi:tune"

select:
  - platform: "mqtt"
    state_topic: true
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.operation_mode_right }}"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/right/set"
    command_topic_postfix: "operation_mode_right"
    options:
      - "control_relay"
      - "decoupled"
    enabled_by_default: false
    icon: "mdi:tune"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.action }}"
    enabled_by_default: true
    icon: "mdi:gesture-double-tap"

switch:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{% if value_json.power_outage_memory %} true {% else %} false {% endif %}"
    payload_on: "true"
    payload_off: "false"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/set"
    command_topic_postfix: "power_outage_memory"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.linkquality }}"
    unit_of_measurement: "lqi"
    enabled_by_default: false
    icon: "mdi:signal"
    state_class: "measurement"
