Bacchus Presence_Sensor_v2

ModelPresence_Sensor_v2
VendorBacchus
DescriptionBacchus presence sensor with illuminance
Exposesoccupancy, illuminance, local_time, led_mode, illuminance_threshold, min_time, max_time, sensor, day_output, night_output

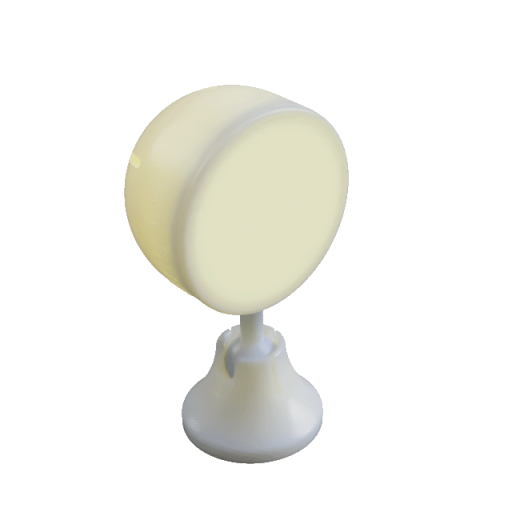

PictureBacchus Presence_Sensor_v2

Original project description

Options

How to use device type specific configuration

  • illuminance_calibration: Calibrates the illuminance value (percentual offset), takes into effect on next report of device. The value must be a number.

  • no_occupancy_since: Sends a message after the last time no occupancy (occupancy: false) was detected. When setting this for example to [10, 60] a {"no_occupancy_since": 10} will be send after 10 seconds and a {"no_occupancy_since": 60} after 60 seconds. The value must be a list of [object Object].

  • illuminance_raw: Expose the raw illuminance value. The value must be true or false

Exposes

Occupancy (binary, 1 endpoint)

Indicates whether the device detected occupancy. Value can be found in the published state on the occupancy_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupancy_1": ""}. It's not possible to write (/set) this value. If value equals true occupancy is ON, if false OFF.

Illuminance (numeric)

Measured illuminance. Value can be found in the published state on the illuminance property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"illuminance": ""}. It's not possible to write (/set) this value. The unit of this value is lx.

Local time (text)

Local time. Value can be found in the published state on the local_time property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_time": ""}. It's not possible to write (/set) this value.

Led mode (enum, 3 endpoint)

Led working mode. Value can be found in the published state on the led_mode_3 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"led_mode_3": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"led_mode_3": NEW_VALUE}. The possible values are: Always, Never, Night.

Illuminance threshold (numeric)

Illuminance threshold. Value can be found in the published state on the illuminance_threshold property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"illuminance_threshold": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"illuminance_threshold": NEW_VALUE}. The minimal value is 0 and the maximum value is 50000. The unit of this value is raw.

Min time (text)

Day start. Value can be found in the published state on the min_time property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_time": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_time": NEW_VALUE}.

Max time (text)

Day end. Value can be found in the published state on the max_time property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_time": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_time": NEW_VALUE}.

Sensor (binary, 1 endpoint)

Enable sensor. Value can be found in the published state on the sensor_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"sensor_1": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"sensor_1": NEW_VALUE}. If value equals ON sensor is ON, if OFF OFF.

Day output (binary, 2 endpoint)

Day binding output. Value can be found in the published state on the day_output_2 property. It's not possible to read (/get) or write (/set) this value. If value equals ON day output is ON, if OFF OFF.

Night output (binary, 3 endpoint)

Night binding output. Value can be found in the published state on the night_output_3 property. It's not possible to read (/get) or write (/set) this value. If value equals ON night output is ON, if OFF OFF.
