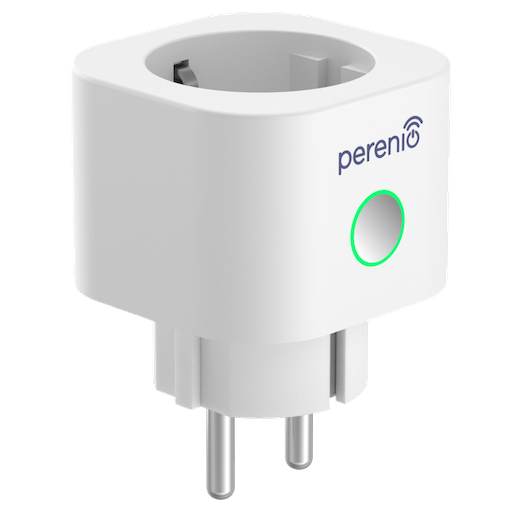

Perenio PEHPL0X

Model	PEHPL0X
Vendor	Perenio
Description	Power link
Exposes	switch (state), default_on_off_state, rms_voltage, active_power, consumed_energy, alarm_voltage_min, alarm_voltage_max, alarm_power_max, alarm_consumed_energy, voltage_min, voltage_max, power_max, consumed_energy_limit, rssi, linkquality

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

• state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

Exposes

Switch

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionnaly an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depend on the switch firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Default on off state (enum)

Value can be found in the published state on the default_on_off_state property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"default_on_off_state": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"default_on_off_state": NEW_VALUE}. The possible values are: on, off, previous.

Rms voltage (numeric)

RMS voltage. Value can be found in the published state on the rms_voltage property. It's not possible to read (/get) or write (/set) this value. The unit of this value is V.

Active power (numeric)

Active power. Value can be found in the published state on the active_power property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

Consumed energy (numeric)

Consumed energy. Value can be found in the published state on the consumed_energy property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W*h.

Alarm voltage min (binary)

Indicates if the alarm is triggered on the voltage drop below the limit, allows to reset alarms. Value can be found in the published state on the alarm_voltage_min property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"alarm_voltage_min": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm_voltage_min": NEW_VALUE}. If value equals true alarm voltage min is ON, if false OFF.

Alarm voltage max (binary)

Indicates if the alarm is triggered on the voltage rise above the limit, allows to reset alarms. Value can be found in the published state on the alarm_voltage_max property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"alarm_voltage_max": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm_voltage_max": NEW_VALUE}. If value equals true alarm voltage max is ON, if false OFF.

Alarm power max (binary)

Indicates if the alarm is triggered on the active power rise above the limit, allows to reset alarms. Value can be found in the published state on the alarm_power_max property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"alarm_power_max": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm_power_max": NEW_VALUE}. If value equals true alarm power max is ON, if false OFF.

Alarm consumed energy (binary)

Indicates if the alarm is triggered when the consumption energy limit is reached, allows to reset alarms. Value can be found in the published state on the alarm_consumed_energy property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"alarm_consumed_energy": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm_consumed_energy": NEW_VALUE}. If value equals true alarm consumed energy is ON, if false OFF.

Voltage min (numeric)

Minimum allowable voltage limit for alarms.. Value can be found in the published state on the voltage_min property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"voltage_min": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"voltage_min": NEW_VALUE}. The minimal value is 0 and the maximum value is 253.

Voltage max (numeric)

Maximum allowable voltage limit for alarms.. Value can be found in the published state on the voltage_max property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"voltage_max": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"voltage_max": NEW_VALUE}. The minimal value is 0 and the maximum value is 253.

Power max (numeric)

Maximum allowable power limit for alarms.. Value can be found in the published state on the power_max property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_max": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_max": NEW_VALUE}. The minimal value is 0 and the maximum value is 65534.

Consumed energy limit (numeric)

Limit of electric energy consumption in kW*h. 0 value represents no limit. Value can be found in the published state on the consumed_energy_limit property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"consumed_energy_limit": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"consumed_energy_limit": NEW_VALUE}. The minimal value is 0 and the maximum value is 65534.

Rssi (numeric)

RSSI seen by the device. Value can be found in the published state on the rssi property. It's not possible to read (/get) or write (/set) this value. The minimal value is -128 and the maximum value is 127. The unit of this value is dB.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
