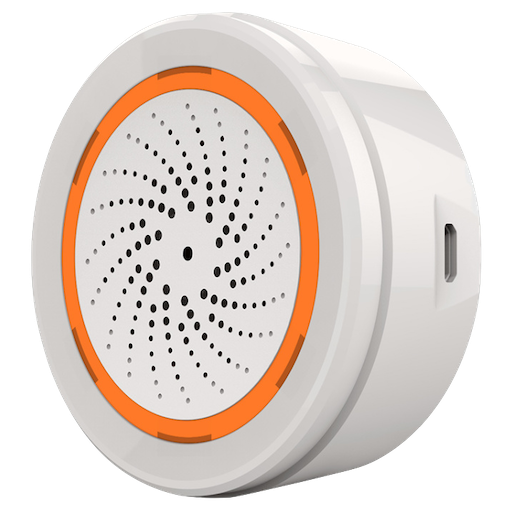

Neo NAS-AB02B0 #

Model	NAS-AB02B0
Vendor	Neo
Description	Temperature & humidity sensor and alarm
Exposes	temperature, humidity, humidity_alarm, battery_low, temperature_alarm, alarm, melody, duration, temperature_min, temperature_max, humidity_min, humidity_max, volume, power_type, linkquality

Notes #

Device type specific configuration #

How to use device type specific configuration

temperature_precision: Controls the precision of temperature values, e.g. 0, 1 or 2; default 2. To control the precision based on the temperature value set it to e.g. {30: 0, 10: 1}, when temperature >= 30 precision will be 0, when temperature >= 10 precision will be 1. Precision will take into affect with next report of device.
temperature_calibration: Allows to manually calibrate temperature values, e.g. 1 would add 1 degree to the temperature reported by the device; default 0. Calibration will take into affect with next report of device.
humidity_precision: Controls the precision of humidity values, e.g. 0, 1 or 2; default 2. To control the precision based on the humidity value set it to e.g. {80: 0, 10: 1}, when humidity >= 80 precision will be 0, when humidity >= 10 precision will be 1. Precision will take into affect with next report of device.

Exposes #

Temperature (numeric) #

Measured temperature value. Value can be found in the published state on the temperature property. It’s not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Humidity (numeric) #

Measured relative humidity. Value can be found in the published state on the humidity property. It’s not possible to read (/get) or write (/set) this value. The unit of this value is %.

Humidity_alarm (binary) #

Value can be found in the published state on the humidity_alarm property. It’s not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"humidity_alarm": NEW_VALUE}. If value equals true humidity_alarm is ON, if false OFF.

Battery_low (binary) #

Indicates if the battery of this device is almost empty. Value can be found in the published state on the battery_low property. It’s not possible to read (/get) or write (/set) this value. If value equals true battery_low is ON, if false OFF.

Temperature_alarm (binary) #

Value can be found in the published state on the temperature_alarm property. It’s not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_alarm": NEW_VALUE}. If value equals true temperature_alarm is ON, if false OFF.

Alarm (binary) #

Value can be found in the published state on the alarm property. It’s not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm": NEW_VALUE}. If value equals true alarm is ON, if false OFF.

Melody (enum) #

Value can be found in the published state on the melody property. It’s not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"melody": NEW_VALUE}. The possible values are: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18.

Duration (numeric) #

Value can be found in the published state on the duration property. It’s not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"duration": NEW_VALUE}. The unit of this value is second.

Temperature_min (numeric) #

Value can be found in the published state on the temperature_min property. It’s not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_min": NEW_VALUE}. The unit of this value is °C.

Temperature_max (numeric) #

Value can be found in the published state on the temperature_max property. It’s not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_max": NEW_VALUE}. The unit of this value is °C.

Humidity_min (numeric) #

Value can be found in the published state on the humidity_min property. It’s not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"humidity_min": NEW_VALUE}. The unit of this value is %.

Humidity_max (numeric) #

Value can be found in the published state on the humidity_max property. It’s not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"humidity_max": NEW_VALUE}. The unit of this value is %.

Volume (enum) #

Value can be found in the published state on the volume property. It’s not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"volume": NEW_VALUE}. The possible values are: low, medium, high.

Power_type (enum) #

Value can be found in the published state on the power_type property. It’s not possible to read (/get) or write (/set) this value. The possible values are: battery_full, battery_high, battery_medium, battery_low, usb.

Linkquality (numeric) #

Link quality (signal strength). Value can be found in the published state on the linkquality property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.

Manual Home Assistant configuration #

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possible with the following configuration:

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.temperature }}"
    unit_of_measurement: "°C"
    device_class: "temperature"
    state_class: "measurement"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.humidity }}"
    unit_of_measurement: "%"
    device_class: "humidity"
    state_class: "measurement"

switch:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{% if value_json.humidity_alarm %} true {% else %} false {% endif %}"
    payload_on: "true"
    payload_off: "false"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/set"
    command_topic_postfix: "humidity_alarm"

binary_sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.battery_low }}"
    payload_on: true
    payload_off: false
    device_class: "battery"

switch:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{% if value_json.temperature_alarm %} true {% else %} false {% endif %}"
    payload_on: "true"
    payload_off: "false"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/set"
    command_topic_postfix: "temperature_alarm"

switch:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{% if value_json.alarm %} true {% else %} false {% endif %}"
    payload_on: "true"
    payload_off: "false"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/set"
    command_topic_postfix: "alarm"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.melody }}"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.duration }}"
    unit_of_measurement: "second"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.temperature_min }}"
    unit_of_measurement: "°C"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.temperature_max }}"
    unit_of_measurement: "°C"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.humidity_min }}"
    unit_of_measurement: "%"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.humidity_max }}"
    unit_of_measurement: "%"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.volume }}"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.power_type }}"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.linkquality }}"
    unit_of_measurement: "lqi"
    enabled_by_default: false
    icon: "mdi:signal"
    state_class: "measurement"
