eWeLink MYDY25Z-1

ModelMYDY25Z-1
VendoreWeLink
DescriptionDooya Curtain
Exposesbattery, voltage, cover (state, position), motor_direction, motor_mode, motor_clb_position, motor_clb_position_result, motor_info, motor_speed, supported_max_motor_speed

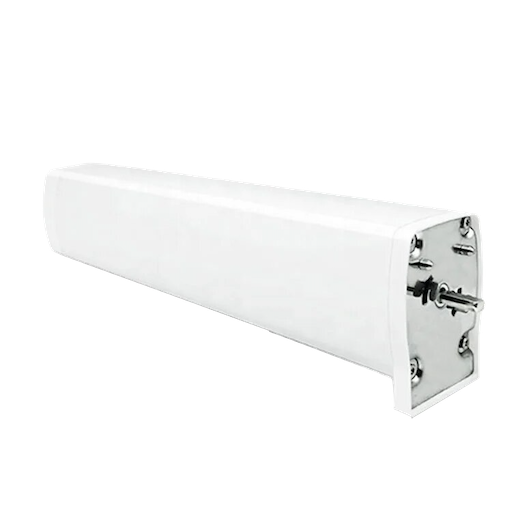

PictureeWeLink MYDY25Z-1

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

  • invert_cover: Inverts the cover position, false: open=100,close=0, true: open=0,close=100 (default false). The value must be true or false

  • cover_position_tilt_disable_report: Do not publish set cover target position as a normal 'position' value (default false). The value must be true or false

Exposes

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Voltage (numeric)

Reported battery voltage in millivolts. Value can be found in the published state on the voltage property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"voltage": ""}. It's not possible to write (/set) this value. The unit of this value is mV.

Cover

The current state of this cover is in the published state under the state property (value is OPEN or CLOSE). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "OPEN"}, {"state": "CLOSE"}, {"state": "STOP"}. It's not possible to read (/get) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position": VALUE} where VALUE is a number between 0 and 100.

Motor direction (enum)

Set the motor direction. Value can be found in the published state on the motor_direction property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"motor_direction": NEW_VALUE}. The possible values are: forward, reverse.

Motor mode (enum)

Motor Mode. Value can be found in the published state on the motor_mode property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"motor_mode": NEW_VALUE}. The possible values are: inching, continuou.

Motor clb position (enum)

Motor Calibration By Position. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"motor_clb_position": NEW_VALUE}. The possible values are: open, close, other, clear.

Motor clb position result (text)

Motor Calibration Result. Value can be found in the published state on the motor_clb_position_result property. It's not possible to read (/get) or write (/set) this value.

Motor info (text)

Motor Updated Info. Value can be found in the published state on the motor_info property. It's not possible to read (/get) or write (/set) this value.

Motor speed (numeric)

Set the motor speed. Value can be found in the published state on the motor_speed property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"motor_speed": NEW_VALUE}. The minimal value is 0 and the maximum value is 14.

Supported max motor speed (numeric)

Supported max motor speed. Value can be found in the published state on the supported_max_motor_speed property. It's not possible to read (/get) or write (/set) this value.
