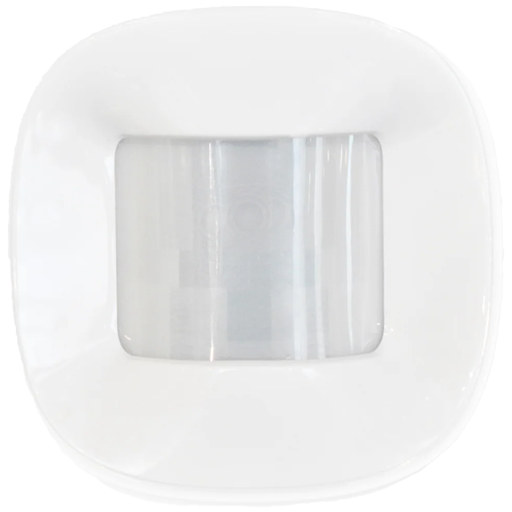

Develco MOSZB-153

Model	MOSZB-153
Vendor	Develco
Description	Motion sensor 2 pet
Exposes	occupancy_timeout, led_control, temperature, illuminance, battery, voltage, occupancy
White-label	Frient MOSZB-153

Notes

Reset Instructions

1. Remove the sensor from its bracket or open the casing.
2. Ensure batteries are correctly inserted.
3. Press and hold the round menu button located inside the device.
4. Watch the LED indicators: It will flash once, then twice, and finally flash several times in rapid succession.
5. At the point when the LED is flashing several times in succession, release the button.
6. The LED will then emit one long flash, indicating that the reset is successful and complete.

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

• temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.

• temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

• illuminance_calibration: Calibrates the illuminance value (percentual offset), takes into effect on next report of device. The value must be a number.

• illuminance_raw: Expose the raw illuminance value. The value must be true or false

Exposes

Occupancy timeout (numeric)

Value can be found in the published state on the occupancy_timeout property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupancy_timeout": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupancy_timeout": NEW_VALUE}. The minimal value is 5 and the maximum value is 65535. The unit of this value is s.

Led control (enum)

Control LED indicator usage.. Value can be found in the published state on the led_control property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"led_control": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"led_control": NEW_VALUE}. The possible values are: off, fault_only, motion_only, both.

Temperature (numeric)

Measured temperature value. Value can be found in the published state on the temperature property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Illuminance (numeric)

Measured illuminance. Value can be found in the published state on the illuminance property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"illuminance": ""}. It's not possible to write (/set) this value. The unit of this value is lx.

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Voltage (numeric)

Reported battery voltage in millivolts. Value can be found in the published state on the voltage property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"voltage": ""}. It's not possible to write (/set) this value. The unit of this value is mV.

Occupancy (binary)

Indicates whether the device detected occupancy. Value can be found in the published state on the occupancy property. It's not possible to read (/get) or write (/set) this value. If value equals true occupancy is ON, if false OFF.
