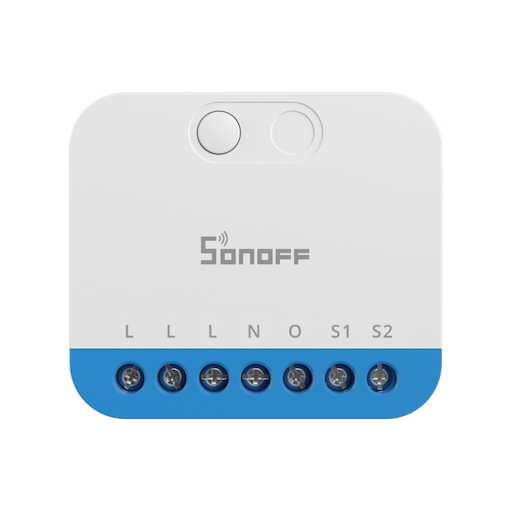

SONOFF MINI-ZBDIM


Model	MINI-ZBDIM
Vendor	SONOFF
Description	Zigbee smart mini dimmer switch
Exposes	light (state, brightness), power_on_behavior, current, voltage, power, delayed_power_on_state, delayed_power_on_time, inching_control_set, external_trigger_mode, set_calibration_action, calibration_status, calibration_progress, min_brightness_threshold, transition_time, dimming_light_rate

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

current_calibration: Calibrates the current value (percentual offset), takes into effect on next report of device. The value must be a number.
current_precision: Number of digits after decimal point for current, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3
voltage_calibration: Calibrates the voltage value (percentual offset), takes into effect on next report of device. The value must be a number.
voltage_precision: Number of digits after decimal point for voltage, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3
power_calibration: Calibrates the power value (percentual offset), takes into effect on next report of device. The value must be a number.
power_precision: Number of digits after decimal point for power, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3
transition: Controls the transition time (in seconds) of on/off, brightness, color temperature (if applicable) and color (if applicable) changes. Defaults to 0 (no transition). The value must be a number with a minimum value of 0
state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

Exposes

Light

This light supports the following features: state, brightness.

state: To control the state publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the state send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.
brightness: To control the brightness publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"brightness": VALUE} where VALUE is a number between 0 and 254. To read the brightness send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"brightness": ""}.

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the light will not answer to other on with timed off commands. Support depends on the light firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Transition

For all of the above mentioned features it is possible to do a transition of the value over time. To do this add an additional property transition to the payload which is the transition time in seconds. Examples: {"brightness":156,"transition":3}, {"color_temp":241,"transition":1}.

Moving/stepping

Instead of setting a value (e.g. brightness) directly it is also possible to:

move: this will automatically move the value over time, to stop send value stop or 0.
step: this will increment/decrement the current value by the given one.

The direction of move and step can be either up or down, provide a negative value to move/step down, a positive value to move/step up. To do this send a payload like below to zigbee2mqtt/FRIENDLY_NAME/set

NOTE: brightness move/step will stop at the minimum brightness and won't turn on the light when it's off. In this case use brightness_move_onoff/brightness_step_onoff

{
  "brightness_move": -40, // Starts moving brightness down at 40 units per second
  "brightness_move": 0, // Stop moving brightness
  "brightness_step": 40 // Increases brightness by 40
}

Power-on behavior (enum)

Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_on_behavior property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_on_behavior": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_on_behavior": NEW_VALUE}. The possible values are: off, on, toggle, previous.

Current (numeric)

Current. Value can be found in the published state on the current property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"current": ""}. It's not possible to write (/set) this value. The unit of this value is A.

Voltage (numeric)

Voltage. Value can be found in the published state on the voltage property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"voltage": ""}. It's not possible to write (/set) this value. The unit of this value is V.

Power (numeric)

Active power. Value can be found in the published state on the power property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power": ""}. It's not possible to write (/set) this value. The unit of this value is W.

Delayed power on state (binary)

Delayed Power-on State. Value can be found in the published state on the delayed_power_on_state property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"delayed_power_on_state": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"delayed_power_on_state": NEW_VALUE}. If value equals true delayed power on state is ON, if false OFF.

Delayed power on time (numeric)

Delayed Power-on time. Value can be found in the published state on the delayed_power_on_time property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"delayed_power_on_time": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"delayed_power_on_time": NEW_VALUE}. The minimal value is 0.5 and the maximum value is 3599.5. The unit of this value is seconds.

Inching control set (composite)

Device Inching function Settings. The device will automatically turn off (turn on) after each turn on (turn off) for a specified period of time.. Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"inching_control_set": {"inching_control": VALUE, "inching_time": VALUE, "inching_mode": VALUE}}

inching_control (binary): Enable/disable inching function. allowed values: ENABLE or DISABLE
inching_time (numeric): Delay time for executing a inching action. min value is 0.5, max value is 86399.5, unit is seconds
inching_mode (binary): Set inching off or inching on mode. allowed values: ON or OFF

External trigger mode (enum)

External trigger mode, which can be one of edge, pulse,double pulse,triple pulse.The appropriate triggering mode can be selected according to the type of external switch to achieve a better use experience.. Value can be found in the published state on the external_trigger_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"external_trigger_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"external_trigger_mode": NEW_VALUE}. The possible values are: edge, pulse, double pulse, triple pulse.

Set calibration action (enum)

After calibration, the light adjustment becomes smooth and consistent.. Takes about 2 minutes; device unavailable during calibration.. Value can be found in the published state on the set_calibration_action property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"set_calibration_action": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"set_calibration_action": NEW_VALUE}. The possible values are: start, stop, clear.

Calibration status (enum)

Calibration status.. Value can be found in the published state on the calibration_status property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"calibration_status": ""}. It's not possible to write (/set) this value. The possible values are: uncalibrate, cailbrating, calibration_failed, calibrated.

Calibration progress (numeric)

Calibration progress.. Value can be found in the published state on the calibration_progress property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"calibration_progress": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Min brightness threshold (numeric)

Lowest brightness level mapped to 1 % on the dimmer slider.. Value can be found in the published state on the min_brightness_threshold property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_brightness_threshold": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_brightness_threshold": NEW_VALUE}. The minimal value is 1 and the maximum value is 50. The unit of this value is %.

Transition time (numeric)

Transition time. Value can be found in the published state on the transition_time property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"transition_time": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"transition_time": NEW_VALUE}. The minimal value is 0 and the maximum value is 5. The unit of this value is s.

Dimming light rate (enum)

Speed of brightness change via external switch.. Value can be found in the published state on the dimming_light_rate property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"dimming_light_rate": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"dimming_light_rate": NEW_VALUE}. The possible values are: 1x, 2x, 3x, 4x, 5x.
