Custom devices (DiY) MHO-C401N
Model | MHO-C401N |
Vendor | Custom devices (DiY) |
Description | Xiaomi temperature & humidity sensor with custom firmware |
Exposes | battery, temperature, humidity, temperature_display_mode, show_smile, temperature_calibration, humidity_calibration, comfort_temperature_min, comfort_temperature_max, comfort_humidity_min, comfort_humidity_max, linkquality |

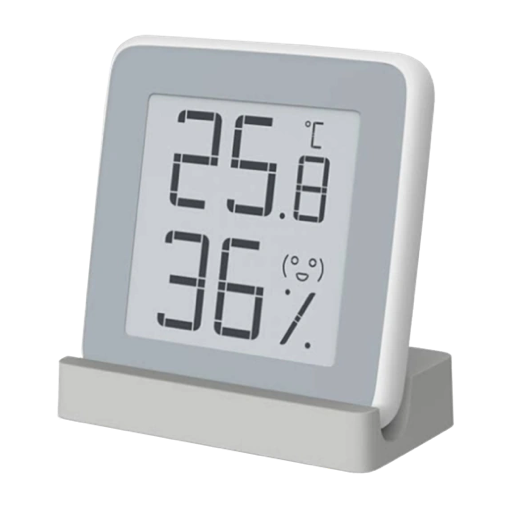

Picture |
Notes
Originally this device does not support Zigbee (only Bluetooth). To use this device with Zigbee2MQTT a custom firmware has to be flashed which is explained here. This firmware converts the device from Bluetooth to Zigbee.
OTA updates
This device supports OTA updates, for more information see OTA updates.
Options
How to use device type specific configuration
temperature_calibration
: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.temperature_precision
: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of0
and with a with a maximum value of3
humidity_calibration
: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.humidity_precision
: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of0
and with a with a maximum value of3
Exposes
Battery (numeric)
Remaining battery in %. Value can be found in the published state on the battery
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"battery": ""}
. It's not possible to write (/set
) this value. The minimal value is 0
and the maximum value is 100
. The unit of this value is %
.
Temperature (numeric)
Measured temperature value. Value can be found in the published state on the temperature
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"temperature": ""}
. It's not possible to write (/set
) this value. The unit of this value is °C
.
Humidity (numeric)
Measured relative humidity. Value can be found in the published state on the humidity
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"humidity": ""}
. It's not possible to write (/set
) this value. The unit of this value is %
.
Temperature display mode (enum)
The units of the temperature displayed on the device screen.. Value can be found in the published state on the temperature_display_mode
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"temperature_display_mode": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"temperature_display_mode": NEW_VALUE}
. The possible values are: celsius
, fahrenheit
.
Show smile (binary)
Whether to show a smile on the device screen.. Value can be found in the published state on the show_smile
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"show_smile": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"show_smile": NEW_VALUE}
. If value equals HIDE
show smile is ON, if SHOW
OFF.
Temperature calibration (numeric)
The temperature calibration, in 0.1° steps. Requires v0.1.1.6 or newer.. Value can be found in the published state on the temperature_calibration
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"temperature_calibration": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"temperature_calibration": NEW_VALUE}
. The minimal value is -12.7
and the maximum value is 12.7
. The unit of this value is C
.
Humidity calibration (numeric)
The humidity offset is set in 0.1 % steps. Requires v0.1.1.6 or newer.. Value can be found in the published state on the humidity_calibration
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"humidity_calibration": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"humidity_calibration": NEW_VALUE}
. The minimal value is -12.7
and the maximum value is 12.7
. The unit of this value is %
.
Comfort temperature min (numeric)
Comfort parameters/Temperature minimum, in 1° steps. Requires v0.1.1.7 or newer.. Value can be found in the published state on the comfort_temperature_min
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"comfort_temperature_min": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"comfort_temperature_min": NEW_VALUE}
. The minimal value is -127
and the maximum value is 127
. The unit of this value is C
.
Comfort temperature max (numeric)
Comfort parameters/Temperature maximum, in 1° steps. Requires v0.1.1.7 or newer.. Value can be found in the published state on the comfort_temperature_max
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"comfort_temperature_max": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"comfort_temperature_max": NEW_VALUE}
. The minimal value is -127
and the maximum value is 127
. The unit of this value is C
.
Comfort humidity min (numeric)
Comfort parameters/Humidity minimum, in 1% steps. Requires v0.1.1.7 or newer.. Value can be found in the published state on the comfort_humidity_min
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"comfort_humidity_min": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"comfort_humidity_min": NEW_VALUE}
. The minimal value is 0
and the maximum value is 100
. The unit of this value is %
.
Comfort humidity max (numeric)
Comfort parameters/Humidity maximum, in 1% steps. Requires v0.1.1.7 or newer.. Value can be found in the published state on the comfort_humidity_max
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"comfort_humidity_max": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"comfort_humidity_max": NEW_VALUE}
. The minimal value is 0
and the maximum value is 100
. The unit of this value is %
.
Linkquality (numeric)
Link quality (signal strength). Value can be found in the published state on the linkquality
property. It's not possible to read (/get
) or write (/set
) this value. The minimal value is 0
and the maximum value is 255
. The unit of this value is lqi
.
