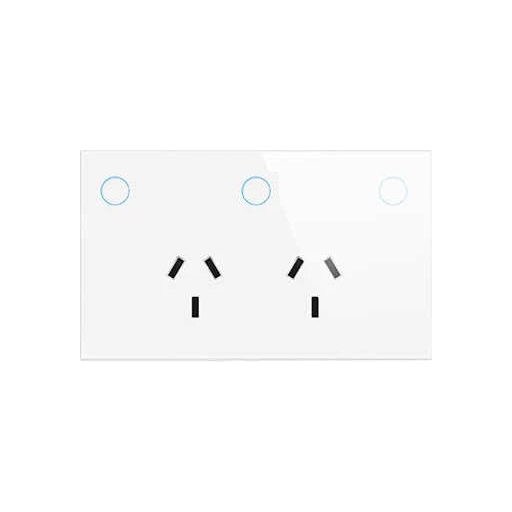

Tuya MG-GPO04ZSLP

Model	MG-GPO04ZSLP
Vendor	Tuya
Description	2 x socket + 1 x light with master switch and metering
Exposes	switch (state), voltage, current, energy_wh

Options

How to use device type specific configuration

• voltage_calibration: Calibrates the voltage value (percentual offset), takes into effect on next report of device. The value must be a number.

• voltage_precision: Number of digits after decimal point for voltage, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3

• current_calibration: Calibrates the current value (percentual offset), takes into effect on next report of device. The value must be a number.

• current_precision: Number of digits after decimal point for current, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3

Exposes

Switch (master endpoint)

The current state of this switch is in the published state under the state_master property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_master": "ON"}, {"state_master": "OFF"} or {"state_master": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (light endpoint)

The current state of this switch is in the published state under the state_light property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_light": "ON"}, {"state_light": "OFF"} or {"state_light": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (left endpoint)

The current state of this switch is in the published state under the state_left property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_left": "ON"}, {"state_left": "OFF"} or {"state_left": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (right endpoint)

The current state of this switch is in the published state under the state_right property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_right": "ON"}, {"state_right": "OFF"} or {"state_right": "TOGGLE"}. It's not possible to read (/get) this value.

Voltage (numeric)

Line voltage reported by the outlet. Value can be found in the published state on the voltage property. It's not possible to read (/get) or write (/set) this value. The unit of this value is V.

Current (numeric)

Line current reported by the outlet. Value can be found in the published state on the current property. It's not possible to read (/get) or write (/set) this value. The unit of this value is A.

Energy wh (numeric)

Accumulated energy (raw Wh counter). Value can be found in the published state on the energy_wh property. It's not possible to read (/get) or write (/set) this value. The unit of this value is Wh.
