Xiaomi MFKZQ01LM #

Model	MFKZQ01LM
Vendor	Xiaomi

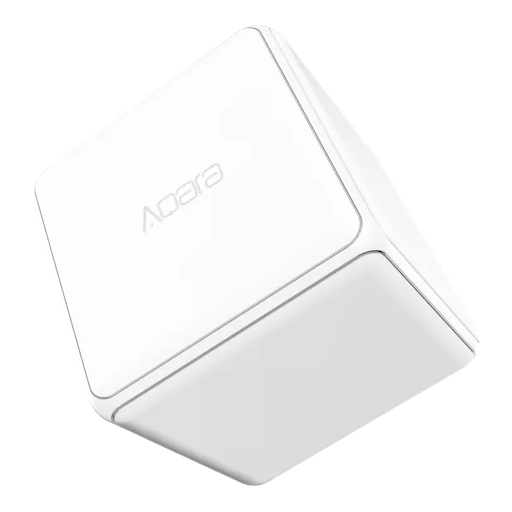

Description	Mi/Aqara smart home cube
Exposes	battery, voltage, action_angle, action_from_side, action_side, action_to_side, action, linkquality

Notes #

Pairing #

Remove the back plate by using the included tool or a wedge to click it off. Press and hold the reset button inside the device for +- 5 seconds (until the blue light starts blinking). After this the device will automatically join. If this doesn’t work, try with a single short button press.

Troubleshooting: device stops sending messages/disconnects from network #

Since Xiaomi devices do not fully comply to the Zigbee standard, it sometimes happens that they disconnect from the network. Most of the times this happens because of the following reasons:

• Device has a weak signal, you can see the signal quality in the published messages as linkquality. A linkquality < 20 is considered weak.
• Low battery voltage, this can even happen when the battery still appears full. Try a different battery.
• The device is connected through a router which cannot deal with Xiaomi devices. This is known to happen devices from: Centralite, General Electric, Iris, Ledvance, OSRAM, Sylvania, SmartThings, Securifi.

More detailed information about this can be found here.

Device type specific configuration #

How to use device type specific configuration

• legacy: Set to false to disable the legacy integration (highly recommended!) (default: true)

Exposes #

Battery (numeric) #

Remaining battery in %. Value can be found in the published state on the battery property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Voltage (numeric) #

Voltage of the battery in millivolts. Value can be found in the published state on the voltage property. It’s not possible to read (/get) or write (/set) this value. The unit of this value is mV.

Action_angle (numeric) #

Value can be found in the published state on the action_angle property. It’s not possible to read (/get) or write (/set) this value. The minimal value is -360 and the maximum value is 360.

Action_from_side (numeric) #

Side of the cube. Value can be found in the published state on the action_from_side property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 6.

Action_side (numeric) #

Side of the cube. Value can be found in the published state on the action_side property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 6.

Action_to_side (numeric) #

Side of the cube. Value can be found in the published state on the action_to_side property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 6.

Action (enum) #

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It’s not possible to read (/get) or write (/set) this value. The possible values are: shake, wakeup, fall, tap, slide, flip180, flip90, rotate_left, rotate_right.

Linkquality (numeric) #

Link quality (signal strength). Value can be found in the published state on the linkquality property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
