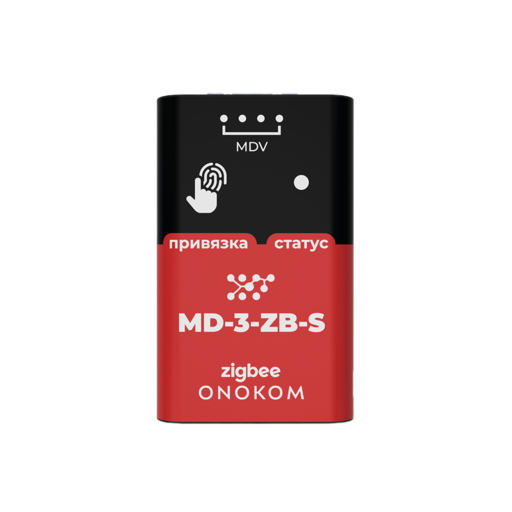

ONOKOM MD-3-ZB-S


Model	MD-3-ZB-S
Vendor	ONOKOM
Description	AIR MD-3-MB-B (Adapter for semi-industrial MDV systems)
Exposes	ac_connected, switch (state), current_temperature, target_temperature, system_mode, mode, zb_fan_speed, horizontal_vanes, fan_speed, smart_fan_speed, vanes_swing, status_led, eco_mode, indoor_heat_exchanger_temperature, outdoor_heat_exchanger_temperature

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

AC connected. Value can be found in the published state on the ac_connected property. It's not possible to read (/get) or write (/set) this value. The possible values are: disconnected, invalid_data_recieved, connected_with_issues, connected.

Switch

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depends on the switch firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Current temperature (numeric)

Current temperature. Value can be found in the published state on the current_temperature property. It's not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Target temperature (numeric)

Target temperature. Value can be found in the published state on the target_temperature property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"target_temperature": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"target_temperature": NEW_VALUE}. The minimal value is 16 and the maximum value is 30. The unit of this value is °C.

System mode (enum)

Active mode. Value can be found in the published state on the system_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode": NEW_VALUE}. The possible values are: off, auto, cool, heat, fan_only, dry.

Mode (enum)

Modes. Value can be found in the published state on the mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"mode": NEW_VALUE}. The possible values are: heat, cool, auto, dry, fan_only.

Zb fan speed (numeric)

Fan speed modes: Auto(5), Low(1), Medium(2), Maximum(3). Value can be found in the published state on the zb_fan_speed property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"zb_fan_speed": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"zb_fan_speed": NEW_VALUE}. The minimal value is 1 and the maximum value is 5.

Horizontal vanes (numeric)

Horizontal vanes: Stopped(0), Swing(1), Lowest postion(2), Highest position(8). Value can be found in the published state on the horizontal_vanes property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"horizontal_vanes": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"horizontal_vanes": NEW_VALUE}. The minimal value is 0 and the maximum value is 8.

Fan speed (numeric)

Fan speed: Auto(0), First(1) - Maximum(3). Value can be found in the published state on the fan_speed property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"fan_speed": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"fan_speed": NEW_VALUE}. The minimal value is 0 and the maximum value is 3.

Smart fan speed (numeric)

Smart fan speed: Auto (0), Low (1) ... Maximum (3). Value can be found in the published state on the smart_fan_speed property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"smart_fan_speed": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"smart_fan_speed": NEW_VALUE}. The minimal value is 0 and the maximum value is 4.

Vanes swing (numeric)

Vanes swing: Stopped(0), Horizontal and vertical swing(1), Horizontal swing(2), Vertical swing(3). Value can be found in the published state on the vanes_swing property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"vanes_swing": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"vanes_swing": NEW_VALUE}. The minimal value is 0 and the maximum value is 2.

Status led (enum)

Status LED. Value can be found in the published state on the status_led property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"status_led": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"status_led": NEW_VALUE}. The possible values are: normal_mode, disabled_if_no_errors, disabled_untill_reboot, always_disabled, green_untill_reboot, red_untill_reboot.

Eco mode (binary)

Eco mode. Value can be found in the published state on the eco_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"eco_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"eco_mode": NEW_VALUE}. If value equals ON eco mode is ON, if OFF OFF.

Indoor heat exchanger temperature (numeric)

Indoor heat exchanger temperature. Value can be found in the published state on the indoor_heat_exchanger_temperature property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is °C.

Outdoor heat exchanger temperature (numeric)

Outdoor heat exchanger temperature. Value can be found in the published state on the outdoor_heat_exchanger_temperature property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is °C.
