MindY Leleka
Model | Leleka |
Vendor | MindY |
Description | Advanced Environmental Monitoring Device |
Exposes | last_boot, wifi, ip_address, temperature, humidity, pressure, co2, illuminance, light (state, brightness), identify, read_interval, night_mode, night_on_time, night_off_time, co2_control, co2_invert, co2_level_high, co2_level_low, co2_auto_calibration, co2_forced_recalibration, co2_factory_reset, lux_control, lux_invert, lux_level_high, lux_level_low, offset_illuminance, temperature_sensor, offset_temperature, offset_humidity, offset_pressure |

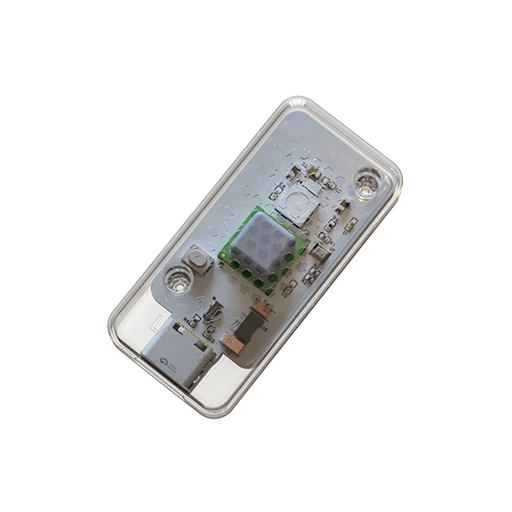

Picture | ![]() |
OTA updates
This device supports OTA updates, for more information see OTA updates.
Options
How to use device type specific configuration
last_boot_update
: Interval for request boot datetime from device. (default 60 seconds). The value must be a number with a minimum value of10
temperature_calibration
: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.temperature_precision
: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of0
and with a with a maximum value of3
humidity_calibration
: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.humidity_precision
: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of0
and with a with a maximum value of3
pressure_calibration
: Calibrates the pressure value (absolute offset), takes into effect on next report of device. The value must be a number.pressure_precision
: Number of digits after decimal point for pressure, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of0
and with a with a maximum value of3
co2_calibration
: Calibrates the co2 value (absolute offset), takes into effect on next report of device. The value must be a number.illuminance_calibration
: Calibrates the illuminance value (percentual offset), takes into effect on next report of device. The value must be a number.transition
: Controls the transition time (in seconds) of on/off, brightness, color temperature (if applicable) and color (if applicable) changes. Defaults to0
(no transition). The value must be a number with a minimum value of0
identify_timeout
: Sets the duration of the identification procedure in seconds (i.e., how long the device would flash).The value ranges from 1 to 30 seconds (default: 3). The value must be a number with a minimum value of1
and with a with a maximum value of30
illuminance_raw
: Expose the raw illuminance value. The value must betrue
orfalse
state_action
: State actions will also be published as 'action' when true (default false). The value must betrue
orfalse
Exposes
Last boot (text)
Device boot date and time. Value can be found in the published state on the last_boot
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"last_boot": ""}
. It's not possible to write (/set
) this value.
Wifi (binary)
Device WiFi state. Value can be found in the published state on the wifi
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"wifi": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"wifi": NEW_VALUE}
. If value equals ON
wifi is ON, if OFF
OFF.
Ip address (text)
Device IP address. Value can be found in the published state on the ip_address
property. It's not possible to read (/get
) or write (/set
) this value.
Temperature (numeric)
Measured temperature value. Value can be found in the published state on the temperature
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"temperature": ""}
. It's not possible to write (/set
) this value. The unit of this value is °C
.
Humidity (numeric)
Measured relative humidity. Value can be found in the published state on the humidity
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"humidity": ""}
. It's not possible to write (/set
) this value. The unit of this value is %
.
Pressure (numeric)
The measured atmospheric pressure. Value can be found in the published state on the pressure
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"pressure": ""}
. It's not possible to write (/set
) this value. The unit of this value is kPa
.
CO2 (numeric)
Measured value. Value can be found in the published state on the co2
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"co2": ""}
. It's not possible to write (/set
) this value. The unit of this value is ppm
.
Illuminance (numeric)
Measured illuminance. Value can be found in the published state on the illuminance
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"illuminance": ""}
. It's not possible to write (/set
) this value. The unit of this value is lx
.
Light
This light supports the following features: state
, brightness
.
state
: To control the state publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"state": "ON"}
,{"state": "OFF"}
or{"state": "TOGGLE"}
. To read the state send a message tozigbee2mqtt/FRIENDLY_NAME/get
with payload{"state": ""}
.brightness
: To control the brightness publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"brightness": VALUE}
whereVALUE
is a number between0
and254
. To read the brightness send a message tozigbee2mqtt/FRIENDLY_NAME/get
with payload{"brightness": ""}
.
On with timed off
When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time
to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time
property can be added to the payload to specify the cooldown time in seconds when the light will not answer to other on with timed off commands. Support depends on the light firmware. Some devices might require both on_time
and off_wait_time
to work Examples : {"state" : "ON", "on_time": 300}
, {"state" : "ON", "on_time": 300, "off_wait_time": 120}
.
Transition
For all of the above mentioned features it is possible to do a transition of the value over time. To do this add an additional property transition
to the payload which is the transition time in seconds. Examples: {"brightness":156,"transition":3}
, {"color_temp":241,"transition":1}
.
Moving/stepping
Instead of setting a value (e.g. brightness) directly it is also possible to:
- move: this will automatically move the value over time, to stop send value
stop
or0
. - step: this will increment/decrement the current value by the given one.
The direction of move and step can be either up or down, provide a negative value to move/step down, a positive value to move/step up. To do this send a payload like below to zigbee2mqtt/FRIENDLY_NAME/set
NOTE: brightness move/step will stop at the minimum brightness and won't turn on the light when it's off. In this case use brightness_move_onoff
/brightness_step_onoff
{
"brightness_move": -40, // Starts moving brightness down at 40 units per second
"brightness_move": 0, // Stop moving brightness
"brightness_step": 40 // Increases brightness by 40
}
Identify (enum)
Initiate device identification. Value will not be published in the state. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"identify": NEW_VALUE}
. The possible values are: identify
.
Read interval (numeric)
Read interval of sensors. Default 30. Value can be found in the published state on the read_interval
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"read_interval": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"read_interval": NEW_VALUE}
. The minimal value is 5
and the maximum value is 600
. The unit of this value is seconds
.
Night mode (binary)
Turn OFF LED at night. Value can be found in the published state on the night_mode
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"night_mode": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"night_mode": NEW_VALUE}
. If value equals ON
night mode is ON, if OFF
OFF.
Night on time (numeric)
Night mode activation time. Value can be found in the published state on the night_on_time
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"night_on_time": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"night_on_time": NEW_VALUE}
. The minimal value is 0
and the maximum value is 23
. The unit of this value is Hr
.
Night off time (numeric)
Night mode deactivation time. Value can be found in the published state on the night_off_time
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"night_off_time": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"night_off_time": NEW_VALUE}
. The minimal value is 0
and the maximum value is 23
. The unit of this value is Hr
.
Co2 control (binary)
Enable CO2 bind-control. Value can be found in the published state on the co2_control
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"co2_control": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"co2_control": NEW_VALUE}
. If value equals ON
co2 control is ON, if OFF
OFF.
Co2 invert (binary)
Invert CO2 control logic. Value can be found in the published state on the co2_invert
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"co2_invert": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"co2_invert": NEW_VALUE}
. If value equals ON
co2 invert is ON, if OFF
OFF.
Co2 level high (numeric)
High CO2 threshold. Value can be found in the published state on the co2_level_high
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"co2_level_high": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"co2_level_high": NEW_VALUE}
. The minimal value is 400
and the maximum value is 2000
. The unit of this value is ppm
.
Co2 level low (numeric)
Low CO2 threshold. Value can be found in the published state on the co2_level_low
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"co2_level_low": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"co2_level_low": NEW_VALUE}
. The minimal value is 400
and the maximum value is 2000
. The unit of this value is ppm
.
Co2 auto calibration (binary)
Automatic self calibration. Value can be found in the published state on the co2_auto_calibration
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"co2_auto_calibration": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"co2_auto_calibration": NEW_VALUE}
. If value equals ON
co2 auto calibration is ON, if OFF
OFF.
Co2 forced recalibration (numeric)
Start FRC by setting the value. Value can be found in the published state on the co2_forced_recalibration
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"co2_forced_recalibration": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"co2_forced_recalibration": NEW_VALUE}
. The minimal value is 0
and the maximum value is 5000
. The unit of this value is ppm
.
Co2 factory reset (binary)
Factory Reset CO2 sensor. Value can be found in the published state on the co2_factory_reset
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"co2_factory_reset": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"co2_factory_reset": NEW_VALUE}
. If value equals ON
co2 factory reset is ON, if OFF
OFF.
Lux control (binary)
Enable illuminance bind-control. Value can be found in the published state on the lux_control
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"lux_control": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"lux_control": NEW_VALUE}
. If value equals ON
lux control is ON, if OFF
OFF.
Lux invert (binary)
Invert illuminance control logic. Value can be found in the published state on the lux_invert
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"lux_invert": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"lux_invert": NEW_VALUE}
. If value equals ON
lux invert is ON, if OFF
OFF.
Lux level high (numeric)
High illuminance threshold. Value can be found in the published state on the lux_level_high
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"lux_level_high": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"lux_level_high": NEW_VALUE}
. The minimal value is 100
and the maximum value is 10000
. The unit of this value is lx
.
Lux level low (numeric)
Low illuminance threshold. Value can be found in the published state on the lux_level_low
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"lux_level_low": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"lux_level_low": NEW_VALUE}
. The minimal value is 100
and the maximum value is 10000
. The unit of this value is lx
.
Offset illuminance (numeric)
Adjust illuminance. Value can be found in the published state on the offset_illuminance
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"offset_illuminance": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"offset_illuminance": NEW_VALUE}
. The minimal value is -500
and the maximum value is 500
. The unit of this value is lx
.
Temperature sensor (enum)
Active temperature sensor. Value can be found in the published state on the temperature_sensor
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"temperature_sensor": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"temperature_sensor": NEW_VALUE}
. The possible values are: CPU
, SCD4X
, BMP280
.
Offset temperature (numeric)
Adjust temperature. Value can be found in the published state on the offset_temperature
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"offset_temperature": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"offset_temperature": NEW_VALUE}
. The minimal value is -50
and the maximum value is 50
. The unit of this value is °C
.
Offset humidity (numeric)
Adjust humidity. Value can be found in the published state on the offset_humidity
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"offset_humidity": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"offset_humidity": NEW_VALUE}
. The minimal value is -50
and the maximum value is 50
. The unit of this value is %
.
Offset pressure (numeric)
Adjust pressure. Value can be found in the published state on the offset_pressure
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"offset_pressure": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"offset_pressure": NEW_VALUE}
. The minimal value is -100
and the maximum value is 100
. The unit of this value is kPa
.
