Aqara KQJCMB11LM

ModelKQJCMB11LM
VendorAqara
DescriptionAir monitoring panel S1
Exposestemperature, humidity, pm25, co2

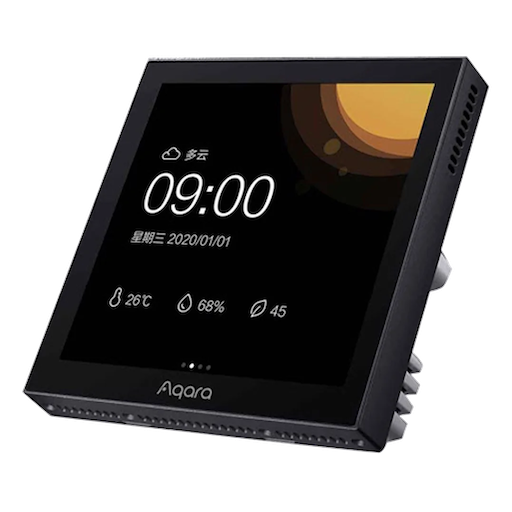

PictureAqara KQJCMB11LM

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

  • temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.

  • temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

  • humidity_calibration: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.

  • humidity_precision: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

  • pm25_calibration: Calibrates the pm25 value (absolute offset), takes into effect on next report of device. The value must be a number.

  • co2_calibration: Calibrates the co2 value (absolute offset), takes into effect on next report of device. The value must be a number.

Exposes

Temperature (numeric)

Measured temperature value. Value can be found in the published state on the temperature property. It's not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Humidity (numeric)

Measured relative humidity. Value can be found in the published state on the humidity property. It's not possible to read (/get) or write (/set) this value. The unit of this value is %.

PM25 (numeric)

Measured PM2.5 (particulate matter) concentration. Value can be found in the published state on the pm25 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is µg/m³.

CO2 (numeric)

The measured CO2 (carbon dioxide) value. Value can be found in the published state on the co2 property. It's not possible to read (/get) or write (/set) this value. The unit of this value is ppm.

Help to make the docu better and edit this page on Github ✌
Last Updated:: 5/9/25, 7:33 PM
